FDK90KXZE1-W/A PANEL AND FAN ASSY

Name: FDK90KXZE1-W/A PANEL AND FAN ASSY
SKU: FDK90KXZE1-W/A PANEL AND FAN ASSY
Availability: InStock

FDK90KXZE1-W/A PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

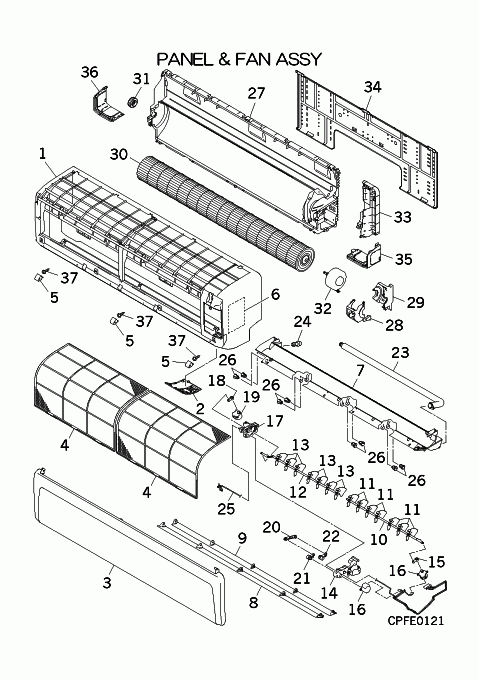

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

RLD122A001B

PANEL,FRONT

Notes: ?

[1-6] Contact

PHA102A401F

PANEL ASSY,FRONT

Contact

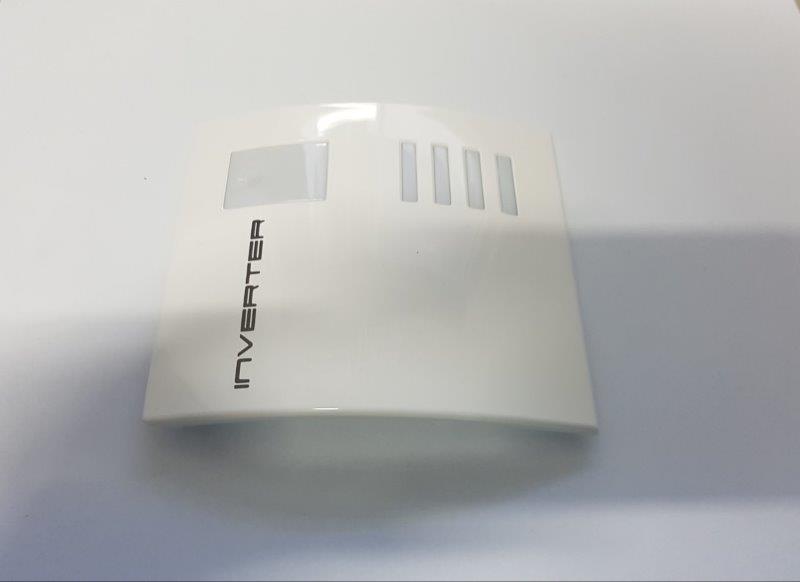

[2] Contact

RLD133A001L

PLATE ASSY,ORNAMEN

Contact

[3] In Stock

RLD435A003T

PANEL ASSY,AIR IN

Notes: Air Inlet Panel / Filter Panel

[4] In Stock

RLD437A001

FILTER,AIR

Notes: W507.5xH401.5(t2), RETURN AIR / DUST FILTER - THIS MODEL HAS 2 - SOLD INDIVIDUALLY

[5] In Stock

RLD129A007

CAP

Show Image

[6] Contact

PHA011G402C

LABEL,WIRING

Contact

[7] In Stock

RLD435A001C

GRILLE ASSY, AIR OUT

Notes: ?, INCLUDES DRIP/CONDENSATE TRAY ALL LOUVERS, LOUVER HARNESSS AND LOUVER MOTORS

[7-26] Contact

PHA435A401A

GRILLE ASSY,AIR OU

Contact

[8] In Stock

RLD436A005B

FLAP(U)

Notes: Upper

[9] In Stock

RLD436A006C

FLAP(L)

Notes: LOWER HORIZONTAL FLAP

[10] Contact

RLD129A010

PLATE,CONNECTING(R)

Contact

Notes: ?

[10-11] In Stock

RLD436A003

LOUVER ASSY (R )

Notes: INCLUDES 7x LOUVER BLADES AND A CONNECTING PLATE - RIGHT SIDE/ LENGTH 56CM Show Image

[11] In Stock

RLD436A007

LOUVER

Notes: ?, SOLD INDIVIDUALLY Show Image

[12] Contact

RLD129A011

PLATE,CONNECTING(L)

Contact

Notes: ?

[12-13] In Stock

RLD436A004

LOUVER ASSY(L)

Notes: INCLUDES 7x LOUVER BLADES AND A CONNECTING PLATE - LEFT SIDE

[13] In Stock

RLD436A007

LOUVER

Notes: ?, SOLD INDIVIDUALLY Show Image

[14] In Stock

RLD129A014A

BRACKET,MOTOR(R)

Notes: ?

[14-16] Contact

PHA129A404

BRACKET ASSY(R)

Contact

[15] In Stock

RLB144A005

CRANK(C)

Notes: ?, LENGTH 2CM Show Image

[16] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP,LOUVER(RIGHT) Show Image

[17] In Stock

RLD129A015

BRACKET,MOTOR(L)

Notes: ? Show Image

[17-19] Contact

PHA129A405

BRACKET ASSY(L)

Contact

[18] In Stock

RLB144A005

CRANK(C)

Notes: ?, LENGTH 2CM Show Image

[19] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP,LOUVER(RIGHT) Show Image

[20] In Stock

RLD144A002

LINK

Notes: ?, LENGTH 5CM Show Image

[20-22] In Stock

RLD144A001A

LINK ASSY

Notes: LENGTH 7.5CM Show Image

[21] In Stock

RLD144A003

CRANK(U)

Notes: ? Show Image

[22] In Stock

RLD144A004A

CRANK(L)

Notes: ? Show Image

[23] Contact

SSA423A114A

HOSE,DRAIN

Contact

[24] In Stock

SSA326A047

PLUG

Notes: ?, Plug for condensate/drain tray.

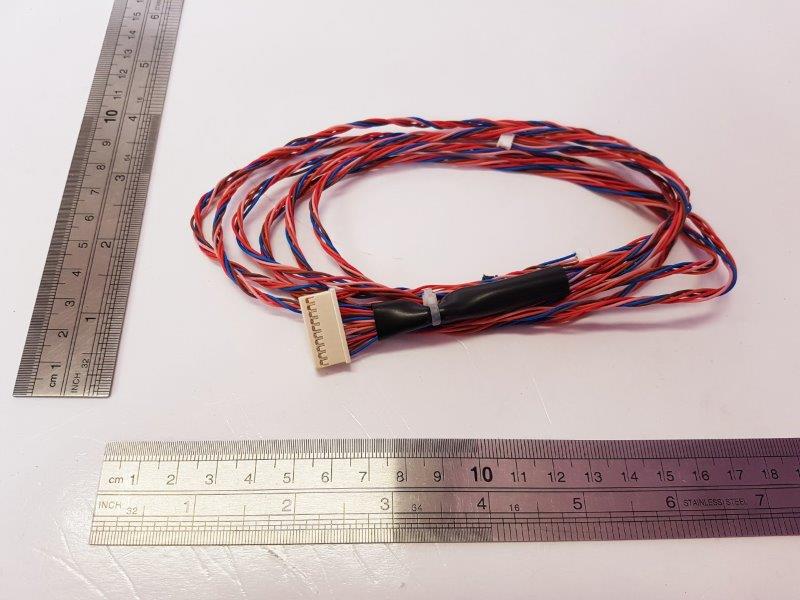

[25] Contact

PHA504A401D

WIRING ASSY(LOUVER

Contact

Notes: LM1 FLAP,LM2 LOUVER(L),LM3 LOUVER(R)- CNJ1 PWB

[26] In Stock

RLD129A021

SHAFT

Notes: secures horizontal up/down flaps onto indoor head unit - SOLD INDIVIDUALLY Show Image

[27] In Stock

RLD111A001C

BASE ASSY

[28] Out of Stock

RLD129A001

CASE,MOTOR(U)

[29] In Stock

RLD129A018

CASE ASSY(L)

[30] In Stock

SSA431G052

IMPELLER

Notes: FAN BARREL / FAN SCROLL

[31] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[32] In Stock

SSA512T099B

MOTOR,DC

Notes: FOR IMPELLER Show Image

[33] In Stock

RLD116A001B

BRACKET,CONTROL

[34] In Stock

RLD032A001

PLATE,INSTALLATION

[35] In Stock

RLD132A001B

LID (R)

Notes: RIGHT SIDE LID Show Image

[36] In Stock

RLD132A002B

LID(L)

Notes: LEFT SIDE LID Show Image

[37] In Stock

SSA913A007

SCREW

Notes: 4x12, 1pc ONLY Show Image
