FDK90KXZE1-W/A HEAT EXCH. AND CONTROL

FDK90KXZE1-W/A HEAT EXCH. AND CONTROL

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-22] PHA301A418A HEAT EXCH ASSY(AIR) Contact   Contact
  • [2] RSA315A006 DISTRIBUTOR Contact Notes: ?   Contact
  • [2-11] PHA315A408 DISTRIBUTOR ASSY Contact   Contact
  • [3] SSA357A051B STRAINER In Stock Show Image
  • [4] RLD321A023 PIPE ASSY Contact Notes: ?f2.8xf4.0 L100   Contact
  • [5] PHA315B415 CAPILLARY(2) Contact Notes: ?f2.0xf4.0 L100   Contact
  • [6] PHA315B407 CAPILLARY(3) Contact Notes: ?f2.0xf4.0 L100   Contact
  • [7] PHA315B417 CAPILLARY(4) Contact Notes: ?f2.4xf4.0 L80   Contact
  • [8] PHA315B409 CAPILLARY(5) Contact Notes: ?f3.0xf4.0 L120   Contact
  • [9] PHA315B410 CAPILLARY(6) Contact Notes: ?f3.0xf4.0 L160   Contact
  • [10] PHA315B418 CAPILLARY(7) Contact Notes: ?f2.0xf4.0 L340   Contact
  • [11] PHA315B419 CAPILLARY(8) Contact Notes: ?f2.0xf4.0 L100   Contact
  • [12-13] PHA321A503 PIPING ASSY Contact   Contact
  • [14] SSA387F074B VALVE,BODY(EXP) Contact Notes: SM   Contact
  • [15] PHA315D404A HEADER ASSY,GAS Contact Notes: ?   Contact
  • [16-18] PHA321A509 PIPE ASSY Contact   Contact
  • [17] SSA323F092H UNION,SOLDER Contact Notes: FOR GAS   Contact
  • [18] SSA323F088 UNION(SLD) In Stock Notes: FOR LIQ.
  • [19] RLD129A004 PLATE,BAFFLE Contact   Contact
  • [20] RLD129A005 SEAL(B) Contact   Contact
  • [21] SSA382F228BM COIL, SOLENOID In Stock Notes: FOR SM
  • [22] RLD129A003 BRACKET(L) In Stock Notes: ?
  • [23] RLD142A003C BOX,CONTROL Contact   Contact
  • [23-24] PHA142A401 BOX ASSY,CONTROL In Stock Notes: ?
  • [24] RLD132A005A COVER,CONTROL Contact   Contact
  • [25] PHA129A400 COVER,BEND Contact   Contact
  • [26] PHA505A041AH PWB ASSY Contact Notes: ONLY FOR SUPPLY PARTS   Contact
  • [27] SSA561B702C BLOCK,TERMINAL In Stock Notes: TB1, TB1
  • [28] SSA561B686J BLOCK,TERMINAL Contact Notes: TB2   Contact
  • [29] RLD129A017 HOLDER,DISPLAY In Stock
  • [30] PSA551A001GB SENSOR ASSY In Stock Notes: THI-A
  • [31] SSA551B017C SENSOR(HUMIDITY) In Stock Notes: HUMIDITY SENSOR, HS Show Image
  • [32] PJF551A002A SENSOR ASSY(TEMP) In Stock Notes: THI-R1,2,3, THI-R Show Image
  • [33] PJG504A007J WIRING(TB,POWER) Contact   Contact
  • [34] PJF504A047A WIRING(TB,XY) Contact Notes: TB2 X,TB2 Y- CNB PWB   Contact
  • [35] PHA504A400 WIRING(TB,AB) Contact Notes: TB2 A,TB2 B- CNK1 PWB   Contact
  • [36] PHA504A409 WIRING(FM) Contact Notes: CNM1 PWB- CNF1   Contact
  • [37] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R Show Image
  • [38] RLD142A001 LID,CONTROL Contact   Contact

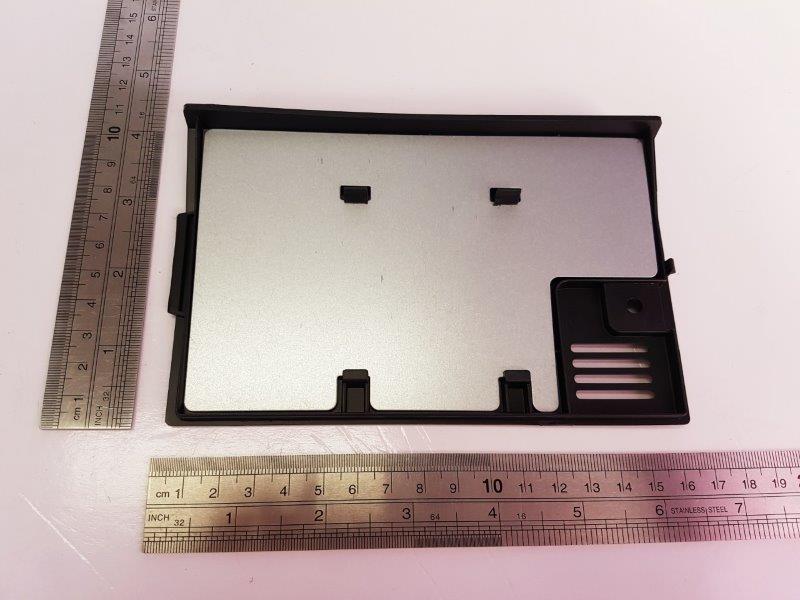

  • [39-40] RLD132A003M LID ASSY(TERMINAL) Contact   Contact
  • [40] RSA011H047D LABEL,NOTICE Contact   Contact
  • [41] PJZ502A031AC ADVANCED WIRED REMOTE Contact Substitute: RC-EXZ3A Notes: ECO TOUCH, RC-EX3A   Contact
  • [42] PHA011F417BH LABEL,MODEL NAME Contact Notes: ?   Contact
SKU: FDK90KXZE1-W/A HEAT EXCH. AND CONTROL
