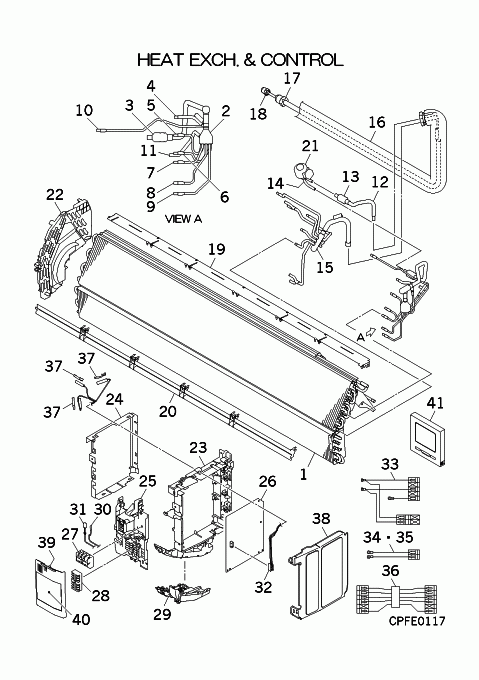

FDK71KXZE1/F HEAT EXCH. AND CONTROL

FDK71KXZE1/F HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-22] In Stock
PHA301A408
HEAT EXCH ASSY(AIR
[2] Contact
RSA315A006
DISTRIBUTOR
Contact
Notes: !
[2-11] Contact
PHA315A404
DISTRIBUTOR ASSY
Contact
[3] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[4] Contact
RLD321A023
PIPE ASSY
Contact
Notes: !D2.8XD4.0 L100
[5] Contact
PHA315B415
CAPILLARY(2)
Contact
Notes: !D2.0XD4.0 L100
[6] Contact
PHA315B407
CAPILLARY(3)
Contact
Notes: !D2.0XD4.0 L100
[7] Contact
PHA315B417
CAPILLARY(4)
Contact
Notes: !D2.4XD4.0 L80
[8] Contact
PHA315B409
CAPILLARY(5)
Contact
Notes: !D3.0XD4.0 L120
[9] Contact
PHA315B410
CAPILLARY(6)
Contact
Notes: !D3.0XD4.0 L160
[10] Contact
PHA315B418
CAPILLARY(7)
Contact
Notes: !D2.0XD4.0 L340
[11] Contact
PHA315B419
CAPILLARY(8)
Contact
Notes: !D2.0XD4.0 L100
[12-13] Contact
PHA321A438
PIPING ASSY
Contact
[13] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[14] In Stock
SSA387F047B
EXP VALVE
Notes: SM, EXPANSION VALVE BODY Show Image
SSA387F047B
[15] Contact
PHA315D404A
HEADER ASSY,GAS
Contact
Notes: !
[16-18] Contact
RLD321A001N
PIPE ASSY
Contact
[17] Contact
SSA323F092H
UNION,SOLDER
Contact
Notes: FOR GAS
[18] In Stock
SSA323F088
UNION(SLD)
Notes: FOR LIQ., LENGTH 2.6CM Show Image
SSA323F088
[19] Contact
RLD129A004
PLATE,BAFFLE
Contact
[20] Contact
RLD129A005
SEAL(B)
Contact
[21] In Stock
SSA382F228BM
COIL, SOLENOID
Notes: FOR SM
[22] In Stock
RLD129A003
BRACKET(L)
Notes: !
[23] Contact
RLD142A003C
BOX,CONTROL
Contact
[23-24] In Stock
PHA142A401
BOX ASSY,CONTROL
Notes: !
[24] Contact
RLD132A005A
COVER,CONTROL
Contact
[25] Contact
PHA129A400
COVER,BEND
Contact
[26] In Stock
PHA505A041AC
PWB ASSY
Notes: ONLY FOR SUPPLY PARTS Show Image
PHA505A041AC
[27] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[28] Contact
SSA561B686J
BLOCK,TERMINAL
Contact
Notes: TB2
[29] In Stock
RLD129A017
HOLDER,DISPLAY
[30] In Stock
PSA551A001GB
SENSOR ASSY
Notes: THI-A, LENGTH 24.8CM Show Image
PSA551A001GB
[31] In Stock
SSA551B017C
SENSOR(HUMIDITY)
Notes: HS, HUMIDITY SENSOR Show Image
SSA551B017C
[32] In Stock
PJF551A002A
SENSOR ASSY(TEMP)
Notes: THI-R, THI-R1,2,3 Show Image
PJF551A002A
[33] In Stock
PJG504A007J
WIRING(TB,POWER)
[34] Out of Stock
PJF504A047A
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB
[35] Contact
PHA504A400
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[36] Contact
PHA504A409
WIRING(FM)
Contact
Notes: CNM1 PWB- CNF1
[37] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[38] In Stock
RLD142A001
LID,CONTROL
[39-40] Contact
RLD132A003D
LID ASSY(TERMINAL)
Contact
[40] Contact
RSA011H047D
LABEL,NOTICE
Contact
[41] Contact
PJZ502A031AC
Advanced Wired Remote
Contact
Substitute: RC-EXZ3A Notes: RC-EX3A, SALES ITEM - ECO TOUCH
[42] Contact
PHA011F412G
LABEL,MODEL NAME
Contact
Notes: !
