FDK56KXZE1/F PANEL AND FAN ASSY

FDK56KXZE1/F PANEL AND FAN ASSY

Available Parts

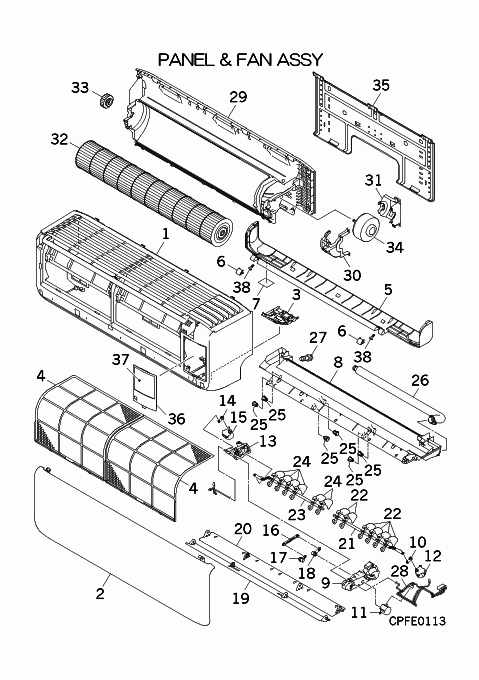

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RLF122A102G PANEL ASSY,FRONT Contact Notes: !   Contact
  • [1-4] PHA102A400D PANEL ASSY,FRONT Contact   Contact
  • [2] RLF435A101C PANEL ASSY,AIR IN In Stock Notes: AIR INLET PANEL / FILTER COVER FOR HINGE/CLIPS: LEFT = RLF129A109 / RIGHT = RLF129A108
  • [3] RLF133A100D PLATE ASSY,ORNAMEN Contact   Contact
  • [4] RLF437A100 FILTER,AIR In Stock Substitute: RLF437A100A Notes: W342.5XH346.5( 2)
  • [5] RLF129A100A PANEL, BOTTOM In Stock
  • [5-7] RLF102A101J PANEL ASSY,BOTTOM Contact   Contact
  • [6] RLF129A110B CAP In Stock
  • [7] RSA011H054B LABEL,NOTICE Contact   Contact
  • [8] RLF435A105 GRILLE, AIR OUT In Stock Substitute: RLF435A104 Notes: USE RLF435A104, !
  • [8-28] PHA435A400A GRILLE ASSY,AIR OU Contact   Contact
  • [9] RLF129A113 BRACKET,MOTOR(R) In Stock Notes: !
  • [9-12] PHA129A402 BRACKET ASSY(R) Contact   Contact
  • [10] RKW144A204 CRANK(C) In Stock Notes: !
  • [11] SSA512T049 MOTOR,STEPPING In Stock Notes: FOR FLAP -UP AND DOWN / HORIZONTAL LOUVER MOTOR, FOR FLAP Show Image
  • [12] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049 Notes: FOR LOUVER(RIGHT)
  • [13] RLF129A114 BRACKET,MOTOR(L) In Stock Notes: !
  • [13-15] PHA129A403 BRACKET ASSY(L) Contact   Contact
  • [14] RKW144A204 CRANK(C) In Stock Notes: !
  • [15] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049 Notes: FOR LOUVER(LEFT)
  • [16] RLF144A101 LINK In Stock Notes: !
  • [16-18] RLF144A100 LINK ASSY In Stock
  • [17] RLF144A102 CRANK U In Stock Notes: !
  • [18] RLF144A103 CRANK L In Stock Notes: !
  • [19] RLF436A100A FLAP(U) In Stock Notes: UPPER HORIZONTAL FLAP, UPPER
  • [20] RLF436A101A FLAP(L) In Stock Notes: LOWER HORIZONTAL FLAP, LOWER
  • [21] RLF129A115 PLATE,CONNECTING(R) Contact Notes: !   Contact
  • [21-22] RLF436A102 LOUVER ASSY (RIGHT) In Stock Notes: INCLUDES 6 LOUVER BLADES/FINS AND CONNECTING ROD - RIGHT SIDE ONLY Show Image
  • [22] RLF436A104 LOUVER In Stock Notes: ! Show Image
  • [23] RLF129A116 PLATE,CONNECTING(L) Contact Notes: !   Contact
  • [23-24] RLF436A103 LOUVER ASSY (LEFT) In Stock Notes: INCLUDES 6 LOUVER BLADES/FINS AND CONNECTING ROD - LEFT SIDE ONLY
  • [24] RLF436A104 LOUVER In Stock Notes: ! Show Image
  • [25] RLD129A021 SHAFT In Stock Notes: LOCKS HORIZONTAL UP/DOWN LOUVER ONTO INDOOR HEAD UNIT.- SOLD INDIVIDUALLY Show Image
  • [26] SSA423A114 HOSE,DRAIN In Stock
  • [27] SSA326A047 PLUG In Stock Notes: PLUG FOR CONDENSATE/DRAIN TRAY., !
  • [28] PHA504A401C WIRING ASSY(LOUVER Contact Notes: LM1 FLAP,LM2 LOUVER(L),LM3 LOUVER(R)- CNJ1 PWB   Contact
  • [29] RLF111A100D BASE ASSY Contact   Contact
  • [30] RLF129A118 CASE ASSY(U) In Stock
  • [31] RLF129A102 CASE ASSY(L) In Stock
  • [32] SSA431G053 IMPELLER In Stock Notes: BARRELL FAN/FAN SCROLL
  • [33] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING
  • [34] SSA512T126B MOTOR DC In Stock Notes: FOR IMPELLER
  • [35] RLF032A100 PLATE,INSTALLATION In Stock Notes: MOUNTING/INSTALLATION/BACKING PLATE
  • [36-37] RLF132A101A LID ASSY(TERMINAL) Contact   Contact
  • [37] RSA011H047D LABEL,NOTICE Contact   Contact
  • [38] SSA913A007 SCREW In Stock Notes: 1PC ONLY, 4X12 Show Image
