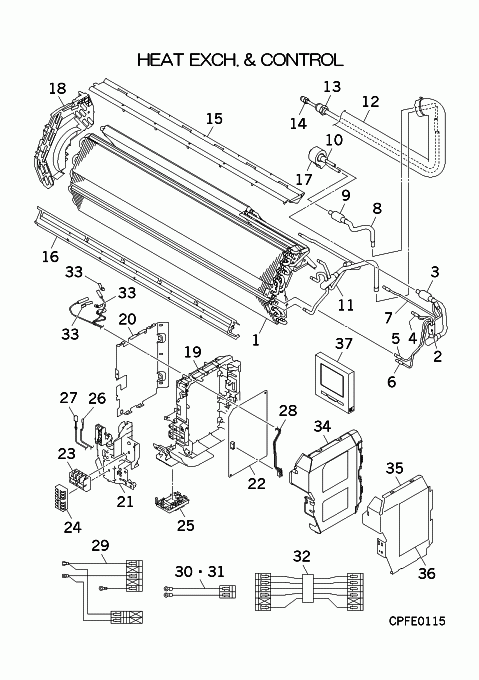

FDK36KXZE1/F HEAT EXCH. AND CONTROL

FDK36KXZE1/F HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-18] In Stock
PHA301A406
HEAT EXCH ASSY(AIR
[2] Contact
RKX315A003
DISTRIBUTOR
Contact
Notes: !
[2-7] Contact
PHA315A403
DISTRIBUTOR ASSY
Contact
[3] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[4] Contact
PHA315B402
CAPILLARY(1)
Contact
Notes: !D3.0XD4.0 L100
[5] Contact
PHA315B403
CAPILLARY(2)
Contact
Notes: !D3.0XD4.0 L200
[6] Contact
PHA315B404
CAPILLARY(3)
Contact
Notes: !D3.0XD4.0 L200
[7] Contact
PHA315B405A
CAPILLARY(4)
Contact
Notes: !D2.0XD4.0 L360
[8-9] Contact
PHA321A437
PIPING ASSY
Contact
[9] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[10] In Stock
SSA387F047
VALVE EXP
Notes: SM, EEV - VALVE BODY Show Image
SSA387F047
[11] Contact
PHA315D403
HEADER ASSY,GAS
Contact
Notes: !
[12-14] Contact
RLF321A001A
PIPE ASSY
Contact
[13] In Stock
SSA323F088B
UNION(SLD)
Notes: FOR GAS, FOR GAS‚ / LENGTH 3.2CM Show Image
SSA323F088B
[14] In Stock
SSA323F088A
UNION(SLD)
Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image
SSA323F088A
[15] Contact
RLF129A105
PLATE,BAFFLE
Contact
[16] In Stock
RLF129A106
SEAL
[17] In Stock
SSA382F228BM
COIL, SOLENOID
Notes: FOR SM
[18] Contact
RLF129A119
BRACKET ASSY(L)
Contact
Notes: !
[19] Contact
RLF142A101
BOX,CONTROL
Contact
[19-20] In Stock
RLF142A100
BOX ASSY CONTROL
Notes: ! Show Image
RLF142A100
[20] Contact
RLF132A100
COVER,CONTROL
Contact
[21] Contact
RLF129A107
COVER,BEND
Contact
[22] In Stock
PHA505A038AC
PWB ASSY
Notes: ONLY FOR SUPPLY PARTS
[23] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[24] Contact
SSA561B686J
BLOCK,TERMINAL
Contact
Notes: TB2
[25] Contact
RLF129A117
HOLDER,DISPLAY
Contact
[26] In Stock
PSA551A001GB
SENSOR ASSY
Notes: THI-A, LENGTH 24.8CM Show Image
PSA551A001GB
[27] In Stock
SSA551B017C
SENSOR(HUMIDITY)
Notes: HS, HUMIDITY SENSOR Show Image
SSA551B017C
[28] In Stock
PJF551A002A
SENSOR ASSY(TEMP)
Notes: THI-R, THI-R1,2,3 Show Image
PJF551A002A
[29] Contact
PJG504A007H
WIRING(TB,POWER)
Contact
[30] Out of Stock
PJF504A047A
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB
[31] Contact
PHA504A400
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[32] In Stock
PHA504A408
WIRING(FM)
Notes: CNM1 PWB- CNF1
[33] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[34] Contact
RLF132A104
LID,CONTROL
Contact
[34-36] In Stock
PHA142A400F
LID ASSY,CONTROL
Notes: !
[35] Contact
RLF142A105
LID,CONTROL
Contact
[36] Contact
PHA011G402C
LABEL,WIRING
Contact
Notes: !
[37] Contact
PJZ502A031AC
Advanced Wired Remote
Contact
Substitute: RC-EXZ3A Notes: RC-EX3A, SALES ITEM - ECO TOUCH
[38] Contact
PHA011F412C
LABEL,MODEL NAME
Contact
Notes: !
SKU: FDK36KXZE1/F HEAT EXCH. AND CONTROL Category:
