FDK22KXZE1/F PANEL AND FAN ASSY

Name: FDK22KXZE1/F PANEL AND FAN ASSY
SKU: FDK22KXZE1/F PANEL AND FAN ASSY
Availability: InStock

FDK22KXZE1/F PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

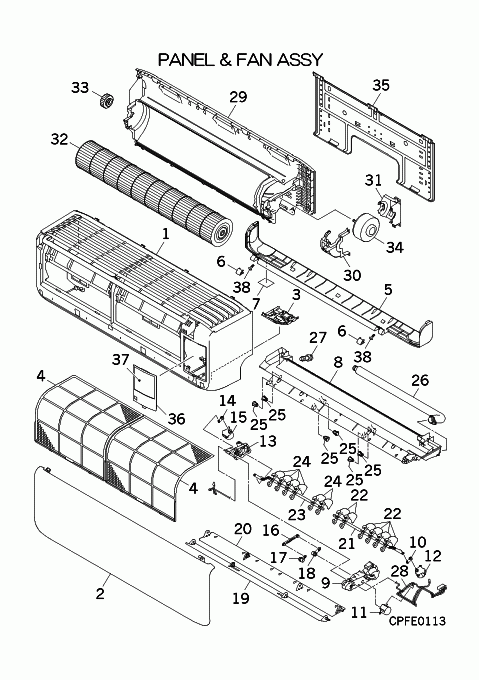

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RLF122A102G

PANEL ASSY,FRONT

Notes: !

[1-4] Contact

PHA102A400D

PANEL ASSY,FRONT

Contact

[2] In Stock

RLF435A101C

PANEL ASSY,AIR IN

Notes: AIR INLET PANEL / FILTER COVER for HINGE/CLIPS: Left = RLF129A109 / Right = RLF129A108

[3] Contact

RLF133A100D

PLATE ASSY,ORNAMEN

Contact

[4] In Stock

RLF437A100

FILTER,AIR

Notes: W342.5XH346.5( 2), 1pc only. LARGER/DUST FILTER. Sold Individually./ LENGTH 40CM

[5] In Stock

RLF129A100A

PANEL, BOTTOM

Notes: LENGTH 85.5CM

[5-7] Contact

RLF102A101J

PANEL ASSY,BOTTOM

Contact

[6] In Stock

RLF129A110B

CAP

Notes: LENGTH 2.1CM Show Image

[7] Contact

RSA011H054B

LABEL,NOTICE

Contact

[8] Out of Stock

RLF435A105

GRILLE, AIR OUT

Notes: !, BASICALLY THE DRAIN PAN AND NOTHING ELSE

[8-28] In Stock

PHA435A400

GRILLE ASSY,AIR OU

[9] In Stock

RLF129A113

BRACKET,MOTOR(R)

Notes: ! Show Image

[9-12] Contact

PHA129A402

BRACKET ASSY(R)

Contact

[10] In Stock

RKW144A204

CRANK(C)

Notes: ! Show Image

[11] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP Show Image

[12] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP Show Image

[13] In Stock

RLF129A114

BRACKET,MOTOR(L)

Notes: ! Show Image

[13-15] Contact

PHA129A403

BRACKET ASSY(L)

Contact

[14] In Stock

RKW144A204

CRANK(C)

Notes: ! Show Image

[15] In Stock

SSA512T158

MOTOR STEPPING

Notes: FOR FLAP Show Image

[16] In Stock

RLF144A101

LINK

Notes: !, LENGTH 6.5CM Show Image

[16-18] In Stock

RLF144A100

LINK ASSY

Notes: LENGTH 9.7CM Show Image

[17] In Stock

RLF144A102

CRANK U

Notes: ! Show Image

[18] Out of Stock

RLF144A103

CRANK L

Notes: !, LENGTH 3CM Show Image

[19] In Stock

RLF436A100A

FLAP(U)

Notes: UPPER, UPPER HORIZONTAL FLAP / LENGTH 66CM

[20] In Stock

RLF436A101A

FLAP(L)

Notes: LOWER, LOWER HORIZONTAL FLAP

[21] Contact

RLF129A115

PLATE,CONNECTING(R)

Contact

Notes: !

[21-22] In Stock

RLF436A102

LOUVER ASSY (RIGHT)

Notes: Includes 6 louver blades/fins and connecting rod - RIGHT side only Show Image

[22] In Stock

RLF436A104

LOUVER

Notes: ! Show Image

[23] Contact

RLF129A116

PLATE,CONNECTING(L)

Contact

Notes: !

[23-24] In Stock

RLF436A103

LOUVER ASSY (LEFT)

Notes: Includes 6 louver blades/fins and connecting rod - LEFT side only Show Image

[24] In Stock

RLF436A104

LOUVER

Notes: ! Show Image

[25] In Stock

RLD129A021

SHAFT

Notes: secures horizontal up/down flaps onto indoor head unit - SOLD INDIVIDUALLY Show Image

[26] In Stock

SSA423A114

HOSE,DRAIN

[27] In Stock

SSA326A047

PLUG

Notes: !, Plug for condensate/drain tray.

[28] Contact

PHA504A401C

WIRING ASSY(LOUVER

Contact

Notes: LM1 FLAP,LM2 LOUVER(L),LM3 LOUVER(R)- CNJ1 PWB

[29] Contact

RLF111A100D

BASE ASSY

Contact

[30] In Stock

RLF129A118

CASE ASSY(U)

Notes: Upper Fan motor housing Show Image

[31] In Stock

RLF129A102

CASE ASSY(L)

Notes: LENGTH 13.5CM - Lower / Rear Fan motor housing

[32] In Stock

SSA431G053

IMPELLER

Notes: BARRELL FAN Show Image

[33] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[34] In Stock

SSA512T126F

MOTOR, DC

Notes: FOR IMPELLER

[35] In Stock

RLF032A100

PLATE,INSTALLATION

Notes: MOUNTING/INSTALLATION/BACKING PLATE

[36-37] Contact

RLF132A101A

LID ASSY(TERMINAL)

Contact

[37] Contact

RSA011H047D

LABEL,NOTICE

Contact

[38] In Stock

SSA913A007

SCREW

Notes: 4X12, 1pc ONLY Show Image

SKU: FDK22KXZE1/F PANEL AND FAN ASSY Category: Uncategorised
