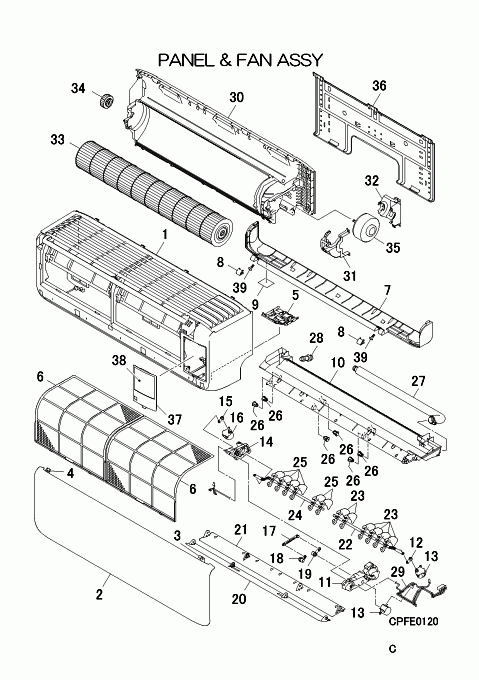

FDK15KXZE3-W/1 PANEL AND FAN ASSY

Name: FDK15KXZE3-W/1 PANEL AND FAN ASSY
SKU: FDK15KXZE3-W/1 PANEL AND FAN ASSY
Availability: InStock

FDK15KXZE3-W/1 PANEL AND FAN ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RLF122A102G

PANEL ASSY,FRONT

Notes: !

[1-6] In Stock

PHA102A400D

PANEL ASSY,FRONT

[2-4] In Stock

RLF435A101C

PANEL ASSY,AIR IN

Notes: Air Inlet Panel / Filter Cover - for HINGE/CLIPS: Left = RLF129A109 / Right = RLF129A108

[3] In Stock

RLF129A108

ARM, INLET (R.)

Notes: HINGE/CLIP - RIGHT SIDE WHEN FACING/LOOKING AT UNIT - Left = RLF129A109/ LENGTH 6.5CM Show Image

[4] In Stock

RLF129A109

ARM, INLET (L)

Notes: HINGE/CLIP - LEFT SIDE WHEN FACING/LOOKING AT UNIT - Right = RLF129A108/ LENGTH 5.5CM Show Image

[5] In Stock

RLF133A100D

PLATE ASSY,ORNAMEN

Show Image

[6] In Stock

RLF437A100

FILTER,AIR

Notes: W342.5XH346.5( 2), 1pc only. LARGER/DUST FILTER. Sold Individually./ LENGTH 40CM

[7] In Stock

RLF129A100A

PANEL, BOTTOM

Notes: LENGTH 85.5CM

[7-9] In Stock

RLF102A101H

PANEL ASSY, BOTTOM

Notes: Bottom Panel with side entries

[8] In Stock

RLF129A110B

CAP

Notes: LENGTH 2.1CM Show Image

[9] Contact

RSA011H054

LABEL,NOTICE

Contact

[10] Out of Stock

RLF435A105

GRILLE, AIR OUT

Notes: OUT OF PRODUCTION - USE 'GRILLE, AIR OUT ASSY'

[10-29] In Stock

PHA435A400A

GRILLE ASSY,AIR OU

[11] In Stock

RLF129A113

BRACKET,MOTOR(R)

Show Image

[11-13] In Stock

PHA129A402

BRACKET ASSY(R)

[12] In Stock

RKW144A204

CRANK(C)

Show Image

[13] In Stock

SSA512T158

MOTOR, STEPPING

Notes: FOR FLAP,LOUVER(RIGHT), Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image

[14] In Stock

RLF129A114

BRACKET,MOTOR(L)

Show Image

[14-16] In Stock

PHA129A403

BRACKET ASSY(L)

[15] In Stock

RKW144A204

CRANK(C)

Show Image

[16] In Stock

SSA512T158

MOTOR, STEPPING

Notes: FOR LOUVER(LEFT), Louver/Flap/Stepping motor - WIRING HARNESSES NOT INCLUDED Show Image

[17] In Stock

RLF144A101

LINK

Notes: LENGTH 6.5CM Show Image

[17-19] In Stock

RLF144A100

LINK ASSY

Notes: LENGTH 9.7CM Show Image

[18] In Stock

RLF144A102

CRANK U

Show Image

[19] In Stock

RLF144A103

CRANK L

Notes: LENGTH 3CM Show Image

[20] In Stock

RLF436A100A

FLAP(U)

Notes: UPPER, UPPER HORIZONTAL FLAP / LENGTH 66CM

[21] In Stock

RLF436A101A

FLAP(L)

Notes: LOWER, Lower Horizontal Flap

[22] Contact

RLF129A115

PLATE,CONNECTING(R)

Contact

Notes: !

[22-23] In Stock

RLF436A102

LOUVER ASSY (RIGHT)

Notes: Includes 6 louver blades/fins and connecting rod - RIGHT side only Show Image

[23] In Stock

RLF436A104

LOUVER

Notes: ! Show Image

[24] Contact

RLF129A116

PLATE,CONNECTING(L)

Contact

Notes: !

[24-25] In Stock

RLF436A103

LOUVER ASSY (LEFT)

Notes: Includes 6 louver blades/fins and connecting rod - LEFT side only Show Image

[25] In Stock

RLF436A104

LOUVER

Notes: ! Show Image

[26] In Stock

RLD129A021

SHAFT

Notes: secures horizontal up/down flaps onto indoor head unit - SOLD INDIVIDUALLY Show Image

[27] In Stock

SSA423A114

DRAIN HOSE

[28] In Stock

SSA326A047

PLUG

Notes: Plug for condensate/drain tray

[29] In Stock

PHA504A401C

WIRING ASSY(LOUVER)

Notes: LM1 FLAP,LM2 LOUVER(L),LM3 LOUVER(R)- CNJ1 PWB Show Image

[30] In Stock

RLF111A100D

BASE ASSY

[31] In Stock

RLF129A118

CASE ASSY(U)

Notes: Upper Fan motor housing Show Image

[32] In Stock

RLF129A102

CASE ASSY(L)

Notes: LENGTH 13.5CM - Lower / Rear Fan motor housing

[33] In Stock

SSA431G053D

IMPELLER

Notes: BARRELL FAN

[34] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[35] Out of Stock

SSA512T126F

MOTOR, DC

Notes: FOR IMPELLER

[36] In Stock

RLF032A100

PLATE,INSTALLATION

Notes: MOUNTING/INSTALLATION/BACKING PLATE

[37-38] In Stock

RLF132A101J

LID ASSY(TERMINAL)

Show Image

[38] Contact

RSA011H047D

LABEL,NOTICE

Contact

[39] In Stock

SSA913A007

SCREW

Notes: 4X12, 1pc ONLY Show Image
