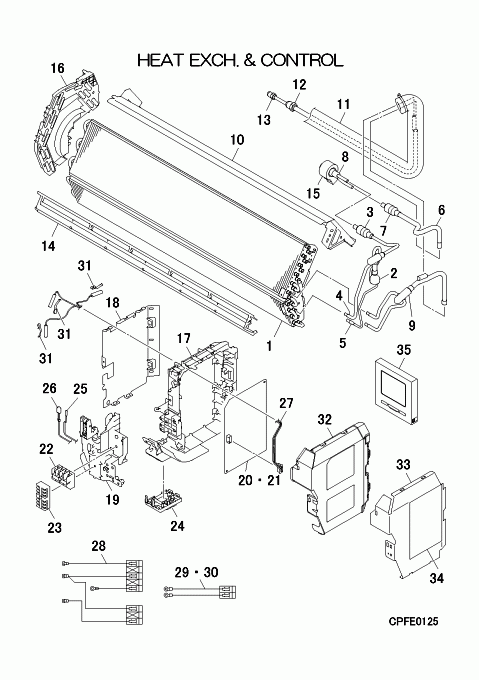

FDK15KXZE3-W/1 HEAT EXCH. AND CONTROL

FDK15KXZE3-W/1 HEAT EXCH. AND CONTROL

FDK15KXZE3-W/1 HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-16] Contact
PHA301A420A
HEAT EXCH ASSY(AIR
Contact
[2] Contact
RSA315A004B
DISTRIBUTOR
Contact
Notes: !
[2-5] Contact
PHA315A411A
DISTRIBUTOR ASSY
Contact
Notes: !
[3] In Stock
SSA357A059AC
STRAINER
[4] Contact
PHA315B421
CAPILLARY(1)
Contact
Notes: !D2.8XD4.0 L110
[5] Contact
PHA315B422
CAPILLARY(2)
Contact
Notes: !D2.8XD4.0 L160
[6-7] Contact
PHA321A514
PIPING ASSY
Contact
[7] In Stock
SSA357A059A
STRAINER
Show Image
SSA357A059A
[8] In Stock
SSA387F078
VALVE, BODY(EXP)
Notes: SM, Expansion Valve Body - LENGTH 7.7CM Show Image
SSA387F078
[9] Contact
PHA315D408
HEADER ASSY,GAS
Contact
Notes: !
[10] Contact
PHA141A403
PLATE ASSY,BAFFLE
Contact
[11-13] Contact
RLF321A001
PIPE ASSY
Contact
[12] In Stock
SSA323F091
UNION(SLD)
Notes: FOR GAS
[13] In Stock
SSA323F088A
UNION(SLD)
Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image
SSA323F088A
[14] In Stock
RLF129A106
SEAL
[15] Out of Stock
SSA382F228BM
COIL, SOLENOID
Notes: FOR SM
[16] Contact
RLF129A119
BRACKET ASSY(L)
Contact
Notes: !
[17] In Stock
RLF142A101
BOX,CONTROL
[17-18] In Stock
RLF142A100
BOX ASSY CONTROL
Notes: ! Show Image
RLF142A100
[18] In Stock
RLF132A100
COVER,CONTROL
[19] Contact
RLF129A107A
COVER,BEND
Contact
[20-21] Contact
PHA505A038AJ
PWB ASSY
Contact
Notes: ONLY FOR SUPPLY PARTS
[21] In Stock
SSA564A132
FUSE(CURRENT)
Notes: F1 3.15A, 3.15A Show Image
SSA564A132
[22] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: TB1, T2 Show Image
SSA561B702B

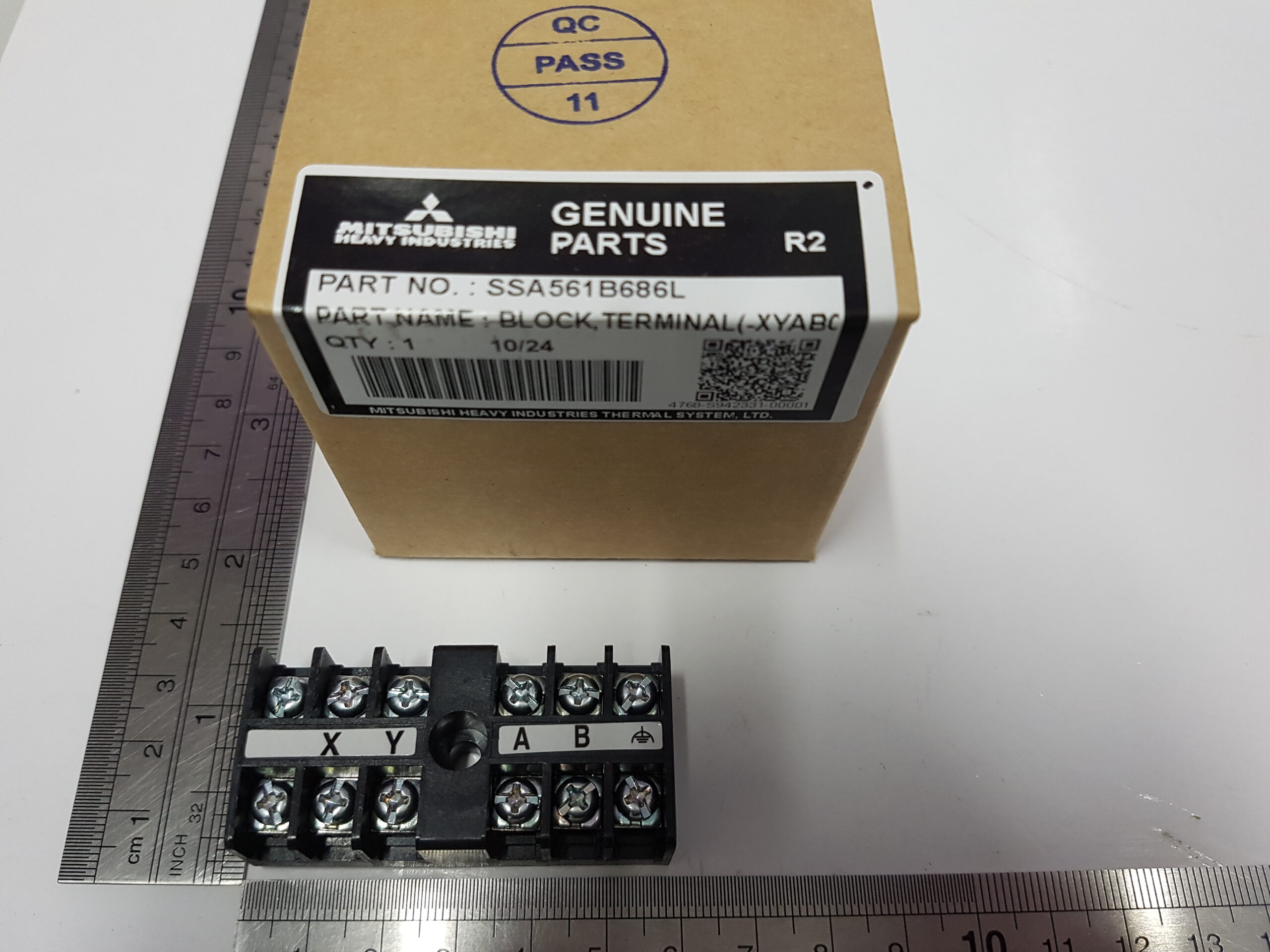

[23] In Stock
SSA561B686L
BLOCK, TERMINAL
Notes: TB2 Show Image
SSA561B686L
[24] In Stock
RLF129A117
HOLDER,DISPLAY
[25] In Stock
PSA551A001GB
SENSOR ASSY
Notes: THI-A, LENGTH 24.8CM Show Image
PSA551A001GB
[26] In Stock
SSA551B017C
SENSOR(HUMIDITY)
Notes: HS, HUMIDITY SENSOR Show Image
SSA551B017C
[27] Out of Stock
PJF551A002A
SENSOR ASSY(TEMP)
Notes: THI-R, THI-R1,2,3 Show Image
PJF551A002A
[28] Contact
PJF504A036W
WIRING(TB,POWER)
Contact
[29] In Stock
PJF504A047A
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB Show Image
PJF504A047A
[30] In Stock
PHA504A400
WIRING(TB,AB)
Notes: TB2 A,TB2 B- CNK1 PWB Show Image
PHA504A400
[31] In Stock
PSA941F001
SPRING LEAF
Notes: FOR THI-R, 1pc ONLY Show Image
PSA941F001
[32] In Stock
RLF132A104
LID,CONTROL
[32-34] Contact
PHA142A400S
LID ASSY,CONTROL
Contact
Notes: !
[33] In Stock
RLF142A105
LID,CONTROL
[34] Contact
PHA011G406A
LABEL,WIRING
Contact
Notes: !
[35] Contact
PJZ502A031AH
CONTROL ASSY,REMOT
Contact
Notes: !RC-EX3D
[36] Contact
PHA011F420J
LABEL,MODEL NAME
Contact
Notes: !
