FDFW56KXZE3-W/1 HEAT EXCH. AND FAN

Name: FDFW56KXZE3-W/1 HEAT EXCH. AND FAN
SKU: FDFW56KXZE3-W/1 HEAT EXCH. AND FAN
Availability: InStock

FDFW56KXZE3-W/1 HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

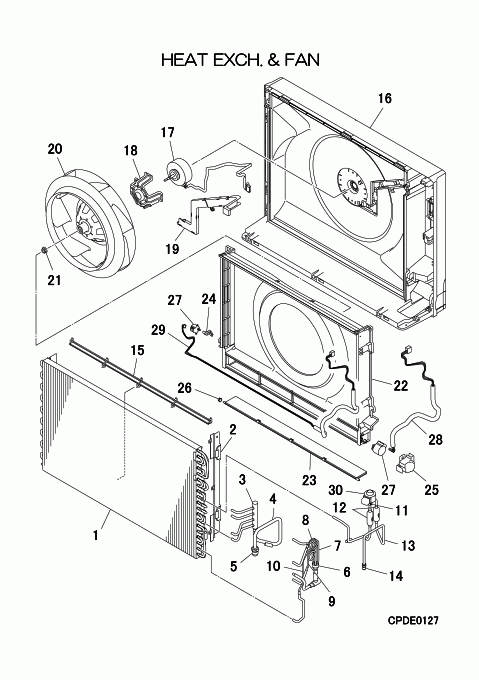

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

RFB311A001

HEAT EXCH(AIR)

Contact

Notes: !

[1-14] Contact

PGF301A004A

HEAT EXCH ASSY(AIR

Contact

[2] Contact

RFB116A003

BRACKET,EX(R)

Contact

[3-5] Contact

PGF315D001A

HEADER ASSY

Contact

Notes: !

[4-5] Contact

RFB321A034A

PIPE ASSY(GAS)

Contact

[5] Contact

SSA323F091B

UNION (SLD)

Contact

Notes: FOR GAS

[6] Contact

RSA315A004

DISTRIBUTOR

Contact

Notes: !

[6-10] Contact

RFB315A002

DISTRIBUTOR ASSY

Contact

[7] Contact

RFB315B003

CAPILLARY

Contact

Notes: !D2.8XD4.0 L250

[8] Contact

RFB315B004

CAPILLARY

Contact

Notes: !D2.8XD4.0 L250

[9] Contact

RFB315B005

CAPILLARY

Contact

Notes: !D2.8XD4.0 L250

[10] Contact

RFB315B006

CAPILLARY

Contact

Notes: !D2.8XD4.0 L250

[11] In Stock

SSA387F086

VALVE,BODY(EXP)

[12] In Stock

SSA357A005A

STRAINER

Show Image

[13-14] Contact

PGF321A014

PIPE ASSY(LIQUID)

Contact

[14] Contact

SSA323F091A

UNION (SLD)

Contact

Notes: FOR LIQ.

[15] Contact

RFB129A004

GUIDE,DRAIN

Contact

[16] Contact

RFB111A001B

BASE ASSY

Contact

[17] In Stock

SSA512T118

MOTOR, DC

Notes: FOR FAN

[18] In Stock

RFB116A004

BRACKET ASSY,MOTOR

Show Image

[19] Contact

RFB129A001B

COVER,HARNESS

Contact

[20] In Stock

SSA431J023

FAN TURBO

[21] In Stock

SSA914B007AC

NUT TH

Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image

[22] Contact

RFB433A003B

BELLMOUTH ASSY

Contact

[23] In Stock

RFB434A001

DAMPER ASSY

[24] In Stock

RFB129A012

ARM,DAMPER

Show Image

[25] Contact

RFB129A003

COVER,MOTOR(A)

Contact

[26] In Stock

RKW935C200

COLLAR

Notes: ***SOLD INDIVIDUALLY***

[27] In Stock

SSA512T158

MOTOR, STEPPING

Notes: FOR DAMPER,DAMPER ARM, UP/DOWN/LEFT/RIGHT MOTOR. Louver/Flap/Stepping motor - WIRING HARNESSES SOLD SEPERATELY Show Image

[28] Contact

RFB504A001F

HARNESS ASSY

Contact

Notes: FOR MOTOR,DAMPER

[29] Contact

RFB504A001G

HARNESS ASSY

Contact

Notes: FOR MOTOR,DAMPER ARM

[30] Contact

SSA382F228

COIL,SOLENOID

Contact

SKU: FDFW56KXZE3-W/1 HEAT EXCH. AND FAN Category: Uncategorised
