FDFW45KXZE3-W/1 CONTROL AND PARTS SET

FDFW45KXZE3-W/1 CONTROL AND PARTS SET

FDFW45KXZE3-W/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

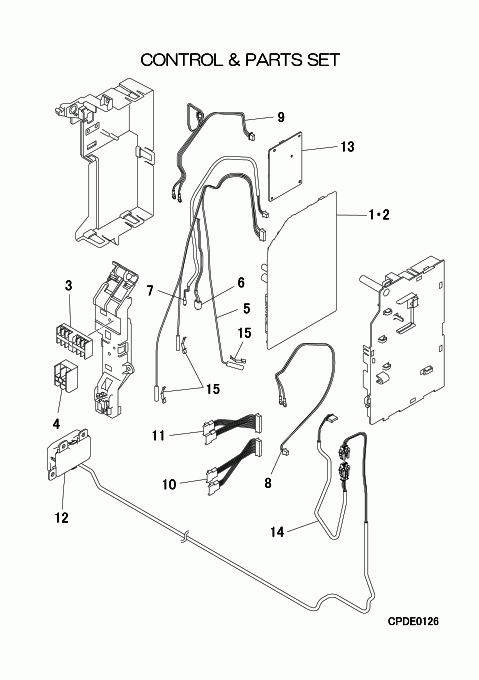

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-14] Contact
PGF501A006F
CONTROL UNIT
Contact
Notes: !
[1-2] Contact
PJA505A210F
PWB ASSY
Contact
Notes: ONLY FOR SUPPLY PARTS
[2] In Stock
SSA564A149ZA
FUSE(CURRENT)
Notes: F1 1A Show Image
SSA564A149ZA
[3] Contact
SSA561B686M
BLOCK,TERMINAL
Contact
Notes: TB1
[4] Contact
SSA561B683C
BLOCK,TERMINAL
Contact
Notes: TB2
[5] Contact
PSA551A042AC
SENSOR ASSY(TEMP)
Contact
Notes: THI-R1,2,3
[6] In Stock
SSA551B017B
SENSOR(HUMIDITY)
Notes: HS, LENGTH 52.5CM Show Image
SSA551B017B
[7] In Stock
PSA551A001B
SENSOR ASSY
Notes: THI-A Show Image
PSA551A001B
[8] Contact
PJF504A010B
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB, TB2 A,TB2 B-CNK1 PWB
[9] Contact
PSA504A049
WIRING(TB,XY-I/F)
Contact
Notes: TB2 X,TB2 Y- CNB,CNB1
[10] Contact
RFB504A003
HARNESS ASSY(DAMP)
Contact
Notes: SM3,SM4- PWB CNX1
[11] In Stock
RFB504A004
HARNESS ASSY(FLAP)
Notes: SM2,SM1- PWB CNX2 Show Image
RFB504A004
[12] Contact
PSA551F003A
SENSOR ASSY(REF)
Contact
[13] Contact
PJZ505A067F
PWB ASSY(I/F)
Contact
[14] Contact
PGF504A001A
WIRING(I/F)
Contact
Notes: CNRS- CNV1
[15] In Stock
PSA941F001
SPRING LEAF
Notes: 1pc ONLY Show Image
PSA941F001
[16] Contact
PGF011F005D
LABEL,MODEL NAME
Contact
Notes: !
