FDFW28KXZE3-W/1 HEAT EXCH. AND FAN

FDFW28KXZE3-W/1 HEAT EXCH. AND FAN

FDFW28KXZE3-W/1 HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

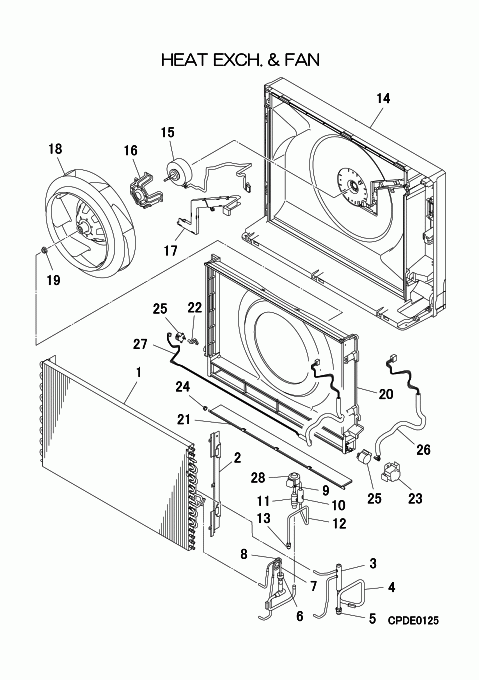

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RFB311A002C
HEAT EXCH(AIR)
Contact
Notes: !
[1-13] Contact
PGF301A006A
HEAT EXCH ASSY(AIR
Contact
[2] Contact
RFB116A003
BRACKET,EX(R)
Contact
[3-5] Contact
PGF315D003
HEADER ASSY
Contact
Notes: !
[4-5] Contact
RFB321A034
PIPE ASSY(GAS)
Contact
[5] In Stock
SSA323F091
UNION(SLD)
Notes: FOR GAS
[6] Contact
RSA315A004B
DISTRIBUTOR
Contact
Notes: !
[6-8] Contact
PGF315A002
DISTRIBUTOR ASSY
Contact
[7] Contact
PGF315B001
CAPILLARY
Contact
Notes: !D2.8XD4.0 L250
[8] Contact
PGF315B002
CAPILLARY
Contact
Notes: !D2.8XD4.0 L250
[9] In Stock
SSA387F086
VALVE,BODY(EXP)
[10] In Stock
SSA357A005A
STRAINER
Show Image
SSA357A005A
[11] In Stock
SSA357A005C
STRAINER
Show Image
SSA357A005C
[12-13] Contact
PGF321A014
PIPE ASSY(LIQUID)
Contact
[13] Contact
SSA323F091A
UNION (SLD)
Contact
Notes: FOR LIQ.
[14] Contact
RFB111A001B
BASE ASSY
Contact
[15] In Stock
SSA512T118
MOTOR, DC
Notes: FOR FAN
[16] In Stock
RFB116A004
BRACKET ASSY,MOTOR
Show Image
RFB116A004
[17] Contact
RFB129A001B
COVER,HARNESS
Contact
[18] In Stock
SSA431J023
FAN TURBO
[19] In Stock
SSA914B007AC
NUT TH
Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
SSA914B007AC
[20] Contact
RFB433A003B
BELLMOUTH ASSY
Contact
[21] In Stock
RFB434A001
DAMPER ASSY
[22] In Stock
RFB129A012
ARM,DAMPER
Show Image
RFB129A012
[23] Contact
RFB129A003
COVER,MOTOR(A)
Contact
[24] In Stock
RKW935C200
COLLAR
Notes: ***SOLD INDIVIDUALLY***
[25] In Stock
SSA512T158
MOTOR, STEPPING
Notes: FOR DAMPER,DAMPER ARM, UP/DOWN/LEFT/RIGHT MOTOR. Louver/Flap/Stepping motor - WIRING HARNESSES SOLD SEPERATELY Show Image
SSA512T158
[26] Contact
RFB504A001F
HARNESS ASSY
Contact
Notes: FOR MOTOR,DAMPER
[27] Contact
RFB504A001G
HARNESS ASSY
Contact
Notes: FOR MOTOR,DAMPER ARM
[28] Contact
SSA382F228
COIL,SOLENOID
Contact
