FDFU71KXE6 PANEL AND HEAT EXCH.

FDFU71KXE6 PANEL AND HEAT EXCH.

FDFU71KXE6 PANEL AND HEAT EXCH.

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

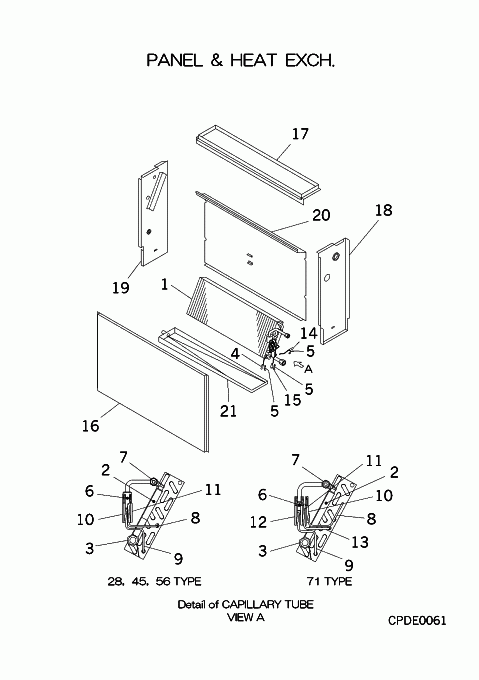

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PFA311A212A
HEAT EXCH
Contact
[1-15] Contact
PFA311A614J
HEAT EXCH ASSY(AIR
Contact
[2-3] Contact
PFA315D204V
HEADER ASSY
Contact
[3] Contact
SSA323F012C
UNION,SOLDER
Contact
[4] Out of Stock
PJA551A005A
SENSOR
Notes: THI-R1
[5] In Stock
PSA941F001
SPRING LEAF
Notes: FOR THI-R, 1pc ONLY Show Image
PSA941F001
[6] In Stock
SSA315A252B
DISTRIBUTOR
Show Image
SSA315A252B
[6-13] Contact
PFA315B299H
CAPILLARY ASSY
Contact
[7] Contact
SSA323F012A
UNION
Contact
[8] Contact
PFA315B316
CAPILLARY
Contact
Notes: !D1.5XD2.5 L150
[9] Contact
PFA315B312
CAPILARY,AS
Contact
Notes: !D1.5XD2.5 L150
[10] Contact
PFA315B313A
CAPILARY,AS
Contact
Notes: !D2.6XD4.0 L135
[11] Contact
PFA315B317
CAPILLARY,SUB
Contact
Notes: !D2.6XD4.0 L125
[12] Contact
PFA315B318
CAPILLARY,SUB
Contact
Notes: !D2.6XD4.0 L145
[13] Contact
PFA315B315
CAPILLARY
Contact
Notes: !D1.5XD2.5 L150
[14] Contact
PJA551A005BG
SENSOR
Contact
Notes: THI-R2, OUT OF PRODUCTION
[15] Out of Stock
PSA551A007J
SENSOR ASSY(TEMP)
Notes: THI-R3
[16] Contact
PFA122A216A
PANEL FRONT
Contact
[17] In Stock
PFA435A205A
GRILLE
[18] Contact
PFA123A204A
PANEL ASSY,SIDE(R)
Contact
Notes: RIGHT
[19] Contact
PFA123A205A
PANEL ASSY,SIDE(L)
Contact
Notes: LEFT
[20] Contact
PFA125A202C
PANEL,REAR
Contact
[21] In Stock
PFA454A220A
PAN,DRAIN
SKU: FDFU71KXE6 PANEL AND HEAT EXCH. Category:
