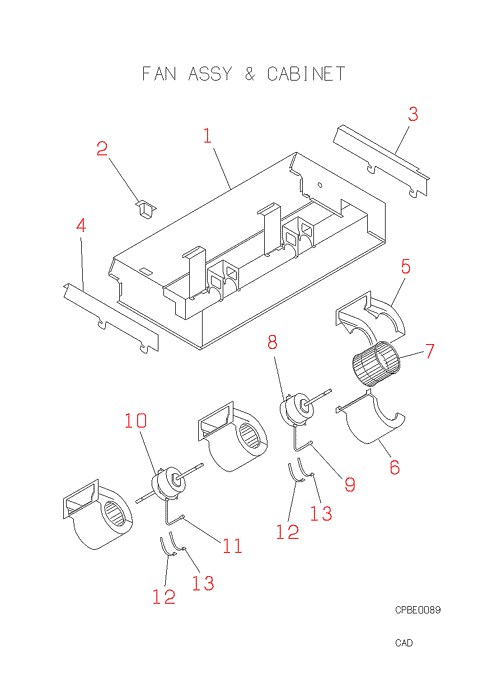

FDEN408H FAN ASSY AND CABINET

FDEN408H FAN ASSY AND CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact
PFA121A200B
CABINET
Contact
[2] Contact
PFA153C001
CAP
Contact
[3] Contact
PFA032A200B
HOLDER
Contact
Notes: RIGHT
[4] Contact
PFA032A200C
HOLDER
Contact
Notes: LEFT
[5] In Stock
PFA433B202
CASING
Notes: UPPER
[6] In Stock
PFA433B203A
CASING L
Notes: LOWER
[7] In Stock
SSA431D032A
IMPELLER
[8-9] In Stock
SSA511A307K
MOTOR
Notes: RIGHT
[9] Contact
SSA552A048
CAPACITOR
Contact
Substitute: SSA552A143D
[10-11] In Stock
SSA511A306K
MOTOR
Notes: OUT OF PRODUCTION
[11] Contact
SSA552A049
CAPACITOR
Contact
Substitute: PSA552A005B
[12] In Stock
PFA116A207B
BRACKET, MOTOR
Notes: RIGHT, LEFT Show Image
PFA116A207B
[13] In Stock
PFA116A207C
BRACKET, MOTOR
Notes: LEFT Show Image
PFA116A207C
