FDEA56KXE4 HEAT EXCH. ASSY

FDEA56KXE4 HEAT EXCH. ASSY

Available Parts

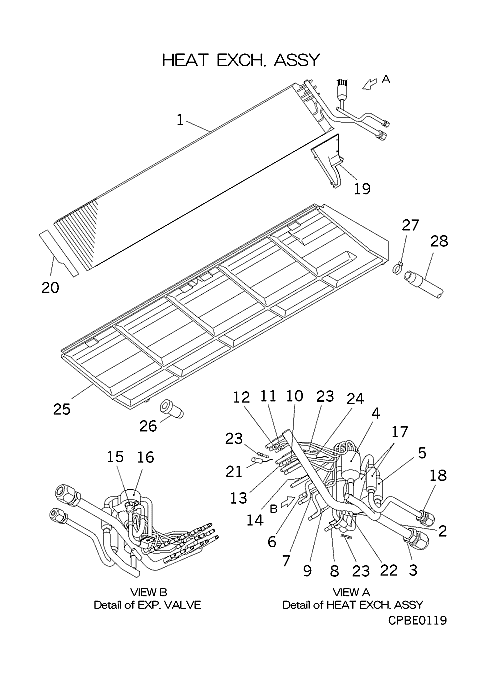

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PFA311A603A HEAT EXCH(AIR) Contact   Contact
  • [1-24] PFA301A606 HEAT EXCH A Contact   Contact
  • [2-3] PFA315D603C   Contact   Contact
  • [3] SSA323F012G UNION,SOLDER Contact   Contact
  • [4] PJA315A703H DISTRIBUTOR Contact   Contact
  • [4-14] PFA315A608 DISTRIBUTOR Contact   Contact
  • [5] SSA357A005T STRAINER In Stock
  • [6] PFA315B720A CAPILLARY Contact Notes: !D3.0XD4.0 L170, !D3.0XD4.0 L170   Contact
  • [7] PFA315B721A CAPILLARY Contact Notes: !D2.8XD4.0 L140, !D2.8XD4.0 L140   Contact
  • [8] PFA315B722A CAPILLARY Contact Notes: !D3.0XD4.0 L220, !D3.0XD4.0 L220   Contact
  • [9] PFA315B729 CAPILLARY Contact Notes: !D3.0XD4.0 L210, !D3.0XD4.0 L210   Contact
  • [10] PFA315B724A CAPILLARY Contact Notes: !D3.0XD4.0 L200, !D3.0XD4.0 L200   Contact
  • [11] PFA315B725A CAPILLARY Contact Notes: !D3.0XD4.0 L190, !D3.0XD4.0 L190   Contact
  • [12] PFA315B726A CAPILLARY Contact Notes: !D2.4XD4.0 L190, !D2.4XD4.0 L190   Contact
  • [13] PFA315B727A CAPILLARY Contact Notes: !D2.8XD4.0 L170, !D2.8XD4.0 L170   Contact
  • [14] PFA315B728A CAPILLARY Contact Notes: !D2.8XD4.0 L130, !D2.8XD4.0 L130   Contact
  • [15] SSA387F047 VALVE EXPA In Stock Notes: EEV - VALVE BODY, SM Show Image
  • [16] SSA382F210H COIL In Stock Notes: FOR SM
  • [17] SSA357A005B STRAINER In Stock Show Image
  • [18] SSA323F075 UNION Contact   Contact
  • [19] PFA141A606 PLATE ASSY Contact   Contact
  • [20] PFA141A607 PLATE ASSY Contact   Contact
  • [21] PJA551A005AP SENSOR In Stock Notes: THI-R1, THI-R1 Show Image
  • [22] PJA551A005BP SENSOR(TEMP Contact Notes: THI-R3   Contact
  • [23] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R Show Image
  • [24] PJA551A005BM SENSOR Contact Notes: THI-R2   Contact
  • [25-26] PFA454A607 DRAIN PAN Contact   Contact
  • [26] SSA326A003F PLUG In Stock Show Image
  • [27] V300Y30 CLAMP In Stock
  • [28] SSA423A060F HOSE Contact Substitute: PFA423A200D   Contact
SKU: FDEA56KXE4 HEAT EXCH. ASSY Category:
