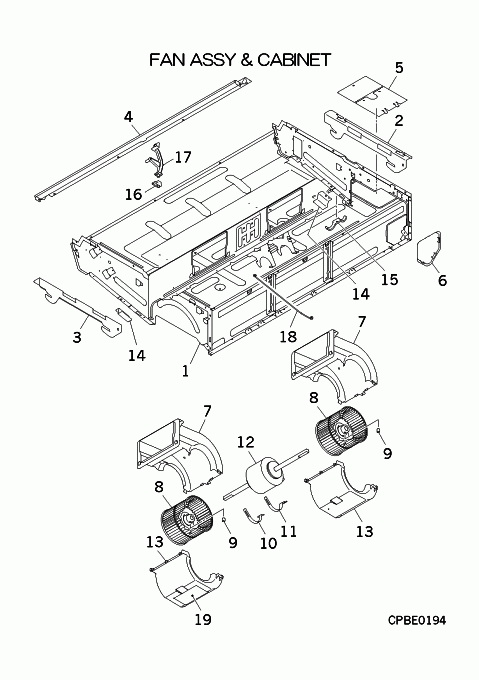

FDE56KXZE1/F FAN ASSY AND CABINET

FDE56KXZE1/F FAN ASSY AND CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-6] Contact
PFA100A606
CABINET ASSY
Contact
Notes: !
[2] In Stock
PFA032A600B
HOLDER
Notes: RIGHT
[3] In Stock
PFA032A600C
HOLDER
Notes: LEFT
[4] In Stock
PFA122A608B
PANEL FRONT
[5] In Stock
PFA132A603
LID
Show Image
PFA132A603
[6] In Stock
PFA132A601
LID U
[7] Contact
PFA433B607
CASING(U)
Contact
Notes: UPPER
[8-9] In Stock
SSA431D097A
IMPELLER
[9] Contact
SSA912F015
SET,SCREW(SCH-CP)
Contact
Notes: M6X8, 1pc ONLY
[10] Out of Stock
PJG116A063
BRACKET(MOTOR)
Notes: LEFT Show Image
PJG116A063
[11] In Stock
PFA116A207H
BRACKET
Notes: RIGHT Show Image
PFA116A207H
[12] In Stock
SSA512T145H
MOTOR,DC
[13] Contact
PFA433B608
CASING(L)
Contact
Notes: LOWER
[14] Contact
PFA116A605A
BRACKET
Contact
[15] Contact
PFA116A609
LID
Contact
[16] Out of Stock
PFA129A608
SUPPORT
[17] Out of Stock
PFA129A600
SUPPORT
[18] Contact
PFA962C600
WIRE
Contact
[19] Contact
PSA011H046
LABEL,NOTICE
Contact
