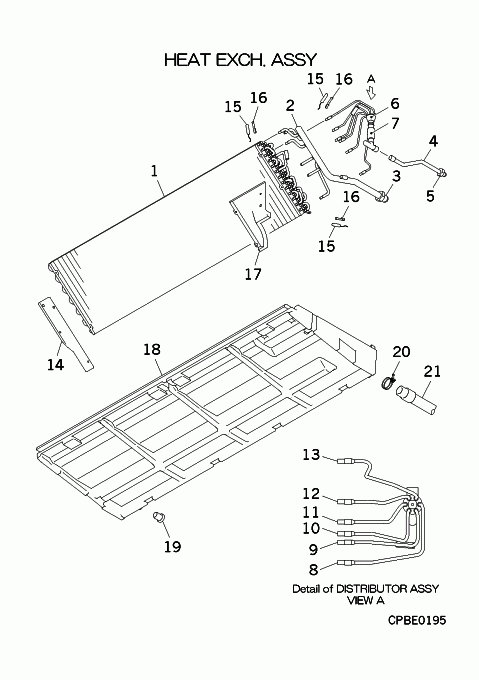

FDE50VH/1 HEAT EXCH. ASSY

FDE50VH/1 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PFA311A603P
HEAT EXCH(AIR)
Contact
Notes: !
[1-16] Contact
PFA301A614C
HEAT EXCH ASSY(AIR
Contact
[2-3] Contact
PFA315D613
HEADER ASSY,GAS
Contact
Notes: !
[3] Contact
SSA323F092C
UNION,SOLDER
Contact
[4-5] Contact
PFA304A604
PIPING ASSY
Contact
[5] Contact
SSA323F092
UNION,SOLDER
Contact
[6] Contact
SSA315A311AD
DISTRIBUTOR
Contact
Notes: !
[6-13] Contact
PFA315A618
DISTRIBUTOR ASSY
Contact
[7] In Stock
SSA357A051D
STRAINER
Show Image
SSA357A051D
[8] Contact
PFA315B755
CAPILLARY
Contact
Notes: !D3.0XD4.0 L180
[9] Contact
PFA315B755A
CAPILLARY
Contact
Notes: !D3.0XD4.0 L160
[10] Contact
PFA315B755B
CAPILLARY
Contact
Notes: !D2.6XD4.0 L180
[11] Contact
PFA315B755C
CAPILLARY
Contact
Notes: !D3.0XD4.0 L140
[12] Contact
PFA315B755D
CAPILLARY
Contact
Notes: !D3.0XD4.0 L160
[13] Contact
PFA315B755F
CAPILLARY
Contact
Notes: !D3.0XD4.0 L220
[14] Contact
PFA141A617
PLATE,BAFFLE
Contact
Notes: LEFT
[15] In Stock
PJF551A002B
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3 Show Image
PJF551A002B
[16] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[17] Contact
PFA141A606B
PLATE,BAFFLE
Contact
Notes: RIGHT
[18-19] In Stock
PFA454A614A
PAN ASSY,DRAIN
[19] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[20] In Stock
V300Y30
CLAMP
Show Image
V300Y30
[21] Out of Stock
SSA423A106A
HOSE DRAIN
