FDE36KXZE1/E HEAT EXCH. ASSY

FDE36KXZE1/E HEAT EXCH. ASSY

Available Parts

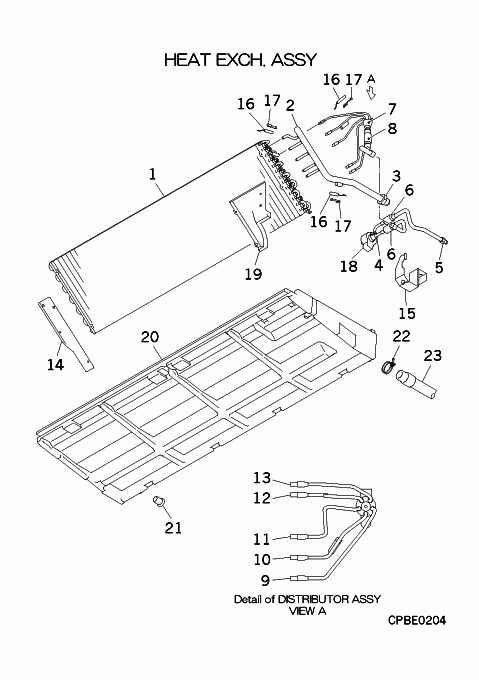

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PFA311A615B HEAT EXCH(AIR) Contact Notes: !   Contact
  • [1-18] PFA301A616D HEAT EXCH ASSY(AIR Contact Substitute: PFA301A616M   Contact
  • [2-3] PFA315D609B HEADER ASSY,GAS Contact Notes: !   Contact
  • [3] SSA323F092C UNION,SOLDER Contact   Contact
  • [4] SSA387F047 VALVE EXPA In Stock Notes: EEV - VALVE BODY, SM Show Image
  • [5] SSA323F092 UNION,SOLDER Contact   Contact
  • [6] SSA357A051B STRAINER In Stock Show Image
  • [7] SSA315A311AC DISTRIBUTOR Contact Notes: !   Contact
  • [7-13] PFA315A621 DISTRIBUTOR ASSY Contact   Contact
  • [8] SSA357A051D STRAINER In Stock Show Image
  • [9] PFA315B757 CAPILLARY Contact Notes: !D2.2XD4.0 L160   Contact
  • [10] PFA315B757A CAPILLARY Contact Notes: !D2.6XD4.0 L140   Contact
  • [11] PFA315B757B CAPILLARY Contact Notes: !D2.6XD4.0 L140   Contact
  • [12] PFA315B757C CAPILLARY Contact Notes: !D3.0XD4.0 L200   Contact
  • [13] PFA315B757D CAPILLARY Contact Notes: !D2.2XD4.0 L200   Contact
  • [14] PFA141A607B PLATE,BAFFLE Contact Notes: LEFT   Contact
  • [15] PFA116A647 PLATE,EEV Contact   Contact
  • [16] PJF551A002B SENSOR ASSY(TEMP) In Stock Notes: THI-R1,2,3, THI-R1,2,3 Show Image
  • [17] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THI-R Show Image
  • [18] SSA382F228BA SENSOR ASSY In Stock Notes: FOR EEVH1, FOR SM Show Image
  • [19] PFA141A606B PLATE,BAFFLE Contact Notes: RIGHT   Contact
  • [20-21] PFA454A614A PAN ASSY,DRAIN In Stock
  • [21] SSA326A003F PLUG In Stock Show Image
  • [22] V300Y30 CLAMP In Stock
  • [23] SSA423A106A HOSE DRAIN In Stock
SKU: FDE36KXZE1/E HEAT EXCH. ASSY Category:
