FDE36KXE6D HEAT EXCH. ASSY

FDE36KXE6D HEAT EXCH. ASSY

Available Parts

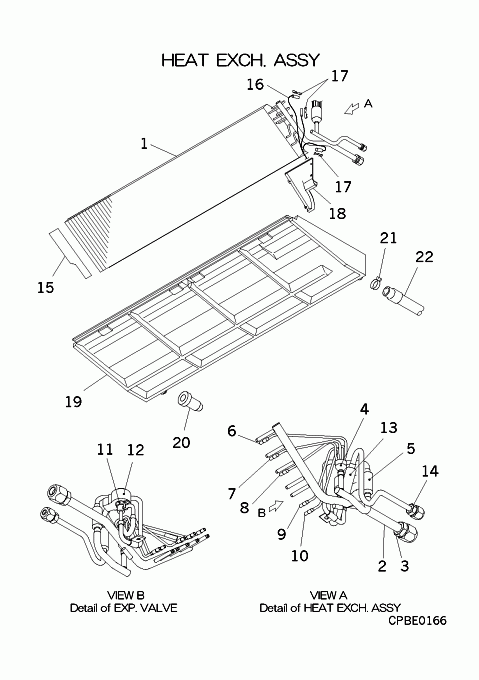

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PFA311A615A HEAT EXCH(AIR) Contact   Contact
  • [1-17] PFA301A612 HEAT EXCH ASSY(AIR Contact   Contact
  • [2-3] PFA315D609B HEADER ASSY,GAS Contact   Contact
  • [3] SSA323F012G UNION,SOLDER Contact Notes: GAS   Contact
  • [4] SSA315A252 DISTRIBUTOR Contact   Contact
  • [4-10] PFA315A610A DISTRIBUTOR ASSY Contact   Contact
  • [5] SSA357A005T STRAINER In Stock
  • [6] PFA315B730 CAPILLARY Contact Notes: !D2.6XD4.0 L210, !D2.6XD4.0 L210   Contact
  • [7] PFA315B731 CAPILLARY Contact Notes: !D2.6XD4.0 L170, !D2.6XD4.0 L170   Contact
  • [8] PFA315B732 CAPILLARY Contact Notes: !D2.6XD4.0 L160, !D2.6XD4.0 L160   Contact
  • [9] PFA315B733 CAPILLARY Contact Notes: !D2.6XD4.0 L180, !D2.6XD4.0 L180   Contact
  • [10] PFA315B734 CAPILLARY Contact Notes: !D2.6XD4.0 L200, !D2.6XD4.0 L200   Contact
  • [11] SSA387F047 VALVE EXPA In Stock Notes: EEV - VALVE BODY, EEVH or SM Show Image
  • [12] SSA382F210AW SOLENOID COIL (EEV) In Stock Notes: FOR SM
  • [13] SSA357A005B STRAINER In Stock Show Image
  • [14] SSA323F075 UNION Contact Notes: LIQ.   Contact
  • [15] PFA141A607A PLATE,BAFFLE Contact Notes: LEFT   Contact
  • [16] PJF551A002B SENSOR ASSY(TEMP) In Stock Notes: THI-R1,2,3, THI-R1,2,3 Show Image
  • [17] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [18] PFA141A606A PLATE,BAFFLE Contact Notes: RIGHT   Contact
  • [19-20] PFA454A614A PAN ASSY,DRAIN In Stock
  • [20] SSA326A003F PLUG In Stock Show Image
  • [21] V300Y30 CLAMP In Stock
  • [22] SSA423A060F HOSE Contact Substitute: PFA423A200D   Contact
SKU: FDE36KXE6D HEAT EXCH. ASSY Category:
