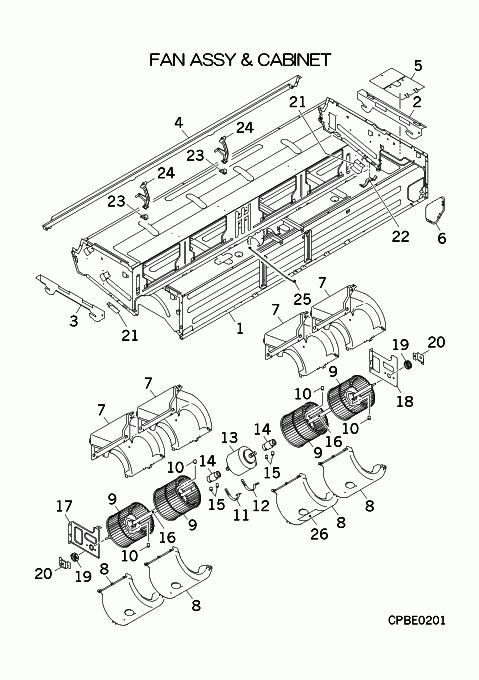

FDE140KXZE3-W/P FAN ASSY AND CABINET

FDE140KXZE3-W/P FAN ASSY AND CABINET

FDE140KXZE3-W/P FAN ASSY AND CABINET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-6] In Stock
PFA100A608
CABINET ASSY
Notes: !
[2] In Stock
PFA032A600B
HOLDER
Notes: RIGHT
[3] In Stock
PFA032A600C
HOLDER
Notes: LEFT
[4] In Stock
PFA122A608A
FRONT PANEL
[5] In Stock
PFA132A603
LID
Show Image
PFA132A603
[6] In Stock
PFA132A601
LID U
[7] In Stock
PFA433B609
CASING(U)
Notes: UPPER
[8] In Stock
PFA433B610
CASING(L)
Notes: LOWER
[9-10] In Stock
SSA431D081B
IMPELLER
[10] In Stock
SSA912F015
SET,SCREW(SCH-CP)
Notes: M6X8, 1pc ONLY
[11] In Stock
PFA116A207G
BRACKET
Notes: LEFT Show Image
PFA116A207G
[12] In Stock
PFA116A207H
BRACKET
Notes: RIGHT Show Image
PFA116A207H
[13] In Stock
SSA512T145K
MOTOR,DC
Show Image
SSA512T145K
[14-15] In Stock
PJH272A001
COUPLING
[15] In Stock
SSA912F015
SET,SCREW(SCH-CP)
Notes: M6X8, 1pc ONLY
[16] In Stock
PFA271A602
SHAFT
[17] In Stock
PFA116A646
BRACKET(BEARING)
Notes: LEFT
[18] In Stock
PFA116A646A
BRACKET(BEARING)
Notes: RIGHT, RIGHT SIDE
[19] Contact
SSA923C137
BEARING,PLANE
Contact
Notes: QUALITY-IMPROVED
[20] In Stock
PJH116A006
BRACKET (BEARING)
[21] Contact
PFA116A605A
BRACKET
Contact
[22] Contact
PFA116A609
LID
Contact
[23] Out of Stock
PFA129A608
SUPPORT
[24] Out of Stock
PFA129A600
SUPPORT
[25] Contact
PFA962C600
WIRE
Contact
[26] In Stock
PSA011H046
LABEL,NOTICE
SKU: FDE140KXZE3-W/P FAN ASSY AND CABINET Category:
