FDE140KXZE1/P CONTROL AND PARTS SET

Awaiting product image

FDE140KXZE1/P CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

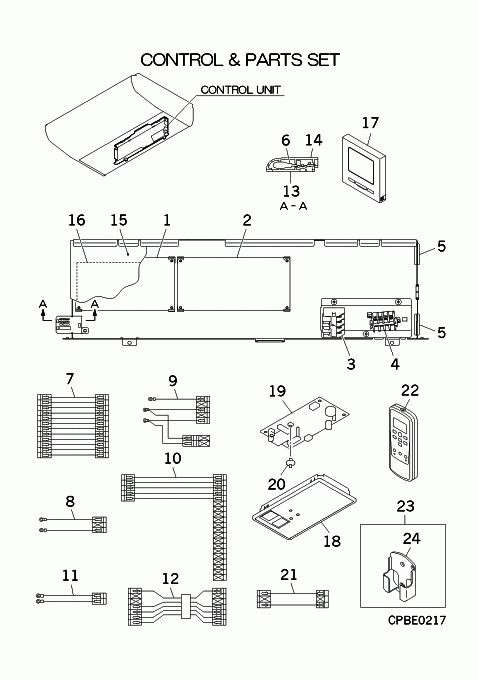

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA505A229TB
PWB ASSY
Notes: ONLY FOR SUPPLY PARTS, CONTROL PCB
[1-14] Contact
PFA501A628GP
CONTROL UNIT
Contact
Notes: !, NOT AVAILABLE
[2] Out of Stock
PJA505A230R
PWB ASSY(POWER)
Notes: ONLY FOR SUPPLY PARTS
[3] In Stock
SSA561B702C
BLOCK,TERMINAL
Notes: TB1
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[6] In Stock
PSA551A001H
SENSOR ASSY
Notes: THI-A Show Image
PSA551A001H
[7] Contact
PJG504A024A
WIRING(PWB)
Contact
Notes: CNW2 PWB- CNW1 PWB
[8] Contact
PJF504A006S
WIRING(TB,XY)
Contact
Notes: TB2 X,TB2 Y- CNB PWB
[9] Contact
PJG504A007C
WIRING(TB,POWER)
Contact
Notes: CONT E,TB1 1,TB1 2- CNWO PWB,CNU
[10] Contact
PFA504A612D
WIRING(LM)
Contact
Notes: CNJ2 LM- CNJ1 PWB
[11] Contact
PJF504A010N
WIRING(TB,AB)
Contact
Notes: TB2 A,TB2 B- CNK1 PWB
[12] Contact
PFA504A371
WIRING(FM)
Contact
Notes: CNF1- CNM1 PWB
[13] Contact
PJF129A014
BASE,HOLDER
Contact
[14] Contact
PJF129A015
COVER.HOLDER
Contact
[15] In Stock
PFA142A610
LID ASSY,CONTROL
[16] Contact
PFA011G620
LABEL,WIRING
Contact
Notes: !
[17] Contact
PJZ502A031AL
CONTROL ASSY,REMOT
Contact
Notes: RC-EX3D
[25] Contact
PFA011F679CN
LABEL,MODEL NAME
Contact
Notes: !
