FDE140KXE6D CONTROL AND PARTS SET

FDE140KXE6D CONTROL AND PARTS SET

Available Parts

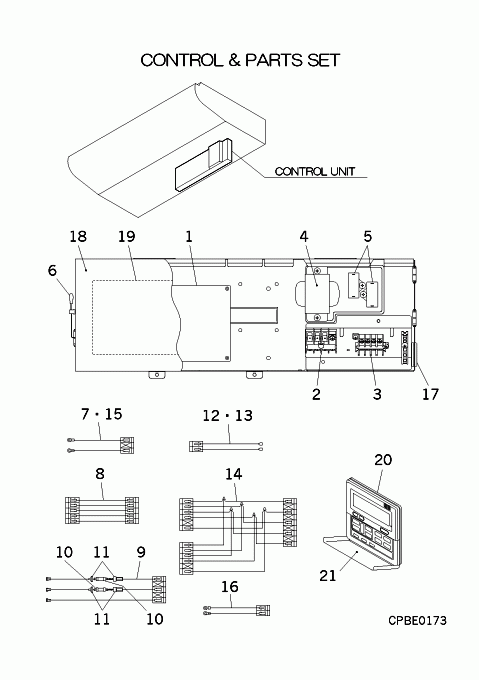

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJA505A199YF PWB ASSY Contact Notes: ONLY FOR SUPPLY PATYS   Contact
  • [1-17] PFA501A623LP CONTROL UNIT Contact   Contact
  • [2] SSA561B702C BLOCK,TERMINAL In Stock Notes: TB1, TB1
  • [3] SSA561B720A BLOCK,TERMINAL In Stock Notes: TB2, TB2 Show Image
  • [4] SSA554A487 TRANSFORMER In Stock Notes: TR, TR Show Image
  • [5] SSA552A842AC CAPACITOR,RUNNING Contact Substitute: SSA552A497C Notes: CFI1,2 2.5MF 400VAC, CFI1,2 2.5MF 400VAC   Contact
  • [6] PSA551A008AB SENSOR In Stock Notes: THI-A RETURN AIR. OTHER SENSORS MAY BE IN HEAT EXCH. ASSY SECTOR, THI-A Show Image
  • [7] PJF504A006A WIRING(TB,XY) Contact Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y- CNB PWB   Contact
  • [8] PFA504A612B WIRING(LM) In Stock Notes: CNJ2 LM- CNJ1 PWB, CNJ2 LM- CNJ1 PWB Show Image
  • [9-11] PFA504A618G WIRING(TB,POWER) Contact Notes: TB1 1,TB1 2- CNW0 PWB,CNU, TB1 1,TB1 2- CNW0 PWB,CNU   Contact
  • [10] SSA564A116G FUSE(CURRENT) In Stock Notes: 3.15 AMP FUSE, 3.15A Show Image
  • [11] RWC564B002 HOLDER,FUSE In Stock Show Image
  • [12] PFA504A616A HARNESS(CF) Contact Notes: CNFI1 2- CNFI1 2,CFI1 2, CNFI1 2- CNFI1 2,CFI1 2   Contact
  • [13] PFA504A616B HARNESS(CF) Contact Notes: CNFI1 2- CNFI1 2,CFI1 2, CNFI1 2- CNFI1 2,CFI1 2   Contact
  • [14] PFA504A621A WIRING(FM) Contact Notes: CNF1 FMI1,CNF2 FMI2- CNM3 PWB, CNF1 FMI1,CNF2 FMI2- CNM3 PWB   Contact
  • [15] PFA504A617B WIRING(TB,XY) Contact Notes: TB2 X,TB2 Y- CNB2, TB2 X,TB2 Y- CNB2   Contact
  • [16] PJF504A010D WIRING(TB,AB) Contact Notes: TB2 A,TB2 B- CNK1 PWB, TB2 A,TB2 B- CNK1 PWB   Contact
  • [17] S751W25X GROMMET In Stock Notes: D30 Show Image
  • [18-19] PFA142A606C LID ASSY,CONTROL B Contact   Contact
  • [19] PFA011G612 LABEL,WIRING Contact   Contact
  • [20-21] PJA502A800BC CONTROL ASSY,REMOTE Out of Stock Substitute: RC-E5 Notes: RC-E5 SALES ITEM, REPLACES RC-E3 AND RC-E4, RC-E4
  • [21] PJA129A708 COVER Z Contact   Contact
  • [22] PFA011F641N LABEL,MODEL NAME Contact   Contact
SKU: FDE140KXE6D CONTROL AND PARTS SET Category:
