FDE100VH/P CONTROL AND PARTS SET

Name: FDE100VH/P CONTROL AND PARTS SET
SKU: FDE100VH/P CONTROL AND PARTS SET
Availability: InStock

FDE100VH/P CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

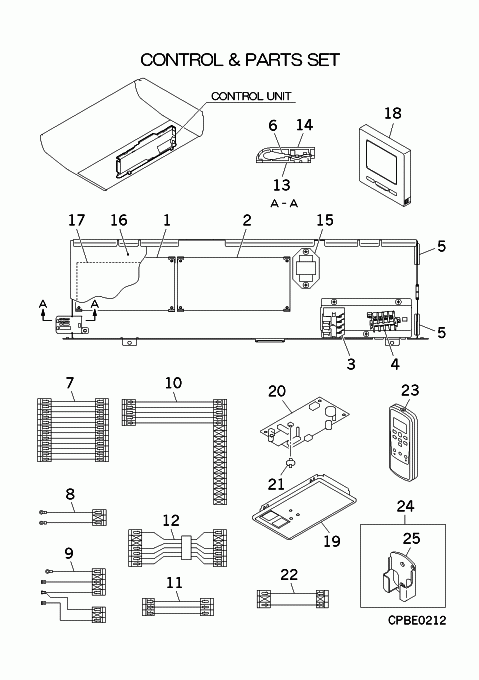

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A228LK

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS, CONFIRM SERVICE CODE-MANY PARTS ENDING 228 Show Image

[1-15] Contact

PFA501A631DN

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] Out of Stock

PJA505A230P

PWB ASSY (POWER)

Substitute: PJA505A230PA Notes: ONLY FOR SUPPLY PARTS, POWER PCB. PLUGS INTO FAN MOTOR

[3] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[6] In Stock

PSA551A001H

SENSOR ASSY

Notes: THI-A Show Image

[8] Contact

PJF504A006S

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB

[9] Contact

PJF504A036G

WIRING(TB,POWER)

Contact

Notes: CONT E,TB1 1,TB1 2,TB1 3- CNWR2,CNW0 PWB,CNW3 PWB

[10] Contact

PFA504A612D

WIRING(LM)

Contact

Notes: CNJ2 LM- CNJ1 PWB

[11] Contact

PFA504A374A

WIRING (BOX-FRONT)

Contact

Notes: CNL2- CNL1

[12] Contact

PFA504A371

WIRING(FM)

Contact

Notes: CNF1- CNM1 PWB

[13] Contact

PJF129A014

BASE,HOLDER

Contact

[14] Contact

PJF129A015

COVER.HOLDER

Contact

[15] In Stock

SSA554B104A

TRANSFORMER

Show Image

[16] In Stock

PFA142A610

LID ASSY,CONTROL

[17] Contact

PFA011G618

LABEL,WIRING

Contact

[18] Contact

PJZ502A031AL

CONTROL ASSY,REMOT

Contact

Notes: RC-EX3D/P

[19] Contact

PFA006A608B

WIRELESS KIT

Contact
