FDE100VG/1 HEAT EXCH. ASSY

FDE100VG/1 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

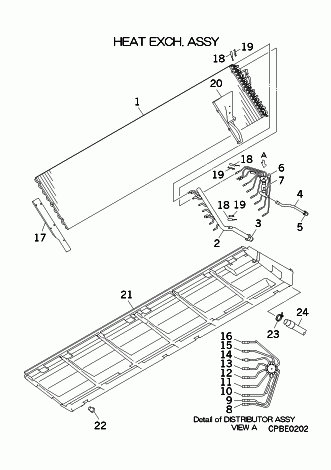

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-19] In Stock
PFA301A615AA
HEAT EXCH ASSY
[1] Contact
PFA311A604F
HEAT EXCH(AIR)
Contact
[2-3] Contact
PFA315D615
HEADER ASSY,GAS
Contact
[3] Contact
SSA323F092G
UNION,SOLDER
Contact
[4-5] Contact
PFA304A605
PIPING ASSY
Contact
[5] In Stock
SSA323F091
UNION(SLD)
[6] Contact
SSA315A311H
DISTRIBUTOR
Contact
[6-16] Contact
PFA315A620
DISTRIBUTOR ASSY
Contact
[7] In Stock
SSA357A051D
STRAINER
Show Image
SSA357A051D
[8] Contact
PFA315B756
CAPILLARY
Contact
Notes: !D2.2XD4.0 L200
[9] Contact
PFA315B756A
CAPILLARY
Contact
Notes: !D2.2XD4.0 L180
[10] Contact
PFA315B756B
CAPILLARY
Contact
Notes: !D2.6XD4.0 L140
[11] Contact
PFA315B756C
CAPILLARY
Contact
Notes: !D3.0XD4.0 L120
[12] Contact
PFA315B756D
CAPILLARY
Contact
Notes: !D2.6XD4.0 L140
[13] Contact
PFA315B756F
CAPILLARY
Contact
Notes: !D2.2XD4.0 L220
[14] Contact
PFA315B756G
CAPILLARY
Contact
Notes: !D2.0XD4.0 L180
[15] Contact
PFA315B756H
CAPILLARY
Contact
Notes: !D2.6XD4.0 L200
[16] Contact
PFA315B756J
CAPILLARY
Contact
Notes: !D2.0XD4.0 L260
[17] Contact
PFA141A609A
PLATE,BAFFLE
Contact
Notes: LEFT
[18] In Stock
PJF551A002G
SENSOR ASSY(TEMP)
Notes: THI-R1,2,3 Show Image
PJF551A002G
[19] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[20] Contact
PFA141A608A
PLATE,BAFFLE
Contact
Notes: RIGHT
[21-22] In Stock
PFA454A613A
PAN ASSY,DRAIN
[22] In Stock
SSA326A003F
PLUG
Show Image
SSA326A003F
[23] In Stock
V300Y30
CLAMP
Show Image
V300Y30
[24] Out of Stock
SSA423A106A
HOSE DRAIN
