FDE100VG/1 FAN ASSY AND CABINET

FDE100VG/1 FAN ASSY AND CABINET

Available Parts

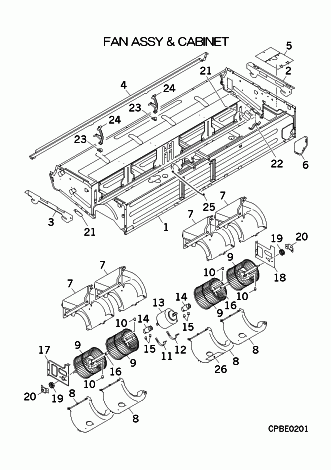

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-6] PFA100A608 CABINET ASSY Contact   Contact
  • [2] PFA032A600B HOLDER Contact Notes: RIGHT   Contact
  • [3] PFA032A600C HOLDER Contact Notes: LEFT   Contact
  • [4] PFA122A608A FRONT PANEL In Stock
  • [5] PFA132A603 LID In Stock Show Image
  • [6] PFA132A601 LID U In Stock
  • [7] PFA433B609 CASING(U) In Stock Substitute: PSA099A616 Notes: UPPER
  • [8] PFA433B610 CASING(L) In Stock Notes: LOWER
  • [9-10] SSA431D081B IMPELLER In Stock
  • [10] SSA912F015 SET,SCREW(SCH-CP) Contact Notes: 1PC ONLY, M6X8   Contact
  • [11] PFA116A207G BRACKET In Stock Substitute: PJG116A063 Notes: LEFT Show Image
  • [12] PFA116A207H BRACKET In Stock Substitute: PJG116A063A Notes: RIGHT Show Image
  • [13] SSA512T145K MOTOR,DC In Stock Notes: FOR FAN ASSY: INCLUDE COUPLING, SHAFT AND IMPELLER Show Image
  • [14-15] PJH272A001 COUPLING Contact   Contact
  • [15] SSA912F015 SET,SCREW(SCH-CP) Contact Notes: 1PC ONLY, M6X8   Contact
  • [16] PFA271A602 SHAFT Contact   Contact
  • [17] PFA116A646 BRACKET(BEARING) Contact Notes: LEFT   Contact
  • [18] PFA116A646A BRACKET(BEARING) Contact Notes: RIGHT   Contact
  • [19] SSA923C136 BEARING, PLANE In Stock Notes: END BEARING
  • [20] PJH116A006 BRACKET (BEARING) In Stock
  • [21] PFA116A605A BRACKET Contact   Contact
  • [22] PFA116A609 LID Contact   Contact
  • [23] PFA129A608 SUPPORT Contact   Contact
  • [24] PFA129A600 SUPPORT Contact   Contact
  • [25] PFA962C600 WIRE Contact   Contact
  • [26] PSA011H046 LABEL,NOTICE Contact   Contact
SKU: FDE100VG/1 FAN ASSY AND CABINET Category:
