FDCVA802HESAR CONTROL AND PARTS SET

Name: FDCVA802HESAR CONTROL AND PARTS SET
SKU: FDCVA802HESAR CONTROL AND PARTS SET
Availability: InStock

FDCVA802HESAR CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

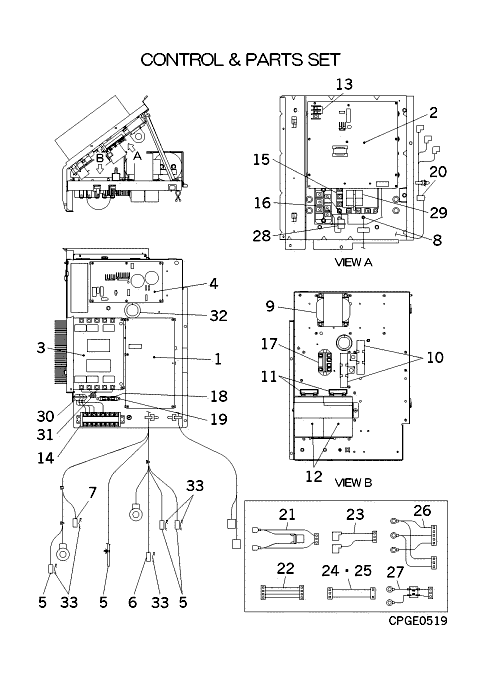

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A089ZH

PWB ASSY CONTROL

Notes: PWB1 CONTROL, CONTROL & FM BOARD Show Image

[1-32] Contact

PCA501A134B

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] In Stock

PCB505A044ZG

PWB ASSY(INV)

Notes: PWB2 INVERTER, ****NEED HEAT PASTE SSA971F044/ LENGTH 40CM Show Image

[3] In Stock

PCB505A035F

PWB ASSY

Notes: PWB3, NOISE FILTER

[4] Out of Stock

PCB505A041ZG

PWB ASSY

Substitute: OUT OF PRODUCTION Notes: PWB4, OUT OF PRODUCTION - 2 CAPACITORS ON THE BOARD Show Image

[5] In Stock

PCA551A031

SENSOR ASSY

Notes: THO-O,S,D,R1, AIR, SUCTION PIPE,DISCHARGE, REFRIGERANT Show Image

[6] In Stock

PCA551A031A

SENSOR XP

Notes: THO-H Show Image

[7] In Stock

PSA551A013D

SENSOR

Notes: THO-R2 Show Image

[8] In Stock

SSA551A192K

SENSOR

Notes: THO-TR-IPM, THO-TIP or THO-TR or THO-IPM - SENSOR NEAR INVERTER BOARD Show Image

[9] In Stock

SSA554B044F

REACTOR

Notes: L1

[10] In Stock

SSA553A379

RESISTOR

Notes: R1-1,2,R2-1,2, 15O (Ohm) Show Image

[11] In Stock

SSA553A380

RESISTOR

Notes: R1-3,4,R2-3,4, 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[12] In Stock

SSA552F427AJ

CAPACITOR

Notes: C1,2, C1 400V 3900MF

[13] Contact

SSA562K005

RLOCK TERMI

Contact

[14] In Stock

SSA561B693F

TERMINAL

Notes: TB Show Image

[15] In Stock

PCB008A120A

TRANSISTOR

Notes: IPM/TM, IPM (Intelligent Power Module) / POWER TRANSISTOR

[16] In Stock

PCB008A121A

DIODE STACK

Notes: DM, aka DIODE MODULE Show Image

[17] In Stock

SSA521A715

RELAY

Notes: 52C Show Image

[18] In Stock

SSA564A135K

FUSE

Notes: F 10A Show Image

[19] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[20] In Stock

SSA552D040Y

FILTER,NOISE

Notes: FOR COMP.WIRING Show Image

[21] Out of Stock

PCA504A273

WIRING ASSY

Substitute: OUT OF PRODUCTION Notes: DM G,DM K-PWB2 CNR, OUT OF PRODUCTION. DM1 G,DM1 K- PWB2-1 CNR Show Image

[22] In Stock

PCA504A243BF

HARNESS ASSY

Notes: PWB1 CNI1- PWB2 CNI3 Show Image

[23] In Stock

PCA504A243BJ

HARNESS ASSY

Notes: 63H 1,63H 2-PWB1 CNH Show Image

[24] In Stock

PCA504A247BH

HARNESS ASSY

Notes: PWB4 CNO1- PWB1 CNA1 Show Image

[25] In Stock

PCA504A247BK

HARNESS ASSY

Notes: PWB4 CNO2- PWB1 CNA2 Show Image

[26] In Stock

PCA504A247CD

HARNESS ASSY

Notes: PWB3 L1O,PWB3 NO,PWB3 L2O-PWB1 CNW,PWB4 CNW1 Show Image

[27] In Stock

PCA504A247DS

HARNESS ASSY

Notes: TB 2,TB 3-PWB1 CNW2

[28] In Stock

PCB555B003B

DIODE

Show Image

[29] In Stock

PCB552F006D

CAPACITOR

Show Image

[30] In Stock

PCB552D006B

CAPACITOR

Show Image

[31] In Stock

PCA552F002A

CAPACITOR

Show Image

[32] Contact

S750W30X

GROMMET

Contact

Notes: D35

[33] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[34] Contact

PSC011G548

LABEL,WIRING

Contact

[34-35] Contact

PCA008A240

PARTS SET

Contact

[35] Contact

PSA011F991AF

LABEL,MODEL NAME

Contact
