FDCVA502HENR FAN AND COMPRESSOR

FDCVA502HENR FAN AND COMPRESSOR

Available Parts

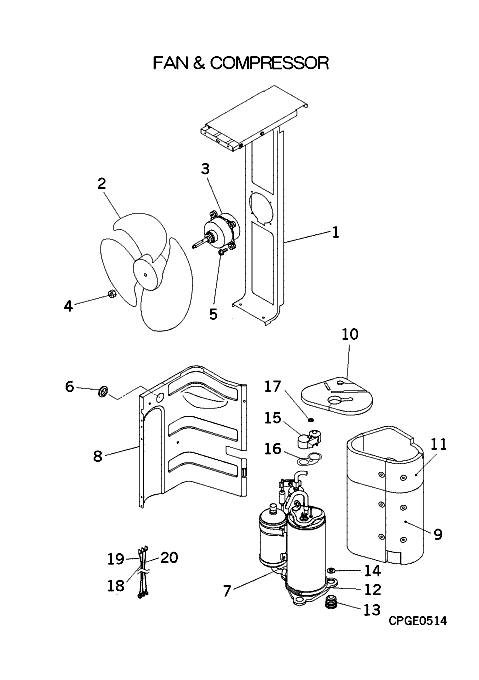

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCA116A209 BASE MO XP In Stock
  • [2] SSA431B228 FAN, PROPELLER In Stock Notes: CONDENSER FAN BLADE
  • [3] SSA512T077Y FAN MOTOR In Stock Substitute: SSA512T076G Notes: CONDENSER FAN MOTOR
  • [4] SSA914B007AD NUT In Stock Substitute: RSA008A005 Notes: **1PC ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
  • [5] SSA913B038 SCREW,TAP In Stock Notes: 1PC ONLY - FOR FAN MOTOR Show Image
  • [6] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [7] PCA201A058 COMPRESSOR In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, RM-B5125MD11
  • [8] PCA141A088 PLATE,BAFFLE Contact   Contact
  • [9] PCA151D079 INSULATION,COMP In Stock
  • [10] PCA151D080 INSULATION,COMP Contact   Contact
  • [11] PCA151D081 INSULATION,COMP Contact   Contact
  • [12] PCA541B012F HEATER ASSY In Stock Notes: SUMP HEATER - CRANK CASE HEATER
  • [13] SSA941C246 CUSHION RUBBER In Stock Notes: 1PC ONLY
  • [14] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [15] AHL947K001 COVER,TERMINAL Contact Substitute: OUT OF PRODUCTION   Contact
  • [16] AHL932C002 GASKET,COVER In Stock Show Image
  • [17] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [18] PCA504A242AG WIRING ASSY In Stock Notes: !U RED CABLE, !U
  • [19] PCA504A242AH WIRING ASSY In Stock Notes: !V WHITE CABLE, !V
  • [20] PCA504A242AJ HARNESS ASSY In Stock Notes: W BLUE CABLE, !W
