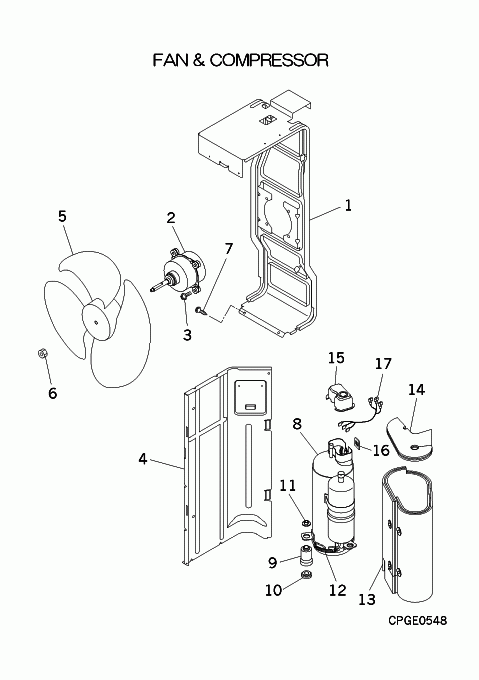

FDCVA302HENR FAN AND COMPRESSOR

FDCVA302HENR FAN AND COMPRESSOR

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RCR116A001
BRACKET,MOTOR
[2] In Stock
SSA512T076BA
MOTOR,DC
[3] In Stock
SSA913B038
SCREW,TAP
Notes: 1pc ONLY - FOR FAN MOTOR Show Image
SSA913B038
[4] Contact
RCR141A001B
PLATE,BAFFLE
Contact
[5] In Stock
SSA431B247A
FAN
Notes: OUTDOOR FAN BLADE
[6] In Stock
SSA914B007AD
NUT
Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
SSA914B007AD
[7] In Stock
W011D04X008
TAP SCREW
Notes: 4X8, 1pc ONLY Show Image
W011D04X008
[8] Out of Stock
PCA201A061
COMPRESSOR ASSY
Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION ***COMPRESSORS CANNOT BE RETURNED***
[9] Contact
PCA941C012
CUSHION,RUBBER
Contact
[10] Contact
PCA935A003
SPACER
Contact
[11] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[12] Out of Stock
PCA541B016C
HEATER ASSY(CRANK)
Substitute: OUT OF PRODUCTION Show Image
PCA541B016C
[13] Contact
PCA151D082
INSULATION,COMP
Contact
[14] Contact
PCA151D083
INSULATION,COMP
Contact
[15] Contact
PCA947K007
COVER TERM
Contact
[16] Contact
PCA947H001
BUSH
Contact
[17] In Stock
PCA504A251R
WIRING ASSY
Notes: FOR COMP.
