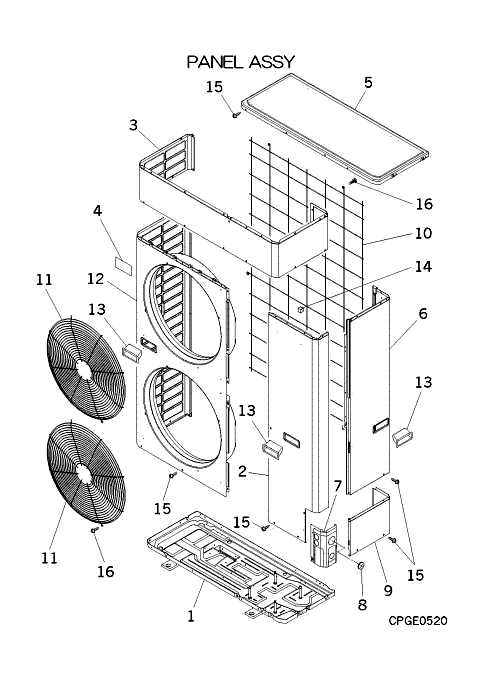

FDCVA1002HESR PANEL ASSY

FDCVA1002HESR PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCA111A030
BASE ASSY
Contact
[2] In Stock
PCA122A040G
PANEL SERVI
[3] In Stock
PCA122A049
PANEL FRONT
[4] In Stock
RCG011H004A
LABEL,NOTIC
Show Image
RCG011H004A
[5] In Stock
PCA124A015D
PANEL TOP
[6] In Stock
PCA125A019K
PANEL,REAR
[7-8] In Stock
PCA142A140
COVER ASSY FRONT
Show Image
PCA142A140
[8] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[9] In Stock
PCA142A081D
COVER,SIDE
Show Image
PCA142A081D
[10] Contact
PCA131A034
GUARD,FIN
Contact
[11] In Stock
PCA131A038
FAN GUARD
[12] Out of Stock
PCA122A038N
PANEL FRONT
Substitute: OUT OF PRODUCTION
[13] In Stock
SSA944B031A
HANDLE
Show Image
SSA944B031A
[14] In Stock
PCA941G004
CUSHION RUB
[15] Contact
SSA913D012
SCREW 5X10
Contact
Notes: 5X10, 1pc ONLY
[16] Contact
SSA913D012A
SCREW 5/14
Contact
Notes: 5X14, 1pc ONLY
