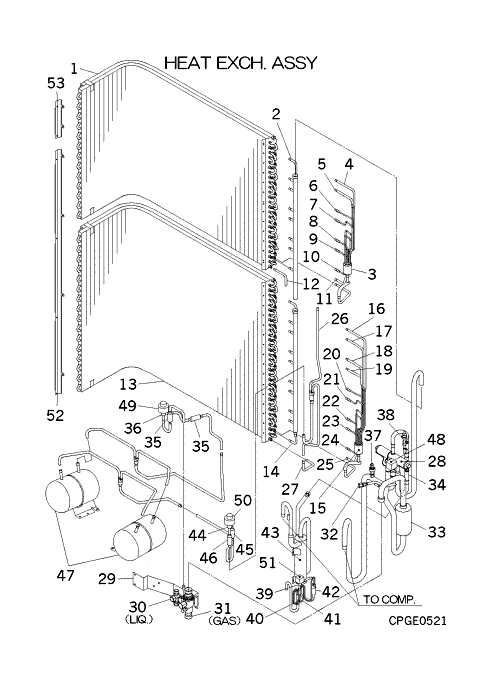

FDCVA1002HESR HEAT EXCH. ASSY

FDCVA1002HESR HEAT EXCH. ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCA311A050 HEAT EXCH(AIR) Contact   Contact
  • [1-12] PCA301A117 HEAT EXCH Contact Notes: UPPER   Contact
  • [2] PCA315D176 HEADER ASSY,GAS Contact   Contact
  • [3] PJA315A703N DISTRIBUTOR Contact   Contact
  • [3-11] PCA315A086 DISTRIBUTOR ASSY Contact   Contact
  • [4] PCA315B832 CAPILLARY ASSY(1) Contact Notes: !D2.4XD4.0 L300, !D2.4XD4.0 L300   Contact
  • [5] PCA315B833 CAPILLARY ASSY(2) Contact Notes: !D2.4XD4.0 L300, !D2.4XD4.0 L300   Contact
  • [6] PCA315B834 CAPILLARY(3) Contact Notes: !D2.8XD4.0 L300, !D2.8XD4.0 L300   Contact
  • [7] PCA315B835 CAPILLARY(4) Contact Notes: !D2.4XD4.0 L300, !D2.4XD4.0 L300   Contact
  • [8] PCA315B836 CAPILLARY(5) Contact Notes: !D2.0XD4.0 L300, !D2.0XD4.0 L300   Contact
  • [9] PCA315B837 CAPILLARY(6) Contact Notes: !D2.2XD4.0 L300, !D2.2XD4.0 L300   Contact
  • [10] PCA315B838 CAPILLARY(7) Contact Notes: !D2.0XD4.0 L300, !D2.0XD4.0 L300   Contact
  • [11] PCA315B839 CAPILLARY ASSY(8) Contact Notes: !D2.2XD4.0 L300, !D2.2XD4.0 L300   Contact
  • [12] PCA321C654 PIPE Contact   Contact
  • [13] PCA311A051 HEAT EXCH(AIR) Contact   Contact
  • [13-27] PCA301A118B HEAT EXCH In Stock Notes: LOWER
  • [14] PCA315D178 HEADER ASSY,GAS Contact   Contact
  • [15] PJA315A703L DISTRIBUTOR Contact   Contact
  • [15-25] PCA315A087 DISTRIBUTOR ASSY Contact   Contact
  • [16] PCA315B840 CAPILLARY ASSY(9) Contact Notes: !D2.2XD4.0 L300, !D2.2XD4.0 L300   Contact
  • [17] PCA315B841 CAPILLARY ASSY(10) Contact Notes: !D2.0XD4.0 L300, !D2.0XD4.0 L300   Contact
  • [18] PCA315B842 CAPILLARY ASSY(11) Contact Notes: !D2.4XD4.0 L300, !D2.4XD4.0 L300   Contact
  • [19] PCA315B843 CAPILLARY ASSY(12) Contact Notes: !D2.2XD4.0 L300, !D2.2XD4.0 L300   Contact
  • [20] PCA315B844 CAPILLARY(13) Contact Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300   Contact
  • [21] PCA315B845 CAPILLARY(14) Contact Notes: !D2.2XD4.0 L300, !D2.2XD4.0 L300   Contact
  • [22] PCA315B846 CAPILLARY(15) Contact Notes: !D2.8XD4.0 L300, !D2.8XD4.0 L300   Contact
  • [23] PCA315B847 CAPILLARY(16) Contact Notes: !D2.4XD4.0 L300, !D2.4XD4.0 L300   Contact
  • [24] PCA315B848 CAPILLARY(17) Contact Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300   Contact
  • [25] PCA315B849 CAPILLARY ASSY(18) Contact Notes: !D2.2XD4.0 L300, !D2.2XD4.0 L300   Contact
  • [26] PCA321C663A PIPE ASSY Contact   Contact
  • [27] PCA321C655 PIPE Contact   Contact
  • [28] SSA382C096A VALVE, S(4WAY) In Stock Notes: 20S,20SL
  • [29] PCA116A203 BRACKET Contact   Contact
  • [30] PCB381A077B SERVICE VALVE In Stock Notes: LIQ. Show Image
  • [31] SSA381A855 SERVICE VALVE In Stock Notes: GAS Show Image
  • [32] SSA327B067 VALVE,SERVICE In Stock Show Image
  • [33] SSA325A001CL PIPE,SHELL Contact   Contact
  • [34] SSA385A018A VALVE CHECK In Stock
  • [35] SSA357A005P STRAINER In Stock Show Image
  • [36] SSA387F044 EXP VALVE In Stock Notes: EEVC or SM1 Show Image
  • [37] SSA551D022C SENSOR LP In Stock Notes: LOW PRESSURE TRANSDUCER, LOW PRESSURE TRANSDUCER Show Image
  • [38] SSA532A083 SWITCH HP In Stock Notes: (HIGH PRESSURE SWITCH) - 63H1, 63H1 Show Image
  • [39] SSA382A250 2WAY, VALVE In Stock Substitute: SSA382A249A Notes: SV Show Image
  • [39-42] PCA321C578 PIPE ASSY Contact   Contact
  • [40] PCA315B790 CAPILLARY Contact Notes: !D2.2XD3.2 L340, !D2.2XD3.2 L340   Contact
  • [41] PCA315B791 CAPILLARY Contact Notes: !D1.2XD3.2 L500, !D1.2XD3.2 L500   Contact
  • [42] SSA357A008BW STRAINER In Stock
  • [43] PCA325A003B PIPE ASSY,SHELL Contact   Contact
  • [44] SSA387F044A EXP VAL XP In Stock Notes: EXPANSION VALVE BODY ONLY, EEV or SM2 Show Image
  • [45] SSA357A005P STRAINER In Stock Show Image
  • [46] SSA357A005T STRAINER In Stock
  • [47] SSA352B045 RECEIVER In Stock

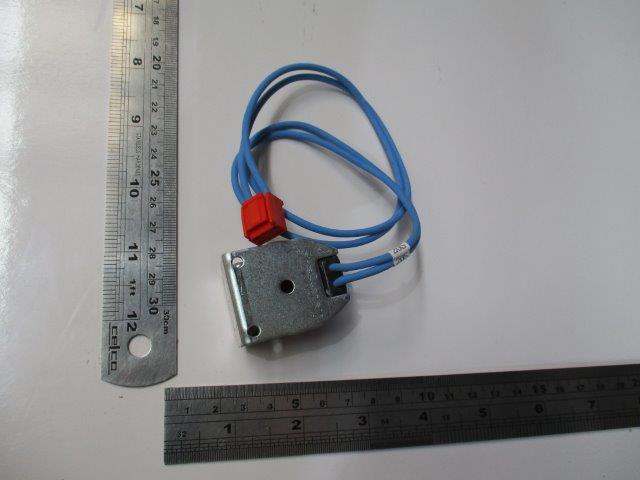

  • [48] PCA382F002N COIL ASSY In Stock Notes: FOR 20S Show Image

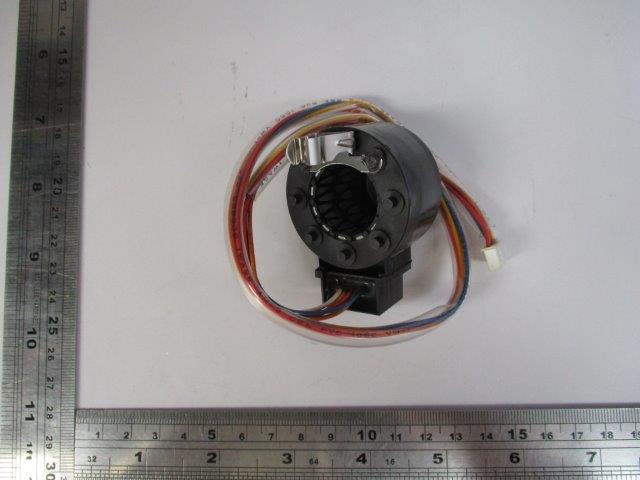

  • [49] SSA382F212H SOLENOI XP In Stock Show Image
  • [50] SSA382F229J SOLENOID XP In Stock Notes: FOR EEVH or SM2 Show Image
  • [51] PCB382F092N COIL ASSY In Stock Notes: FOR SV2 Show Image
  • [52] PCA141A074B PLATE BAFFL Contact   Contact
  • [53] PCA141A091 PLATE,BAFFLE Contact   Contact
SKU: FDCVA1002HESR HEAT EXCH. ASSY Category:
