FDCVA1002HESR FAN AND COMPRESSOR

FDCVA1002HESR FAN AND COMPRESSOR

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

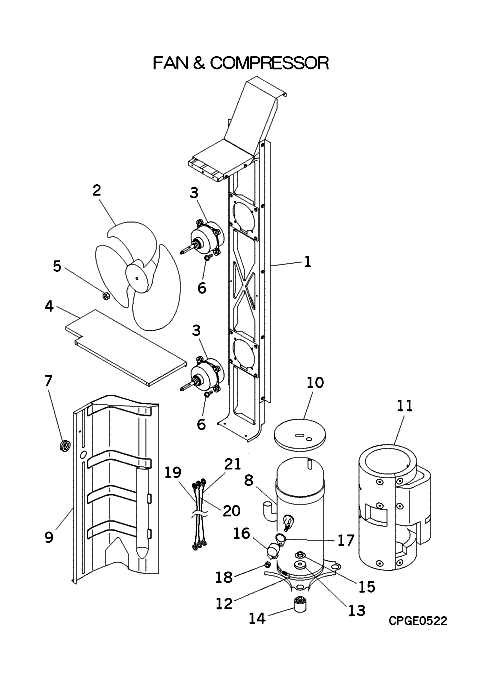

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCA116A109G
BASE,MOTOR
Contact
[2] In Stock
SSA431B228
FAN, PROPELLER
Notes: CONDENSER FAN BLADE
[3] In Stock
SSA512T077Y
FAN MOTOR
Notes: CONDENSER FAN MOTOR
[4] Contact
PCA141A096
PLATE,BAFFLE
Contact
[5] In Stock
SSA914B007AD
NUT
Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
SSA914B007AD
[6] In Stock
SSA913B038
SCREW,TAP
Notes: 1pc ONLY - FOR FAN MOTOR Show Image
SSA913B038
[7] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[8] In Stock
AGT201A526DC
COMPRESSOR
Notes: GT-C5150ND79, ***COMPRESSORS CANNOT BE RETURNED***
[9] Contact
PCA141A080H
PLATE ASSY,BAFFLE
Contact
[10] Contact
PCA151D034A
INSULATO CO
Contact
Notes: UPPER
[11] Contact
PCA151D075A
INSULATION,COMP
Contact
[12] In Stock
PCA541B031
HEATER ASSY(CRANK)
Show Image
PCA541B031
[13] In Stock
SSA941C289
CUSHION RU
Notes: UPPER Show Image
SSA941C289
[14] In Stock
SSA941C285G
CUSHION RUB
Notes: LOWER, LENGTH 6CM Show Image
SSA941C285G
[15] In Stock
SSA914C033
NUT
Notes: 1pc
[16] Out of Stock
AGR947K002
TERMINAL C
[18] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[19] In Stock
PCA504A247DJ
HARNESS ASSY
Notes: !U Show Image
PCA504A247DJ
[20] In Stock
PCA504A247DK
HARNESS ASSY
Notes: !V Show Image
PCA504A247DK
[21] In Stock
PCA504A247DL
HARNESS ASSY
Notes: !W
