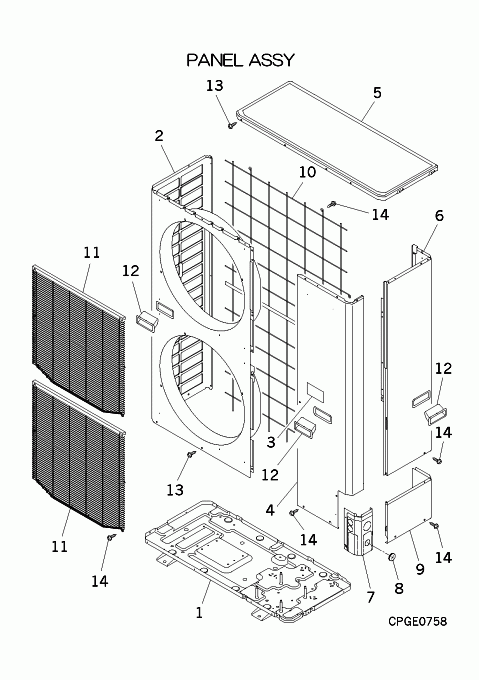

FDCR280KXE6/1 PANEL ASSY

FDCR280KXE6/1 PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB111A063
BASE
Contact
[2] Contact
PCB122A083B
FRONT PANEL ASSY
Contact
[3] Contact
RSA011H016C
LABEL,NOTICE
Contact
[4] In Stock
PCB122A081
SERVICE PANEL ASSY
[5] In Stock
PCB124A021B
TOP PANEL ASSY
[6] Out of Stock
PCB125A033B
REAR PANEL ASSY
[7-8] In Stock
PCB142A418
COVER ASSY
[8] In Stock
S751W25X
GROMMET
Notes: D30 Show Image
S751W25X
[9] Contact
PCB142A420B
COVER ASSY(S)
Contact
[10] Contact
PCB131A028
GUARD,FIN
Contact
[11] Contact
PCA131A040
GUARD,FAN
Contact
[12] Contact
PCB944B004
HANDLE
Contact
[13] In Stock
SSA913D020A
SCREW,TAP & WASHER
Notes: M5X14, 1pc ONLY Show Image
SSA913D020A
[14] In Stock
SSA913D020D
SCREW,TAP & WASHER
Notes: M5X14, 1pc ONLY, M5X14
