FDCR280KXE6/1 CONTROL AND PARTS SET

FDCR280KXE6/1 CONTROL AND PARTS SET

Available Parts

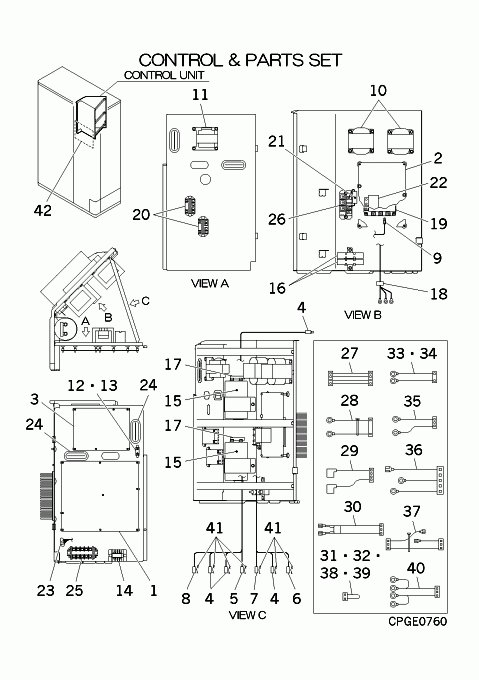

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB505A059KB PWB ASSY(CONTROL) Contact Notes: PWB1   Contact
  • [1-40] PCB501A203AJ   Contact   Contact
  • [2] PCB505A062AA PWB ASSY(INV.) In Stock Notes: PWB2, PWB2 Show Image
  • [3] PCB505A035H PWB ASSY(N.F) In Stock Notes: PWB3 - NOISE FILTER, PWB3 Show Image
  • [4] PCB551A029G SENSOR ASSY In Stock Notes: THO-A,S,D,R1, THO-A,S,D,R1 Show Image
  • [5] PCB551A029D SENSOR ASSY In Stock Substitute: PSY551A005D Notes: THO-C, THO-C
  • [6] PCB551A029A SENSOR ASSY Contact Notes: THO-R2, THO-R2   Contact
  • [7] PCB551A029B SENSOR ASSY In Stock Notes: THO-H, THO-H Show Image
  • [8] PCB551A029C SENSOR ASSY Contact Notes: THO-SC, THO-SC   Contact
  • [9] SSA551A192N SENSOR ASSY Contact Notes: THO-TR, THO-TR   Contact
  • [10] SSA554B097 REACTOR In Stock Notes: L1,2
  • [11] SSA554B073 REACTOR In Stock Notes: L3 Show Image
  • [12] SSA564A158Y FM FUZE In Stock Notes: KX6 SIDE BLOW (6A), F1 6A
  • [13] SSA564B076 HOLDER,FUSE In Stock Show Image
  • [14] SSA561B716AF BLOCK,TERMINAL Contact Notes: TB2, TB2   Contact
  • [15] SSA552F427AK CAPACITOR In Stock Notes: 4700 MICRO FARADS, C1,2 Show Image
  • [16] SSA553A379 RESISTOR In Stock Notes: 15O (OHM), R1,2 Show Image
  • [17] SSA553A380 RESISTOR In Stock Notes: 30 KO (KILO-OHM), R3,4
  • [18] SSA552D081 FILTER,NOISE In Stock
  • [19] PCB008A120A TRANSISTOR In Stock Notes: IPM (INTELLIGENT POWER MODULE) / POWER TRANSISTOR, TM
  • [20] SSA521A715A RELAY In Stock Notes: 52X1,52X2, 52X1,52X2
  • [21] PCB555B003C VARISTOR ASSY In Stock Show Image
  • [22] SSA552F694 CAPACITOR In Stock Notes: 1250V 2.2UF
  • [23] PCA552D003B KILLER,NOISE ASSY In Stock Show Image
  • [24] SSA947B004 GROMMET Contact   Contact
  • [25] SSA561B693L BLOCK,TERMINAL In Stock Notes: TB1, TB1
  • [26] PCB008A121A DIODE STACK In Stock Notes: AKA DIODE MODULE Show Image
  • [27] PCB504A284L WIRING ASSY Contact Notes: PWB1 CNI1- PWB2 CNI2, PWB1 CNI1- PWB2 CNI2   Contact
  • [28] PCB504A284J WIRING ASSY Contact Notes: TB2 A,TB2 B- PWB1 CNX1, TB2 A,TB2 B- PWB1 CNX1   Contact
  • [29] PCB504A284K WIRING ASSY Contact Notes: 63H-1 1,63H-1 2- PWB1 CNQ1, 63H-1 1,63H-1 2- PWB1 CNQ1   Contact
  • [30] PCA504A273 WIRING ASSY In Stock Notes: DM1 G,DM1 K- PWB2-1 CNR, DM1 G,DM1 K- PWB2-1 CNR Show Image
  • [31] PCB504A284AP WIRING ASSY Contact Notes: PWB1 CNG1, PWB1 CNG1   Contact
  • [32] PCB504A284AR WIRING ASSY Contact Notes: PWB1 CNG2, PWB1 CNG2   Contact
  • [33] PCB504A284BF WIRING ASSY Contact Notes: TB2 A1,TB2 B1- CNSL1, TB2 A1,TB2 B1- CNSL1   Contact
  • [34] PCB504A284BG WIRING ASSY Contact Notes: TB2 A2,TB2 B2- CNSL2, TB2 A2,TB2 B2- CNSL2   Contact
  • [35] PCB504A284AS WIRING ASSY Contact Notes: C1 +,C1 -- PWB2 CAN, C1 +,C1 -- PWB2 CAN   Contact
  • [36] PCB504A284AV WIRING ASSY Contact Notes: L3 2,PWB3 NO,PWB3 L2O- PWB1 CAW, L3 2,PWB3 NO,PWB3 L2O- PWB1 CAW   Contact
  • [37] PCB504A284BA WIRING ASSY Contact   Contact
  • [38] PCB504A284BB WIRING ASSY Contact Notes: PWB1 CNS1, PWB1 CNS1   Contact
  • [39] PCB504A284BC WIRING ASSY In Stock Notes: PWB1 CNS2, PWB1 CNS2 Show Image
  • [40] PCB504A284BK WIRING ASSY Contact Notes: 52X2 5,52X1 5,52X1 6,52X2 6- PWB1 CNM1, 52X2 5,52X1 5,52X1 6,52X2 6- PWB1 CNM1   Contact
  • [41] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR THO-R1,R2,D,H,S,C,SC Show Image
  • [42] PCB011G008K LABEL,WIRING Contact   Contact
  • [43] PSB011F021AY   Contact   Contact
