FDCR224KXE6/1 HEAT EXCH. ASSY

FDCR224KXE6/1 HEAT EXCH. ASSY

Available Parts

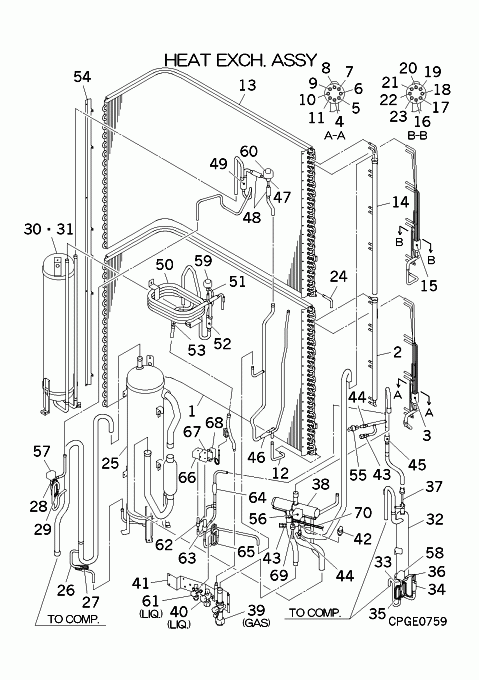

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB311A045D HEAT EXCH(AIR) Contact   Contact
  • [1-12] PCB301A155G HEAT EXCH ASSY(AIR Contact Notes: BOTTOM   Contact
  • [2] PCB315D300 HEADER ASSY,GAS Contact   Contact
  • [3] SSA315A036B DISTRIBUTOR Contact   Contact
  • [3-11] PCB315A125 DISTRIBUTOR ASSY Contact   Contact
  • [4] PCB315B844 CAPILLARY(1) Contact Notes: !D2.0XD4.0 L300   Contact
  • [5] PCB315B845 CAPILLARY(2) Contact Notes: !D2.0XD4.0 L300   Contact
  • [6] PCB315B846 CAPILLARY(3) Contact Notes: !D2.2XD4.0 L300   Contact
  • [7] PCB315B847 CAPILLARY(4) Contact Notes: !D2.2XD4.0 L300   Contact
  • [8] PCB315B848 CAPILLARY(5) Contact Notes: !D2.4XD4.0 L300   Contact
  • [9] PCB315B849 CAPILLARY(6) Contact Notes: !D2.2XD4.0 L300   Contact
  • [10] PCB315B850 CAPILLARY(7) Contact Notes: !D2.2XD4.0 L300   Contact
  • [11] PCB315B851 CAPILLARY(8) Contact Notes: !D2.2XD4.0 L300   Contact
  • [12] PCB321F813 PIPE Contact   Contact
  • [13] PCB311A045F HEAT EXCH(AIR) Contact   Contact
  • [13-24] PCB301A155H HEAT EXCH ASSY(AIR Contact Notes: UPPER   Contact
  • [14] PCB315D300A HEADER ASSY,GAS Contact   Contact
  • [15] SSA315A036B DISTRIBUTOR Contact   Contact
  • [15-23] PCB315A125A DISTRIBUTOR ASSY Contact   Contact
  • [16] PCB315B844A CAPILLARY(1) Contact Notes: !D2.4XD4.0 L300   Contact
  • [17] PCB315B845A CAPILLARY(2) Contact Notes: !D2.2XD4.0 L300   Contact
  • [18] PCB315B846A CAPILLARY(3) Contact Notes: !D2.8XD4.0 L300   Contact
  • [19] PCB315B847A CAPILLARY(4) Contact Notes: !D2.8XD4.0 L300   Contact
  • [20] PCB315B848A CAPILLARY(5) Contact Notes: !D2.8XD4.0 L300   Contact
  • [21] PCB315B849A CAPILLARY(6) Contact Notes: !D2.8XD4.0 L300   Contact
  • [22] PCB315B850A CAPILLARY(7) Contact Notes: !D2.8XD4.0 L300   Contact
  • [23] PCB315B851A CAPILLARY(8) Contact Notes: !D2.8XD4.0 L300   Contact
  • [24] PCB321F747 PIPE Contact   Contact
  • [25] SSA351A229 ACCUMULATOR In Stock
  • [26-27] PCB321F838A PIPE(OIL) Contact   Contact
  • [27] PCB315B303C CAPILLARY In Stock Notes: !D2.2XD3.2 L300
  • [28] SSA382A249A VALVE,S(2WAY) In Stock Notes: SV1, SV1 Show Image
  • [28-29] PCB382A196 VALVE ASSY(2WAY) Contact   Contact
  • [29] PCB315B817 CAPILLARY Contact Notes: !D1.3XD3.2 L500, !D1.3XD3.2 L500   Contact
  • [30-31] PCB352A004B RECEIVER ASSY In Stock
  • [31] SSA326A003B PLUG Contact   Contact
  • [32-36] PCA321C578B PIPE ASSY In Stock
  • [32-37] PCB354A042B SEPARATOR ASSY,OIL In Stock
  • [33] SSA382A249A VALVE,S(2WAY) In Stock Notes: SV1, SV6 Show Image
  • [34] SSA357A048 STRAINER Contact   Contact
  • [35] PCA315B790 CAPILLARY Contact Notes: !D2.2XD3.2 L340, !D2.2XD3.2 L340   Contact
  • [36] PCB315B832 CAPILLARY Contact Notes: !D1.1XD3.2 L500, !D1.1XD3.2 L500   Contact
  • [37] SSA532A083 SWITCH HP In Stock Notes: (HIGH PRESSURE SWITCH) - 63H1, 63H1-1 Show Image
  • [38] SSA382C086 VALVE,S(4WAY) In Stock Notes: 20S, 20S
  • [39] SSA381A860C VALVE, SERVICE (3/4) In Stock Notes: GAS, GAS
  • [40] PCB381A077B SERVICE VALVE In Stock Notes: LIQ. Show Image
  • [41] PCB116A633 BRACKET Contact   Contact
  • [42] SSA551D022C SENSOR LP In Stock Notes: LOW PRESSURE TRANSDUCER, PSL Show Image
  • [43] SSA327B067 VALVE,SERVICE In Stock Show Image
  • [44] SSA327B067A VALVE,SERVI Contact   Contact
  • [45] SSA385A018A VALVE CHECK In Stock
  • [46] PCB315A122A DISTRIBUTOR ASSY Contact   Contact
  • [47] SSA387F044 EXP VALVE In Stock Notes: EEVH Show Image
  • [47-49] PCB387F080J VALVE ASSY,EXPANSI Contact   Contact
  • [48] SSA357A005AF STRAINER Contact   Contact
  • [49] SSA357A024J STRAINER Contact   Contact
  • [50] PCB303A023 HEAT EXCH(LIQ) Contact   Contact
  • [50-53] PCB303A022C HEAT EXCH ASSY(LIQ Contact   Contact
  • [51] SSA387F051 VALVE,BODY(EXP) In Stock Notes: EEV BODY ONLY, EEVSC
  • [52] SSA357A024K STRAINER Contact   Contact
  • [53] SSA357A007A STRAINER In Stock Substitute: SSA357A005AH Show Image
  • [54] PCB141A039 PLATE ASSY,BAFFLE Contact   Contact
  • [55] SSA551D024A SENSOR HP In Stock Notes: HIGH PRESSURE TRANSDUCER - PSH, PSH Show Image
  • [56] PCB382F107Z COIL ASSY,SOLENOID Contact Notes: FOR 20S, FOR 20S   Contact
  • [57] PCB382F105AB COIL ASSY,SOLENOID Contact Notes: FOR SV1, FOR SV1   Contact
  • [58] PCB382F105Z COIL ASSY,SOLENOID In Stock Notes: FOR SV6, FOR SV6 Show Image
  • [59] SSA382F210Z COIL,SOLENO In Stock Notes: FOR EEVSC
  • [60] SSA382F229F COIL,SOLENOID In Stock Notes: FOR EEVH Show Image
  • [61] PCB381A074A VALVE,SERVICE(3/8 Contact Notes: LIQ.   Contact
  • [62] SSA382A219 VALVE(2WAY) In Stock Notes: SV11
  • [62-65] PCB382A194 VALVE ASSY(2WAY) Contact   Contact
  • [63] SSA382A271 VALVE,S(2WAY) Out of Stock Notes: SV4, SV12
  • [64] SSA357A005B STRAINER In Stock Show Image
  • [65] PCB315B838 CAPILLARY Contact Notes: !D3.5XD5.0 L500   Contact
  • [66] PCB382F107AB COIL ASSY,SOLENOID Contact Notes: FOR SV11   Contact
  • [67] PCB382F107AC COIL ASSY,SOLENOID Contact Notes: FOR SV12   Contact
  • [68] PCB532A006 SWITCH ASSY,HP Contact Notes: 63H1-R1   Contact
  • [69] SSA532A032CM SWITCH H P Contact Notes: 63H1-R2   Contact
  • [70] PCB504A292 WIRING ASSY Contact Notes: 63H1-R2,CNQ3- 63H1-R1,63H1-R1,63H1-R2   Contact
