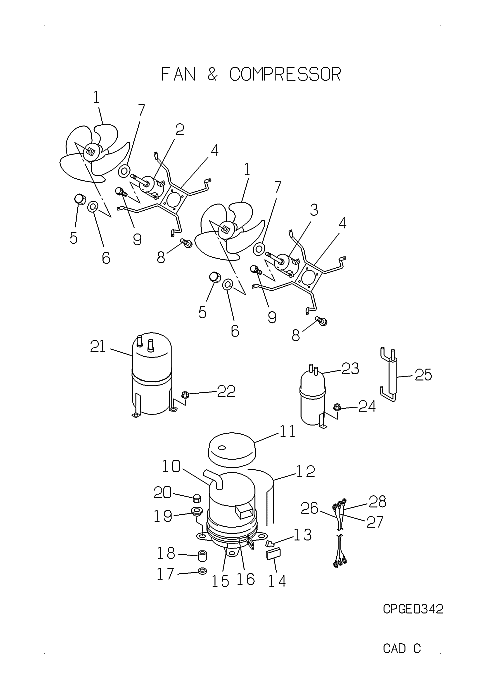

FDCP281HKXE2DKT FAN AND COMPRESSOR

FDCP281HKXE2DKT FAN AND COMPRESSOR

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
SSA431B206
FAN PROPELLER
[2] In Stock
SSA511A611R
FAN MOTOR
Notes: LEFT D:6202ZZC3 B:6201ZZC3
[3] In Stock
SSA511A611S
MOTOR,FAN
Notes: FM02***KEEP PLUG FROM OLD MOTOR*** - RIGHT D:6202ZZC3 B:6201ZZC3
[4] Out of Stock
PCB116A372
MOTOR BRAKE
[5] In Stock
SSA914H014C
NUTCAP SUS
Notes: 1pc Show Image
SSA914H014C
[6] In Stock
W220G12
WASHER SUS
Notes: 1pc ONLY
[7] In Stock
W200G14
WASHER
Notes: 1pc ONLY
[8] In Stock
SSA911D207BA
BOLT&WASHER
Notes: M6X16
[9] In Stock
SSA911D207BB
BOLT&WA
Notes: M6X25
[10] Out of Stock
AAD201A027HG
CB125HV2
Substitute: USED FOR FDCP281HKXE2D-KT (407C)
[11] Contact
PCB151D052
INHSOLA COM
Contact
Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION
[12] Contact
PCB151D053C
INSULATION,
Contact
[13] In Stock
ASA561B002
BLOCK,TERMINAL
[15] In Stock
PCA541B001AG
HEATER ASSY
Show Image
PCA541B001AG
[16] In Stock
PCA541B001AH
HEATER ASSY
Show Image
PCA541B001AH
[17] Contact
SSA935A125
SPACER
Contact
[18] Contact
SSA941C313
CUSHION,RUB
Contact
[19] Contact
SSA941C314
CUSHION,RUB
Contact
[20] Contact
SSA914H014B
NUT
Contact
Notes: 1pc
[21] Contact
SSA351A155B
ACCUMLATOR
Contact
[22] Contact
SSA914C005C
NUT
Contact
Notes: 1pc, FOR ACCUMULATOR
[23] Contact
SSA352A085B
RECEIVER
Contact
[24] In Stock
SSA914C005B
NUT FLANGE
Notes: 1pc, FOR RECEIVER
[25] Contact
PCB354A011
SEPARATOR
Contact
[26] Out of Stock
SAC567R103R
CORD IV
Notes: !U
[27] Out of Stock
SAC567R107W
CORD IV
Notes: !V
[28] Contact
SAC567R130L
CORD,IV
Contact
Notes: !W
SKU: FDCP281HKXE2DKT FAN AND COMPRESSOR Category:
