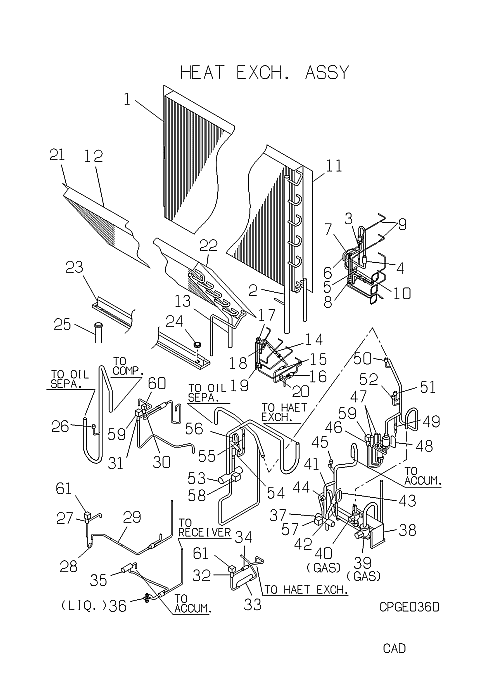

FDCP280HKXRE2A HEAT EXCH. ASSY

FDCP280HKXRE2A HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB311A010P
HEAT EX,AIR
Contact
[1-11] Contact
PCB301A031H
HEAT EXCH A
Contact
[2] Contact
PCB315D026R
HEADER ASSY,GAS(R)
Contact
[3] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[3-9] Contact
PCB304A043B
PIPING ASSY
Contact
[4] Out of Stock
SSA357A059B
STRAINER
[5] Contact
SSA382A089
VALVE 2WAY
Contact
[6] Contact
P210V11X600
CAPILLARY
Contact
Substitute: P210V11A100 Notes: !D1.1XD2.5 L600
[7] Contact
SSA387A094
EXP FDCP
Contact
[8] Contact
SSA315A251A
DISTRIBUTOR
Contact
[8-9] Contact
PCB315A007B
DISTRIBUTOR
Contact
[9] Contact
SSA315B009BA
CAPILLARY T
Contact
Substitute: P210V26A000 Notes: !D2.6XD4.0 L100
[10] Contact
PCB382F018C
COIL,SOLENO
Contact
Notes: FOR SVL
[11] Contact
PCB141A010
PLTAE,BAFFLE
Contact
Notes: RIGHT
[12] Contact
PCB311A010H
HEAT EX,AIR
Contact
[12-22] Contact
PCB301A030D
HEAT EX,AIR
Contact
[13] Contact
PCB315D027L
HEADER ASSY,GAS(F)
Contact
[14] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[14-19] Contact
PCB304A042B
PIPING ASSY
Contact
[15] Out of Stock
SSA357A059B
STRAINER
[16] Contact
SSA382A089
VALVE 2WAY
Contact
[17] Contact
SSA387A094
EXP FDCP
Contact
[18] Contact
P210V11X600
CAPILLARY
Contact
Substitute: P210V11A100 Notes: !D1.1XD2.5 L600
[19] Contact
SSA315A250D
DISTRIBUTOR
Contact
[20] Contact
PCB382F018B
COIL,SOLENO
Contact
Notes: FOR SVS
[21] Contact
PCB141A011
BAFLF PLATE
Contact
Notes: LEFT
[22] Contact
PCB141A011A
BAFLF PLATE
Contact
Notes: RIGHT
[23-24] Contact
PCB454A002G
PAN,DRAIN
Contact
[24] Contact
SSA947A031C
GROMMET
Contact
Notes: D35
[25] Contact
PCB423B001A
HOSE DRAIN
Contact
[26] In Stock
SSA532A032CJ
SWITCH H P
Show Image
SSA532A032CJ
[27] In Stock
SSA382A070
VALVE 2WAY
Notes: DOES NOT COME WITH "STRAINER" Show Image
SSA382A070
[27-29] Contact
PCB382A037
VALVE,2WA A
Contact
[28] Contact
P210V35X400
CAPILLARY
Contact
Notes: !D3.5XD5.0 L400
[29] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[30] In Stock
SSA382A070
VALVE 2WAY
Notes: DOES NOT COME WITH "STRAINER" Show Image
SSA382A070
[31] In Stock
SSA382A099
VALVE
[32] In Stock
SSA382A070
VALVE 2WAY
Notes: DOES NOT COME WITH "STRAINER" Show Image
SSA382A070
[32-34] Contact
PCB382A036A
VALVE,2WA A
Contact
[33] Contact
PCB315B104A
CAPILLARY ASSY
Contact
[34] Out of Stock
SSA357A059B
STRAINER
[35] Contact
SSA383D012L
VALVE,DPR
Contact
[36] Contact
SSA381A078A
VALVE
Contact
Notes: LIQ.
[37] In Stock
SSA382C028
VALVE 4WAY
Notes: 20SS Show Image
SSA382C028
[38] Contact
PCB116A130
BRACKET(S,V
Contact
[39] Contact
SSA381A728
VALVE SERV
Contact
Notes: GAS(SUCTION)
[40] Out of Stock
SSA381A721
VALVE SERVI
[41] Contact
SSA357A008A
STRAINER
Contact
Substitute: ZZ60571A
[41-43] Contact
PCB321A589
PIPE(E)
Contact
[42] In Stock
SSA385A015
VALVE CHECK
Show Image
SSA385A015
[43] Contact
P210V18X400
CAPILLARY
Contact
Notes: !D1.8XD3.2 L400
[44] Contact
SSA327B001A
VALVE.SERVC
Contact
Substitute: RB87026C
[45] Contact
PCB532B001
SWITCH LP
Contact
Notes: 63L
[46] In Stock
SSA382A099
VALVE
[46-49] Contact
PCB382A042A
VALVE,2WA A
Contact
[47] Contact
SSA383D012D
VALVE,DPR
Contact
[48] Contact
P210V20X300
CAPILA,TUBE
Contact
Substitute: P210V20A500 Notes: !D2.0XD3.2 L300
[48-49] Contact
PCB315B109
CAPILLARY ASSY
Contact
[49] Contact
SSA357A008A
STRAINER
Contact
Substitute: ZZ60571A
[50] Out of Stock
SSA532A032HB
SWITCH H P
Notes: 63H2
[51] Contact
PCB532A002F
SWITCH HP
Contact
Notes: 63H3
[52] Contact
PCB532A002G
SWITCH HP
Contact
Notes: 63H4
[53] Out of Stock
SSA382C044
VALVE 4WAY
Substitute: OUT OF PRODUCTION Notes: 20S Show Image
SSA382C044
[54] Contact
SSA357A008A
STRAINER
Contact
Substitute: ZZ60571A
[54-56] Contact
PCB321A590A
PIPE(E)
Contact
[55] In Stock
SSA385A015
VALVE CHECK
Show Image
SSA385A015
[56] Contact
P210V18X400
CAPILLARY
Contact
Notes: !D1.8XD3.2 L400
[57] In Stock
PCB382F015B
COIL SOLENO
Notes: 20SS Show Image
PCB382F015B
[58] In Stock
PCB382F015C
COIL SOLENO
Notes: 20SL, 20 SL Show Image
PCB382F015C
[59] In Stock
SSA382F100M
COIL SOLENO
Notes: 20VU,SV3 Show Image
SSA382F100M
[60] In Stock
SSA382F147A
COILSOLENO VALVE
Notes: 20VF, SV1,2 Show Image
SSA382F147A
[61] In Stock
SSA382F147A
COILSOLENO VALVE
Notes: 20VF, SV1,2 Show Image
SSA382F147A
