FDCP280HKXE2D FAN AND COMPRESSOR

FDCP280HKXE2D FAN AND COMPRESSOR

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

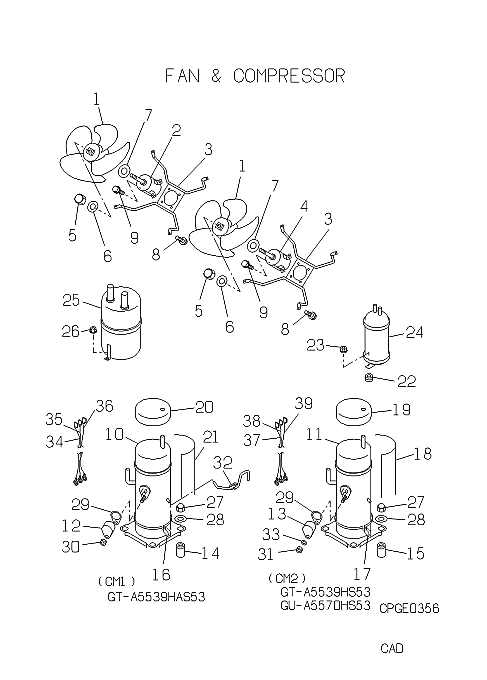

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
SSA431B206
FAN PROPELLER
[2] In Stock
SSA511A611R
FAN MOTOR
Notes: LEFT D:6202ZZC3 B:6201ZZC3
[3] Out of Stock
PCB116A372
MOTOR BRAKE
[4] In Stock
SSA511A611S
MOTOR,FAN
Notes: FM02***KEEP PLUG FROM OLD MOTOR*** - RIGHT D:6202ZZC3 B:6201ZZC3
[5] In Stock
SSA914H014C
NUTCAP SUS
Notes: 1pc Show Image
SSA914H014C
[6] In Stock
W220G12
WASHER SUS
Notes: 1pc ONLY
[7] In Stock
W200G14
WASHER
Notes: 1pc ONLY
[8] In Stock
SSA911D207BA
BOLT&WASHER
Notes: M6X16
[9] In Stock
SSA911D207BB
BOLT&WA
Notes: M6X25
[10] Out of Stock
AGT201A312SM
GTA5539HAS5
Notes: GT-A5539HAS53, ***COMPRESSORS CANNOT BE RETURNED***
[13] Out of Stock
AGR947K002
TERMINAL C
[14] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[15] Contact
SSA941C158
CUSHION RUB
Contact
[16] In Stock
PCA541B011N
HEATER,CRAN
Show Image
PCA541B011N
[17] In Stock
PCA541B011T
HEATER,CRAN
Show Image
PCA541B011T
[19] Contact
PCB151D064A
INSULATION,
Contact
[20] Out of Stock
PCB151D064
COMP INSULA
[21] Out of Stock
PCB151D065
COMP INSUL,
[22] In Stock
SSA941B003
CUSHION RUB
Notes: FOR ACCUMULATOR
[23] In Stock
SSA914C005B
NUT FLANGE
Notes: 1pc, FOR RECEIVER
[24] In Stock
SSA352A078A
RECEIVER ASSY
[25] Contact
SSA351A186
ACCLMULATOR
Contact
