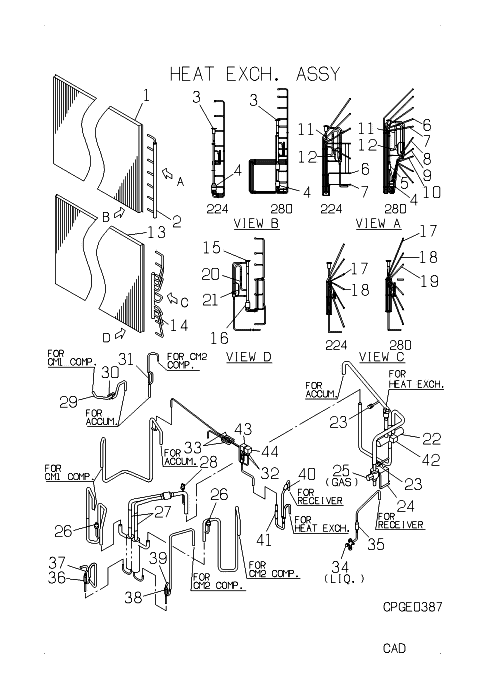

FDCP280HKXE2D-B HEAT EXCH. ASSY

FDCP280HKXE2D-B HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB311A020G
HEAT EXCH
Contact
Notes: !
[1-12] Out of Stock
PCB301A063D
HEAT EXCH
Notes: UPPER
[2] Contact
PCB315D067
HEADER ASSY,GAS
Contact
Notes: !
[3] Contact
SSA387A094
EXP FDCP
Contact
[3-12] Contact
PCB387F016
VALVE ASSY
Contact
[4] Contact
SSA315A250D
DISTRIBUTOR
Contact
[4-10] Out of Stock
PCB315A058
DISTRI ASSY
[5] Contact
SSA315A250C
DISTRIBUTOR
Contact
[6] Contact
PCB315B529
CAPILLARY
Contact
Notes: !D2.4XD4.0 L200
[7] Contact
PCB315B530
CAPILLARY
Contact
Notes: !D2.4XD4.0 L200
[8] Contact
PCB315B531
CAPILLARY
Contact
Notes: !D2.4XD4.0 L200
[9] Contact
PCB315B532
CAPILLARY
Contact
Notes: !D2.4XD4.0 L200
[10] Contact
PCB315B533
CAPILLARY
Contact
Notes: !D2.6XD4.0 L100
[11] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[12] Contact
PCB315B344
CAPILARY AS
Contact
Notes: !D1.1XD2.5 L600
[13] Contact
PCB311A020A
HEAT EXCH
Contact
Notes: !
[13-21] Contact
PCB301A063A
HEAT EXCH
Contact
Notes: LOWER
[14] Contact
PCB315D068
HEADER ASSY
Contact
Notes: !
[15] Contact
SSA387A094
EXP FDCP
Contact
[15-21] Contact
PCB387F015
VALVE ASSY
Contact
[16] Contact
SSA315A251A
DISTRIBUTOR
Contact
[16-19] Out of Stock
PCB315A059
DISTRI ASSY
[17] Contact
P210V28X200
CAPILLARY
Contact
Notes: !D2.8XD4.0 L200
[18] Contact
PCB315B534
CAPILLARY
Contact
Notes: !D2.8XD4.0 L200
[19] Contact
PCB315B535
CAPILLARY
Contact
Notes: !D2.6XD4.0 L150
[20] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[21] Contact
PCB315B344
CAPILARY AS
Contact
Notes: !D1.1XD2.5 L600
[22] In Stock
SSA382C075
VALVE 4WAY
Notes: 20S, 20s - 4 way valve
[23] Out of Stock
SSA327B059
VALVE SERVI
[24] Contact
PCB116A374
BRACKET(S,V
Contact
[25] Contact
SSA381A722A
VALVE
Contact
Notes: GAS
[26] In Stock
SSA532A032CJ
SWITCH H P
Notes: 63H1-1,2 Show Image
SSA532A032CJ
[27] Out of Stock
SSA385A035
VALVE CHECK
[28] Out of Stock
SSA532A032HB
SWITCH H P
Notes: 63H2
[29-30] Contact
PCB321D417
PIPE(REF)
Contact
[30] Contact
PCB315B303
CAPILA,ASSY
Contact
Notes: !D2.0XD3.2 L300
[31] Contact
PCB315B437
CAPILARY AS
Contact
Notes: !D2.4XD4.0 L300
[32] In Stock
SSA382A088
VALVE(2WAY)
Notes: SV1,2, SV1 Show Image
SSA382A088
[32-33] Out of Stock
PCB382A088
VALVE ASSY(2WAY)
[33] Contact
PCB315B304
CAPILARY AS
Contact
Notes: !D1.6XD3.2 L500
[34] Out of Stock
SSA381A078
VALVE
Notes: LIQUID
[35] Contact
SSA357A002B
STRAINER
Contact
[36] Contact
SSA357A010G
STRAINER
Contact
[36-37] Out of Stock
PCB315B568B
CAPILLARY A
[37] Contact
PCB315B305A
CAPILARY AS
Contact
Notes: !D1.2XD2.5 L500
[38] Contact
SSA357A010G
STRAINER
Contact
[38-39] Out of Stock
PCB315B628
CAPILLARY A
[39] Contact
PCB315B305A
CAPILARY AS
Contact
Notes: !D1.2XD2.5 L500
[40] In Stock
SSA357A007A
STRAINER
Show Image
SSA357A007A
[41] In Stock
SSA357A059B
STRAINER
[42] Out of Stock
PCB382F065N
COIL,SOLENO
Notes: FOR 20S
[43] Out of Stock
PCB382F065R
COIL,SOLENO
Notes: FOR SV1
[44] Out of Stock
PCB382F065S
COIL,SOLENO
Notes: FOR SV2
