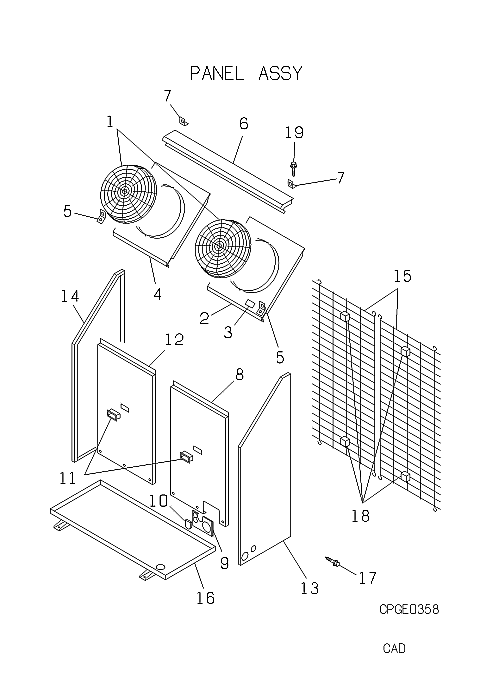

FDCP224HKXE2D PANEL ASSY

FDCP224HKXE2D PANEL ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB131A012 GUARD FAN In Stock
  • [2-3] PCB433A022 BELLMOUTH Contact Notes: RIGHT   Contact
  • [3] RCG011H004A LABEL,NOTIC In Stock Show Image
  • [4] PCB433A021 BELLMOUTH Contact Notes: LEFT   Contact
  • [5] PCB116A046F BRACKET SUS Contact   Contact
  • [6] PCB124A019 TOP PANEL Contact   Contact
  • [7] PCB116A046D BRACKET SUS Contact   Contact
  • [8] PCB122A056 PANEL FRONT Contact Notes: RIGHT   Contact
  • [9-10] PCB142A253A COVER Contact   Contact
  • [10] SSA947B014A GROMMET Contact   Contact
  • [11] SSA944B002F HANDLE Contact   Contact
  • [12] PCB122A056A PANEL FRONT Contact Notes: LEFT   Contact
  • [13] PCB123A065A SIDE PANEL Contact   Contact
  • [14] PCB123A066 SIDE PANEL Contact   Contact
  • [15] PCB131A011 GUARD FIN Contact   Contact
  • [16] PCB111A042A BASE ASSY Contact   Contact
  • [17] SSA913D012A SCREW 5/14 Contact Notes: 1PC ONLY, 5X14   Contact
  • [18] PCA941G002A CUSHION RU Contact   Contact
  • [19] SSA911D207CA BOLT 8X16SU Contact Notes: M8X16   Contact
SKU: FDCP224HKXE2D PANEL ASSY Category:
