FDCP224HKXE2D-K HEAT EXCH. ASSY

FDCP224HKXE2D-K HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

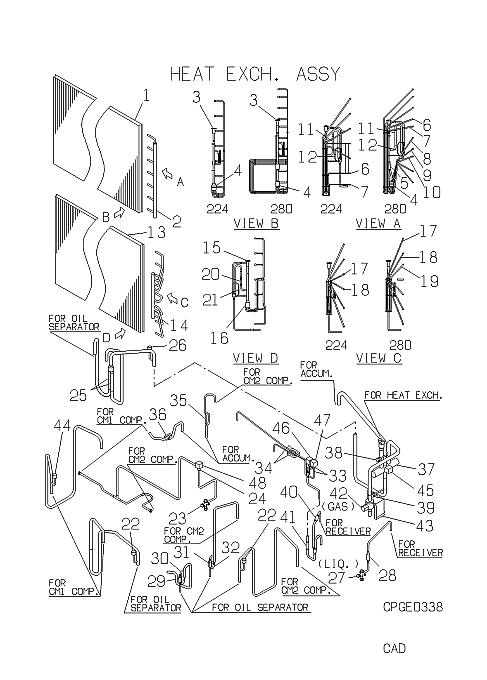

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB311A023J
HEAT EXCH
Contact
[1-12] Contact
PCB301A065D
HEAT EXCH
Contact
Notes: UPPER, PCB301A065D
[2] Contact
PCB315D075
HEADER ASSY,GAS
Contact
[3] In Stock
SSA387A093
EXP FDCP
Show Image
SSA387A093
[3-12] Contact
PCB387F016B
VALVE ASSY
Contact
[4] Contact
SSA315A251A
DISTRIBUTOR
Contact
[4-7] Out of Stock
PCB315A055A
DISTRI ASSY
[6] Contact
PCB315B548
CAPILLARY
Contact
Notes: !D2.8XD4.0 L200
[7] Contact
PCB315B549
CAPILLARY
Contact
Notes: !D2.8XD4.0 L200
[11] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[12] Contact
PCB315B344
CAPILARY AS
Contact
Notes: !D1.1XD2.5 L600
[13] Contact
PCB311A023A
HEAT EXCH
Contact
[13-21] Contact
PCB301A065F
HEAT EXCH
Contact
Notes: LOWER
[14] Contact
PCB315D077
HEADER ASSY,GAS
Contact
[15] In Stock
SSA387A093
EXP FDCP
Show Image
SSA387A093
[15-21] Contact
PCB387F015A
VALVE ASSY
Contact
[16] Contact
SSA315A251
DISTRIBUTOR
Contact
[16-18] Out of Stock
PCB315A053
DISTRI ASSY
[17] Contact
PCB315B536
CAPILLARY
Contact
Notes: !D3.0XD4.0 L200
[18] Contact
PCB315B537
CAPILLARY
Contact
Notes: !D3.0XD4.0 L100
[20] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[21] Contact
PCB315B344
CAPILARY AS
Contact
Notes: !D1.1XD2.5 L600
[22] In Stock
SSA532A032CJ
SWITCH H P
Show Image
SSA532A032CJ
[23] Contact
SSA381A077A
VALVE SERVI
Contact
[24] Contact
SSA382A148
VALVE 2WAY
Contact
Notes: SV3
[25] Out of Stock
SSA385A035
VALVE CHECK
[26] Out of Stock
SSA532A032HB
SWITCH H P
Notes: 63H2
[27] Out of Stock
SSA381A078
VALVE
Notes: LIQUID
[28] Contact
SSA357A002B
STRAINER
Contact
[29] Contact
SSA357A010G
STRAINER
Contact
[29-30] Out of Stock
PCB315B568B
CAPILLARY A
[30] Contact
PCB315B305A
CAPILARY AS
Contact
Notes: !D1.2XD2.5 L500
[31] Contact
SSA357A010G
STRAINER
Contact
[31-32] Out of Stock
PCB315B628
CAPILLARY A
[32] Contact
PCB315B305A
CAPILARY AS
Contact
Notes: !D1.2XD2.5 L500
[33] In Stock
SSA382A088
VALVE(2WAY)
Notes: SV1 Show Image
SSA382A088
[33-34] Out of Stock
PCB382A088
VALVE ASSY(2WAY)
[34] Contact
PCB315B304
CAPILARY AS
Contact
Notes: !D1.6XD3.2 L500
[35] Contact
PCB315B437
CAPILARY AS
Contact
Notes: !D2.4XD4.0 L300
[36] In Stock
PCB315B303C
CAPILLARY
Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image
PCB315B303C
[37] In Stock
SSA382C075
VALVE 4WAY
Notes: 20S, 20s - 4 way valve
[38] Out of Stock
SSA327B059
VALVE SERVI
[39] In Stock
SSA327B003
VALVE,SERVICE
Show Image
SSA327B003
[40] In Stock
SSA357A007A
STRAINER
Show Image
SSA357A007A
[41] In Stock
SSA357A059B
STRAINER
[42] Contact
SSA381A722
VALVE
Contact
Notes: GAS
[43] Contact
PCB116A318
BRACKET(S,V
Contact
[44] Contact
SSA532B024A
SWITCH LP
Contact
Notes: 63L
[45] Out of Stock
PCB382F065N
COIL,SOLENO
[46] Out of Stock
PCB382F065R
COIL,SOLENO
[47] Out of Stock
PCB382F065S
COIL,SOLENO
[48] Contact
PCB382F065T
COIL ASSY,SOLENOID
Contact
Notes: FOR SV3
