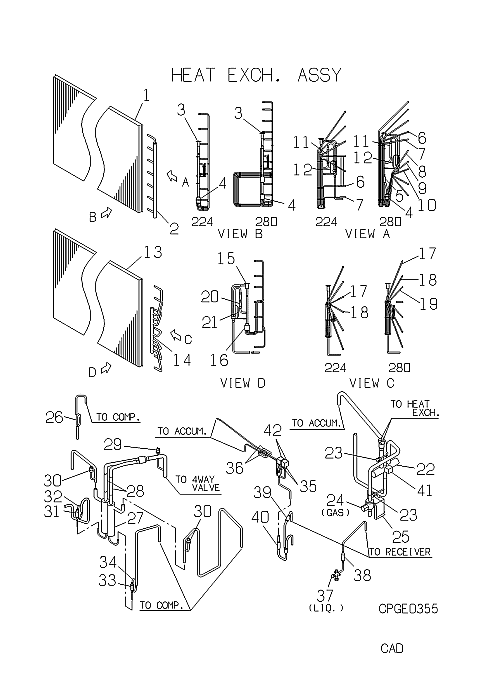

FDCP224HKXE2D HEAT EXCH. ASSY

FDCP224HKXE2D HEAT EXCH. ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB311A023J HEAT EXCH Contact   Contact
  • [1-12] PCB301A065D HEAT EXCH Contact Notes: PCB301A065D, UPPER   Contact
  • [2] PCB315D075 HEADER ASSY,GAS Contact   Contact
  • [3] SSA387A093 EXP FDCP In Stock Show Image
  • [3-12] PCB387F016B VALVE ASSY Contact   Contact
  • [4] SSA315A251A DISTRIBUTOR Contact   Contact
  • [4-7] PCB315A055A DISTRI ASSY Contact   Contact
  • [6] PCB315B548 CAPILLARY Contact Notes: !D2.8XD4.0 L200   Contact
  • [7] PCB315B549 CAPILLARY Contact Notes: !D2.8XD4.0 L200   Contact
  • [11] SSA385A052 VALVE,CHECK In Stock Show Image
  • [12] PCB315B344 CAPILARY AS Contact Notes: !D1.1XD2.5 L600   Contact
  • [13] PCB311A023A HEAT EXCH Contact   Contact
  • [13-21] PCB301A065F HEAT EXCH Contact Notes: LOWER   Contact
  • [14] PCB315D077 HEADER ASSY,GAS Contact   Contact
  • [15] SSA387A093 EXP FDCP In Stock Show Image
  • [15-21] PCB387F015A VALVE ASSY Contact   Contact
  • [16] SSA315A251 DISTRIBUTOR Contact   Contact
  • [16-18] PCB315A053 DISTRI ASSY Contact   Contact
  • [17] PCB315B536 CAPILLARY Contact Notes: !D3.0XD4.0 L200   Contact
  • [18] PCB315B537 CAPILLARY Contact Notes: !D3.0XD4.0 L100   Contact
  • [20] SSA385A052 VALVE,CHECK In Stock Show Image
  • [21] PCB315B344 CAPILARY AS Contact Notes: !D1.1XD2.5 L600   Contact
  • [22] SSA382C075 VALVE 4WAY In Stock Notes: 20S - 4 WAY VALVE, 20S
  • [22-25] PCB382C050D VALVE ASSY Contact   Contact
  • [23] SSA327B059 VALVE SERVI Contact   Contact
  • [24] SSA381A722 VALVE Contact Notes: GAS   Contact
  • [25] PCB116A374 BRACKET(S,V Contact   Contact
  • [26] PCB315B437 CAPILARY AS Contact Notes: !D2.4XD4.0 L300   Contact
  • [27] PCB354A014 SEPARATOR ASSY,OIL Contact   Contact
  • [28] SSA385A035 VALVE CHECK Contact   Contact
  • [29] SSA532A032HB SWITCH H P Contact Notes: 63H2   Contact
  • [30] SSA532A032CJ SWITCH H P In Stock Show Image
  • [31] SSA357A010G STRAINER Contact   Contact
  • [31-32] PCB315B568B CAPILLARY A Contact   Contact
  • [32] PCB315B305A CAPILARY AS Contact Notes: !D1.2XD2.5 L500   Contact
  • [33] SSA357A010G STRAINER Contact   Contact
  • [33-34] PCB315B628 CAPILLARY A Contact   Contact
  • [34] PCB315B305A CAPILARY AS Contact Notes: !D1.2XD2.5 L500   Contact
  • [35] SSA382A088 VALVE(2WAY) In Stock Notes: SV1, SV1 Show Image
  • [35-36] PCB382A088 VALVE ASSY(2WAY) Contact   Contact
  • [36] PCB315B304 CAPILARY AS Contact Notes: !D1.6XD3.2 L500   Contact
  • [37] SSA381A078 VALVE Contact Notes: LIQUID   Contact
  • [37-38] PCB381A038A VALVE,SERVI Contact   Contact
  • [38] SSA357A002B STRAINER Contact   Contact
  • [39] SSA357A007A STRAINER In Stock Substitute: SSA357A005AH Show Image
  • [40] SSA357A005B STRAINER In Stock Show Image

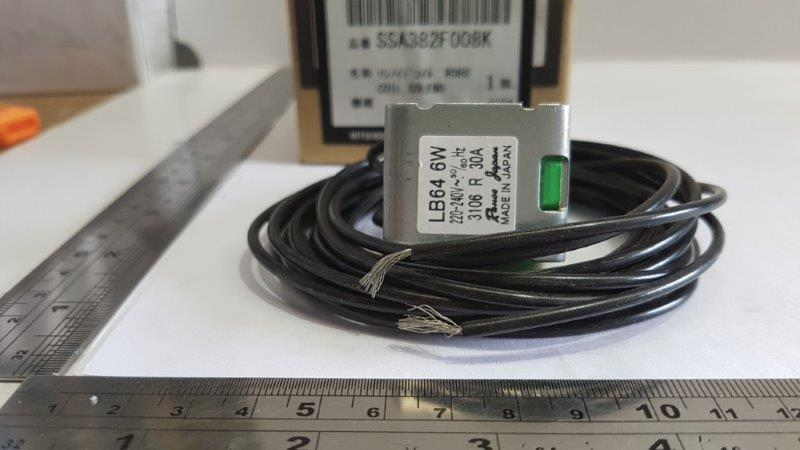

  • [41] SSA382F008K COIL,SOLENO In Stock Notes: FOR 20S Show Image
  • [42] SSA382F415F COIL, 240V Contact Notes: FOR SV1,2   Contact
SKU: FDCP224HKXE2D HEAT EXCH. ASSY Category:
