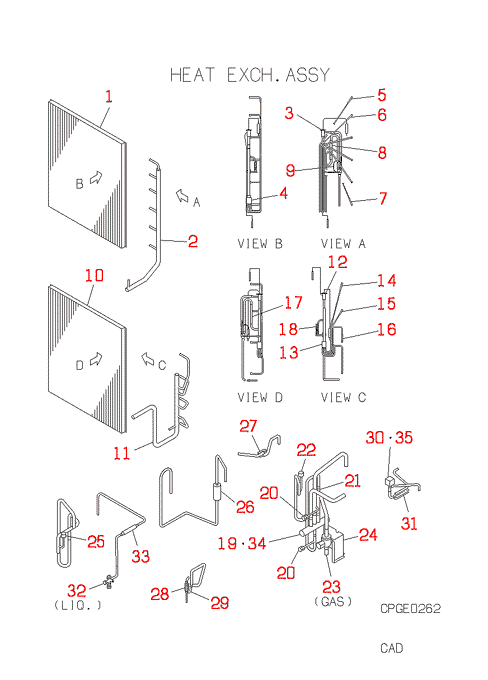

FDCP140HKXE2B HEAT EXCH. ASSY

FDCP140HKXE2B HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-9] Contact
PCB301A075L
HEAT EXCH
Contact
Notes: UPPER
[1] Contact
PCB311A023K
HEAT EXCH
Contact
[2] Contact
PCB315D099
HEADER ASSY
Contact
[3] Out of Stock
SSA387A092
EXP
[3-9] Out of Stock
PCB387F017C
VALVE ASSY
[4] Contact
SSA315A251
DISTRIBUTOR
Contact
[4-7] Contact
PCB315A067A
DISTRI ASSY
Contact
[5] Contact
P210V26X200
CAPILLARY
Contact
Notes: !D2.6XD4.0 L200
[6] Contact
P210V35X200
CAPILLARY
Contact
Notes: !D3.5XD5.0 L200
[7] Contact
P211V30X200
CAPILLARY
Contact
Notes: !D3.0XD4.0 L200
[8] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[9] Contact
PCB315B344
CAPILARY AS
Contact
Notes: !D1.1XD2.5 L600
[10] Contact
PCB311A023C
HEAT EXCH
Contact
[10-18] Contact
PCB301A075F
HEAT EXCH
Contact
Notes: LOWER
[11] Contact
PCB315D101
HEADER ASSY
Contact
[12-18] Contact
PCB387F018C
VALVE EXPAN
Contact
[12] Out of Stock
SSA387A092
EXP
[13] Contact
SSA315A250
DISTRIBUTOR
Contact
[13-16] Contact
PCB315A068A
DISTRI ASSY
Contact
[14] Contact
P210V35X200
CAPILLARY
Contact
Notes: !D3.5XD5.0 L200
[15] Contact
PCB315B526A
CAPILLARY
Contact
Notes: !D3.5XD5.0 L200
[16] Contact
PCB315B527A
CAPILLARY
Contact
Notes: !D3.5XD5.0 L200
[17] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[18] Contact
PCB315B344A
CAPILARY AS
Contact
Notes: !D1.1XD2.5 L600
[19] Out of Stock
SSA382C044
VALVE 4WAY
Substitute: OUT OF PRODUCTION Notes: 20S Show Image
SSA382C044
[19-24] Out of Stock
SSA382C044
VALVE 4WAY
Substitute: OUT OF PRODUCTION Notes: 20S Show Image
SSA382C044
[20] Out of Stock
SSA327B059
VALVE SERVI
[21] Out of Stock
SSA385A035
VALVE CHECK
[22] Out of Stock
SSA532A032HB
SWITCH H P
Notes: 63H2
[23] Out of Stock
SSA381A721
VALVE SERVI
[24] Contact
PCB116A300
BRACKET(S,V
Contact

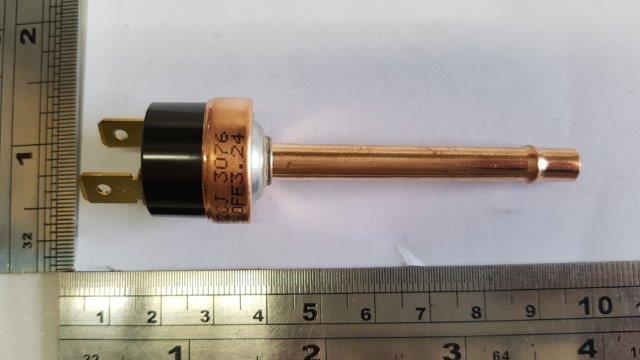

[25] In Stock
SSA532A032CJ
SWITCH H P
Show Image
SSA532A032CJ
[26] Contact
SSA325A001BF
MUFFLER
Contact
[27] Contact
PCB315B303
CAPILA,ASSY
Contact
Notes: !D2.0XD3.2 L300
[28] Contact
SSA357A010G
STRAINER
Contact
[28-29] Contact
PCB315B567
CAPILLARY A
Contact
[29] Contact
PCB315B421
CAPILARY AS
Contact
Notes: !D1.3XD2.5 L500
[30] In Stock
SSA382A088
VALVE(2WAY)
Notes: SV1 Show Image
SSA382A088
[30-31] Contact
PCB382A089
VALVE,2WAY
Contact
[31] Contact
PCB315B304
CAPILARY AS
Contact
Notes: !D1.6XD3.2 L500
[32] Out of Stock
SSA381A077
VALVE SERVI
Notes: LIQUID
[33] Contact
SSA357A009
STRAINER
Contact
Substitute: RE66450
[34] Contact
PCB382F065M
COIL,SOLENO
Contact
Notes: 20S
[35] Contact
PCB382F065P
COIL,SOLENO
Contact
Notes: SV1
SKU: FDCP140HKXE2B HEAT EXCH. ASSY Category:
