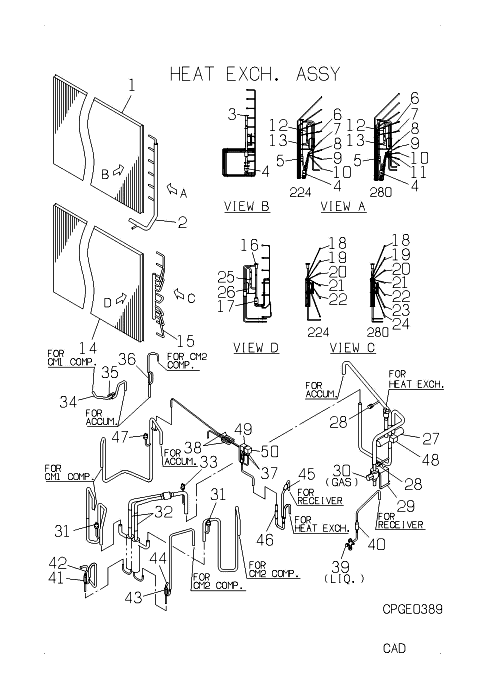

FDCJ280HKXE2DKB HEAT EXCH. ASSY

FDCJ280HKXE2DKB HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB311A024Z
HEAT EXCH(A
Contact
Notes: HEAT EXCH(AIR)
[1-13] Contact
PCB301A080B
HEAT EXCH A
Contact
Notes: HEAT EXCH ASSY(AIR
[2] Contact
PCB315D111
HEADER ASSY
Contact
Notes: HEADER ASSY,GAS
[3] Contact
SSA387A091
EXP
Contact
Notes: VALVE,EXPANSION
[3-13] Contact
PCB387F025
EXP
Contact
Notes: VALVE ASSY,EXPANSI
[4] Contact
SSA315A250D
DISTRIBUTOR
Contact
Notes: DISTRIBUTOR
[4-11] Contact
PCB315A073
DISTRI ASSY
Contact
Notes: DISTRIBUTOR ASSY
[5] Contact
SSA315A250C
DISTRIBUTOR
Contact
Notes: DISTRIBUTOR
[6] Contact
PCB315B521
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: CAPILLARY, !D3.5XD5.0 L200
[7] Contact
PCB315B473
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: CAPILLARY
[8] Contact
PCB315B474
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: CAPILLARY
[9] Contact
PCB315B475
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: CAPILLARY, !D1.6XD3.2 L200, FDCJ280HKXE2D-K Needs !D1.6XD3.2 L500
[10] Contact
PCB315B476
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: CAPILLARY
[11] Contact
PCB315B477
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: CAPILLARY
[12] In Stock
SSA385A052
VALVE,CHECK
Notes: VALVE,CHECK Show Image
SSA385A052
[13] Contact
PCB315B344
CAPILARY AS
Contact
Notes: CAPILLARY
[14] Contact
PCB311A024Y
HEAT EXCH(A
Contact
Notes: HEAT EXCH(AIR)
[14-26] Contact
PCB301A081F
HEAT EXCH A
Contact
Notes: HEAT EXCH ASSY(AIR
[15] Contact
PCB315D113
HEADER ASSY
Contact
Notes: HEADER ASSY,GAS
[16] Contact
SSA387A091
EXP
Contact
Notes: VALVE,EXPANSION
[16-26] Contact
PCB387F026A
VALVE ASSY,EXPANSI
Contact
Notes: VALVE ASSY,EXPANSI
[17] Contact
SSA315A251A
DISTRIBUTOR
Contact
Notes: DISTRIBUTOR
[17-24] Contact
PCB315A074
DISTRI ASSY
Contact
Notes: DISTRIBUTOR ASSY
[18] Contact
P210V22X200
CAPILLARY
Contact
Notes: CAPILLARY, !D2.2XD3.2 L200
[19] Contact
PCB315B478
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: CAPILLARY
[20] Contact
PCB315B479
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: CAPILLARY
[21] Contact
PCB315B480
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: CAPILLARY
[22] Contact
PCB315B481
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: CAPILLARY
[23] Contact
PCB315B482
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: CAPILLARY
[24] Contact
PCB315B522
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: CAPILLARY, !D3.0XD5.0 L200, FDCJ280HKXE2D-K Needs !D3.0XD4.0 L200
[25] Contact
SSA385A041
VALVE
Contact
Notes: VALVE,CHECK
[26] Contact
PCB315B344
CAPILARY AS
Contact
Notes: CAPILLARY
[27] In Stock
SSA382C075
VALVE 4WAY
Notes: VALVE,S(4WAY), 20s - 4 way valve
[28] In Stock
SSA327B003
VALVE,SERVICE
Notes: VALVE,SERVICE Show Image
SSA327B003
[29] Contact
PCB116A318
BRACKET(S,V
Contact
Notes: BRACKET(S,V)
[30] In Stock
SSA381A715D
VALVE SERVI
Notes: VALVE,SERVICE, GAS
[31] In Stock
SSA532A032CF
SWITCH H P
Notes: SWITCH,HP, 63H1-1,2 Show Image
SSA532A032CF
[32] Out of Stock
SSA385A035
VALVE CHECK
Notes: VALVE,CHECK
[33] Out of Stock
SSA532A032HC
SWITCH
Notes: SWITCH,HP, 63H2
[34-35] Contact
PCB321D417
PIPE(REF)
Contact
Notes: PIPE(REF)
[35] Contact
PCB315B303
CAPILA,ASSY
Contact
Notes: CAPILLARY
[36] Contact
PCB315B437
CAPILARY AS
Contact
Notes: CAPILLARY
[37] In Stock
SSA382A088
VALVE(2WAY)
Notes: VALVE(2WAY), SV1 Show Image
SSA382A088
[37-38] Out of Stock
PCB382A088
VALVE ASSY(2WAY)
Notes: VALVE ASSY(2WAY)
[38] Contact
PCB315B304
CAPILARY AS
Contact
Notes: CAPILLARY
[39] Contact
SSA381A035D
VALVE SERVI
Contact
Notes: VALVE,SERVICE, LIQUID
[40] Contact
SSA357A002B
STRAINER
Contact
Notes: STRAINER
[41] Contact
SSA357A010G
STRAINER
Contact
Notes: STRAINER
[41-42] Out of Stock
PCB315B568B
CAPILLARY A
Notes: CAPILLARY ASSY(1)
[42] Contact
PCB315B305A
CAPILARY AS
Contact
Notes: CAPILLARY
[43] Contact
SSA357A010G
STRAINER
Contact
Notes: STRAINER
[43-44] Out of Stock
PCB315B628
CAPILLARY A
Notes: CAPILLARY ASSY(2)
[44] Contact
PCB315B305A
CAPILARY AS
Contact
Notes: CAPILLARY
[45] In Stock
SSA357A007A
STRAINER
Notes: STRAINER Show Image
SSA357A007A
[46] Out of Stock
SSA357A059B
STRAINER
Notes: STRAINER
[47] Contact
SSA532B024A
SWITCH LP
Contact
Notes: SWITCH,LP
[48] Out of Stock
PCB382F065N
COIL,SOLENO
Notes: COIL ASSY,SOLENOID
[49] Out of Stock
PCB382F065R
COIL,SOLENO
Notes: COIL ASSY,SOLENOID
[50] Out of Stock
PCB382F065S
COIL,SOLENO
Notes: COIL ASSY,SOLENOID
SKU: FDCJ280HKXE2DKB HEAT EXCH. ASSY Category:
