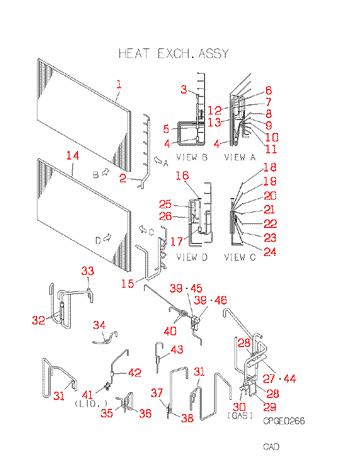

FDCJ280HKXE2B HEAT EXCH. ASSY

FDCJ280HKXE2B HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB311A024J
HEAT EXCH
Contact
[1-13] In Stock
PCB301A080
HEAT EXCH
Notes: UPPER
[2] Contact
PCB315D111
HEADER ASSY
Contact
[3] Contact
SSA387A091
EXP
Contact
[3-13] Contact
PCB387F025
EXP
Contact
[4] Contact
SSA315A250D
DISTRIBUTOR
Contact
[4-11] Contact
PCB315A073
DISTRI ASSY
Contact
[5] Contact
SSA315A250C
DISTRIBUTOR
Contact
[6] Contact
PCB315B521
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: !D3.5XD5.0 L200
[7] Contact
PCB315B473
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: !D2.0XD3.2 L200
[8] Contact
PCB315B474
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: !D2.0XD3.2 L200
[9] Contact
PCB315B475
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: !D1.6XD3.2 L200, !D1.6XD3.2 L200, FDCJ280HKXE2D-K Needs !D1.6XD3.2 L500
[10] Contact
PCB315B476
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: !D1.6XD3.2 L200
[11] Contact
PCB315B477
CAPILARY AS
Contact
Substitute: PCB315A073 Notes: !D3.0XD4.0 L200
[12] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[13] Contact
PCB315B344
CAPILARY AS
Contact
Notes: !D1.1XD2.5 L600
[14] Contact
PCB311A024C
HEAT EXCH
Contact
[14-26] Contact
PCB301A081
HEAT EXCH
Contact
Notes: LOWER
[15] Contact
PCB315D113
HEADER ASSY
Contact
[16] Contact
SSA387A091
EXP
Contact
[16-26] Contact
PCB387F026
EXP
Contact
[17] Contact
SSA315A251A
DISTRIBUTOR
Contact
[17-24] Contact
PCB315A074
DISTRI ASSY
Contact
[18] Contact
P210V22X200
CAPILLARY
Contact
Notes: !D2.2XD3.2 L200
[19] Contact
PCB315B478
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: !D3.5XD5.0 L200
[20] Contact
PCB315B479
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: !D2.6XD4.0 L200
[21] Contact
PCB315B480
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: !D3.0XD5.0 L200
[22] Contact
PCB315B481
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: !D2.6XD4.0 L200
[23] Contact
PCB315B482
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: !D2.2XD3.2 L200
[24] Contact
PCB315B522
CAPILARY AS
Contact
Substitute: PCB315A074 Notes: !D3.0XD5.0 L200, !D3.0XD5.0 L200, FDCJ280HKXE2D-K Needs !D3.0XD4.0 L200
[25] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[26] Contact
PCB315B344
CAPILARY AS
Contact
Notes: !D1.1XD2.5 L600
[27] In Stock
SSA382C075
VALVE 4WAY
Notes: 20S, 20s - 4 way valve
[27-30] Contact
PCB382C040
VALVE ASSY(4WAY)
Contact
[28] In Stock
SSA327B003
VALVE,SERVICE
Show Image
SSA327B003
[29] Contact
PCB116A061B
BRACKET
Contact
[30] In Stock
SSA381A715D
VALVE SERVI
Notes: GAS
[31] In Stock
SSA532A032CF
SWITCH H P
Notes: 63H1, 63H1-1,2 Show Image
SSA532A032CF
[32] Out of Stock
SSA385A035
VALVE CHECK
[33] Out of Stock
SSA532A032HC
SWITCH
Notes: 63H2
[34] In Stock
PCB315B303C
CAPILLARY
Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image
PCB315B303C
[35] Contact
SSA357A010G
STRAINER
Contact
[35-36] Contact
PCB315B568
CAPILLARY ASSY(1)
Contact
[36] Contact
PCB315B305A
CAPILARY AS
Contact
Notes: !D1.2XD2.5 L500
[37] Contact
SSA357A010G
STRAINER
Contact
[37-38] Contact
PCB315B299
CAPILA,ASSY
Contact
[38] Contact
PCB315B305A
CAPILARY AS
Contact
Notes: !D1.2XD2.5 L500
[39] In Stock
SSA382A088
VALVE(2WAY)
Notes: SV1 Show Image
SSA382A088
[39-40] Out of Stock
PCB382A088
VALVE ASSY(2WAY)
[40] Contact
PCB315B304
CAPILARY AS
Contact
Notes: !D1.6XD3.2 L500
[41] Contact
SSA381A035D
VALVE SERVI
Contact
Notes: LIQUID
[42] Contact
SSA357A002B
STRAINER
Contact
[43] Contact
PCB315B300A
CAP 2.4X300
Contact
Notes: !D2.4XD4.0 L300
[44] Out of Stock
PCB382F065N
COIL,SOLENO
[45] Out of Stock
PCB382F065R
COIL,SOLENO
[46] Out of Stock
PCB382F065S
COIL,SOLENO
