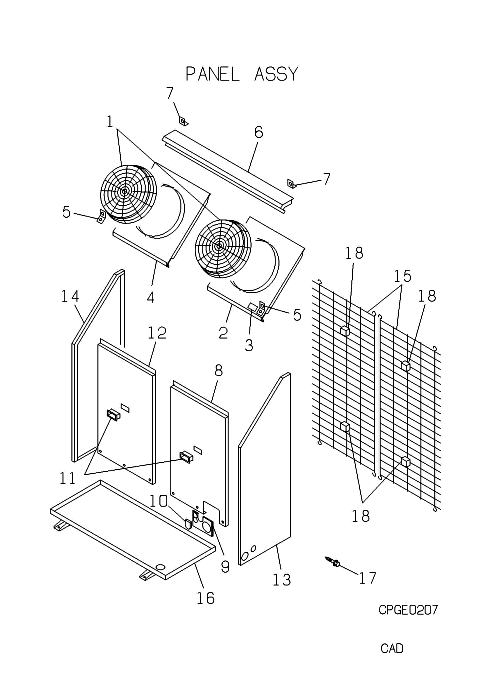

FDCJ280HKXE2-KT PANEL ASSY

FDCJ280HKXE2-KT PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCB131A012
GUARD FAN
[2-3] Contact
PCB433A022
BELLMOUTH
Contact
Notes: RIGHT
[3] In Stock
RCG011H004A
LABEL,NOTIC
Show Image
RCG011H004A
[4] Contact
PCB433A021A
BELLMOUTH
Contact
[5] Out of Stock
PCB116A046F
BRACKET SUS
[6] Contact
PCB124A019
TOP PANEL
Contact
[7] Out of Stock
PCB116A046D
BRACKET SUS
[8] Out of Stock
PCB122A056
PANEL FRONT
Notes: RIGHT
[9-10] Contact
PCB142A253F
COVER
Contact
[10] Contact
SSA947B014A
GROMMET
Contact
[11] Out of Stock
SSA944B002F
HANDLE
[12] Contact
PCB122A056F
PANEL FRONT
Contact
Notes: LEFT
[13] Contact
PCB123A065
SIDE PANEL
Contact
[14] Out of Stock
PCB123A066
SIDE PANEL
[15] Contact
PCB131A008
FIN GUARD
Contact
Substitute: PCB131A011
[16] Contact
PCB111A050A
BASE ASSY
Contact
[17] Contact
SSA913D012A
SCREW 5/14
Contact
Notes: 5X14, 1pc ONLY
[18] Contact
PCA941G002B
CUSHION RU
Contact
