FDCJ280HKXE2-K HEAT EXCH. ASSY

FDCJ280HKXE2-K HEAT EXCH. ASSY

Available Parts

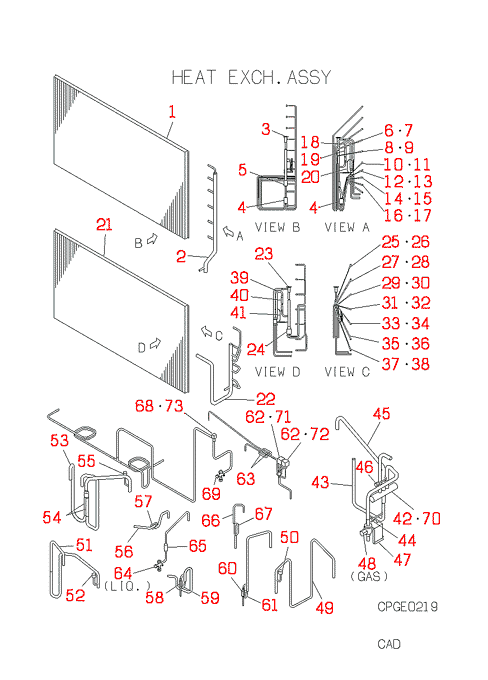

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB311A024J HEAT EXCH Contact   Contact
  • [1-20] PCB301A080 HEAT EXCH In Stock Notes: UPPER
  • [2] PCB315D111 HEADER ASSY Contact   Contact
  • [3] SSA387A091 EXP Contact   Contact
  • [4] SSA315A250D DISTRIBUTOR Contact   Contact
  • [4-17] PCB315A073 DISTRI ASSY Contact   Contact
  • [5] SSA315A250C DISTRIBUTOR Contact   Contact
  • [6-7] PCB321C266 PIPE ASSY Contact   Contact
  • [7] PCB315B521 CAPILARY AS Contact Substitute: PCB315A073 Notes: !D3.5XD5.0 L200, !D3.5XD5.0 L200   Contact
  • [8-9] PCB321C173 PIPE ASSY Contact   Contact
  • [9] PCB315B473 CAPILARY AS Contact Substitute: PCB315A073 Notes: !D2.0XD3.2 L200   Contact
  • [10-11] PCB321C174 PIPE ASSY Contact   Contact
  • [11] PCB315B474 CAPILARY AS Contact Substitute: PCB315A073 Notes: !D2.0XD3.2 L200   Contact
  • [12-13] PCB321C175 PIPE ASSY Contact   Contact
  • [13] PCB315B475 CAPILARY AS Contact Substitute: PCB315A073 Notes: !D1.6XD3.2 L200, FDCJ280HKXE2D-K NEEDS !D1.6XD3.2 L500, !D1.6XD3.2 L200   Contact
  • [14-15] PCB321C176 PIPE ASSY Contact   Contact
  • [15] PCB315B476 CAPILARY AS Contact Substitute: PCB315A073 Notes: !D1.6XD3.2 L200   Contact
  • [16-17] PCB321C177 PIPE ASSY Contact   Contact
  • [17] PCB315B477 CAPILARY AS Contact Substitute: PCB315A073 Notes: !D3.0XD4.0 L200   Contact
  • [18-19] PCB304A078C PIPING ASSY Contact   Contact
  • [19] SSA385A052 VALVE,CHECK In Stock Show Image
  • [20] PCB315B344 CAPILARY AS Contact Notes: !D1.1XD2.5 L600   Contact
  • [21] PCB311A024C HEAT EXCH Contact   Contact
  • [21-41] PCB301A081 HEAT EXCH Contact Notes: LOWER   Contact
  • [22] PCB315D113 HEADER ASSY Contact   Contact
  • [23] SSA387A091 EXP Contact   Contact
  • [24] SSA315A251A DISTRIBUTOR Contact   Contact
  • [24-38] PCB315A074 DISTRI ASSY Contact   Contact
  • [25-26] PCB321C184 PIPE ASSY Contact   Contact
  • [26] P210V22X200 CAPILLARY Contact Notes: !D2.2XD3.2 L200, !D2.2XD3.2 L200   Contact
  • [27-28] PCB321C185 PIPE ASSY Contact   Contact
  • [28] PCB315B478 CAPILARY AS Contact Substitute: PCB315A074 Notes: !D3.5XD5.0 L200   Contact
  • [29-30] PCB321C186 PIPE ASSY Contact   Contact
  • [30] PCB315B479 CAPILARY AS Contact Substitute: PCB315A074 Notes: !D2.6XD4.0 L200   Contact
  • [31-32] PCB321C187 PIPE ASSY Contact   Contact
  • [32] PCB315B480 CAPILARY AS Contact Substitute: PCB315A074 Notes: !D3.0XD5.0 L200   Contact
  • [33-34] PCB321C188 PIPE ASSY Contact   Contact
  • [34] PCB315B481 CAPILARY AS Contact Substitute: PCB315A074 Notes: !D2.6XD4.0 L200   Contact
  • [35-36] PCB321C189 PIPE ASSY Contact   Contact
  • [36] PCB315B482 CAPILARY AS Contact Substitute: PCB315A074 Notes: !D2.2XD3.2 L200   Contact
  • [37-38] PCB321C268 PIPE ASSY Contact   Contact
  • [38] PCB315B522 CAPILARY AS Contact Substitute: PCB315A074 Notes: !D3.0XD5.0 L200, FDCJ280HKXE2D-K NEEDS !D3.0XD4.0 L200, !D3.0XD5.0 L200   Contact
  • [39-40] PCB304A078C PIPING ASSY Contact   Contact
  • [40] SSA385A052 VALVE,CHECK In Stock Show Image
  • [41] PCB315B344 CAPILARY AS Contact Notes: !D1.1XD2.5 L600   Contact
  • [42] SSA382C051 VALVE 4WAY In Stock Notes: REVERSING VALVE - 4 WAY VALVE -
  • [42-48] PCB382C040W VALVE ASSY Contact   Contact
  • [43-44] PCB321B688 PIPE (D) Contact   Contact
  • [44] SSA327B003 VALVE,SERVICE In Stock Substitute: ZZ60096
  • [45-46] PCB321B691 PIPE (S) Contact   Contact
  • [46] SSA327B003 VALVE,SERVICE In Stock Substitute: ZZ60096
  • [47] PCB116A318 BRACKET(S,V Contact   Contact
  • [48] SSA381A715D VALVE SERVI In Stock Notes: GAS, GAS
  • [49-50] PCB321C349 PIPE,DISCHA Contact   Contact
  • [50] SSA532A032CF SWITCH H P In Stock Notes: 63H1-1,2, 63H1 Show Image
  • [51-52] PCB321C348 PIPE,DISCHA Contact   Contact
  • [52] SSA532A032CF SWITCH H P In Stock Notes: 63H1-1,2, 63H1 Show Image
  • [53-55] PCB321C352 PIPE ASSY Contact   Contact
  • [54] SSA385A035 VALVE CHECK Contact   Contact
  • [55] SSA532A032HC SWITCH Out of Stock Notes: 63H2, 63H2
  • [56-57] PCB321B719B PIPE Contact   Contact
  • [57] PCB315B303 CAPILA,ASSY Contact Notes: !D2.0XD3.2 L300   Contact
  • [58] SSA357A010G STRAINER Contact   Contact
  • [58-59] PCB315B298 CAPILA,ASSY Contact   Contact
  • [59] PCB315B305A CAPILARY AS Contact Notes: !D1.2XD2.5 L500   Contact
  • [60] SSA357A010G STRAINER Contact   Contact
  • [60-61] PCB315B299 CAPILA,ASSY Contact   Contact
  • [61] PCB315B305A CAPILARY AS Contact Notes: !D1.2XD2.5 L500   Contact
  • [62] SSA382A088 VALVE(2WAY) In Stock Notes: SV1, SV1 Show Image
  • [62-63] PCB382A088 VALVE ASSY(2WAY) Contact   Contact
  • [63] PCB315B304 CAPILARY AS Contact Notes: !D1.6XD3.2 L500   Contact
  • [64] SSA381A035D VALVE SERVI Contact Notes: LIQUID   Contact
  • [64-65] PCB381A038D VALVE,SERVI Contact   Contact
  • [65] SSA357A002B STRAINER Contact   Contact
  • [66-67] PCB315B300A CAP 2.4X300 Contact Notes: !D2.4XD4.0 L300   Contact
  • [67] PCB315B437 CAPILARY AS Contact Notes: !D2.4XD4.0 L300   Contact
  • [68] SSA382A148 VALVE 2WAY Contact Notes: SV3, SV3   Contact
  • [68-69] PCB381A044 VALVE SERVI Contact   Contact
  • [69] SSA381A034N VALVE SERVICE Contact   Contact
  • [70] PCB382F065N COIL,SOLENO Contact   Contact
  • [71] PCB382F065R COIL,SOLENO Contact   Contact
  • [72] PCB382F065S COIL,SOLENO Contact   Contact
  • [73] PCB382F065T COIL ASSY,SOLENOID Contact Notes: FOR SV3   Contact
SKU: FDCJ280HKXE2-K HEAT EXCH. ASSY Category:
