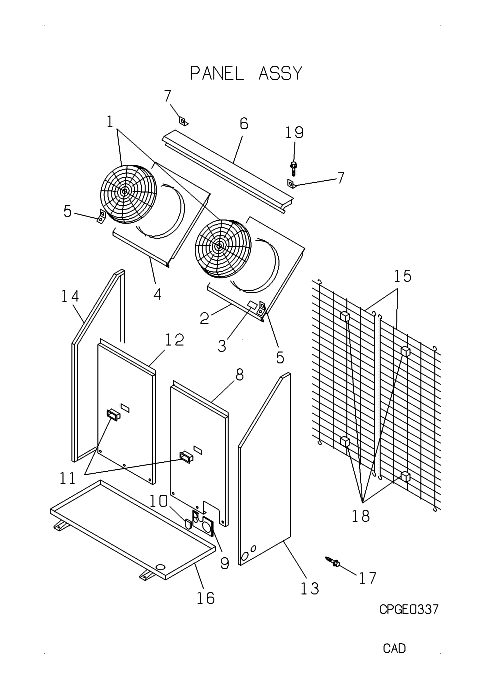

FDCJ225HKXE2DKT PANEL ASSY

FDCJ225HKXE2DKT PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCB131A012
GUARD FAN
Notes: GUARD,FAN
[2-3] Contact
PCB433A022
BELLMOUTH
Contact
Notes: BELLMOUTH, RIGHT
[3] In Stock
RCG011H004A
LABEL,NOTIC
Notes: LABEL,NOTICE Show Image
RCG011H004A
[4] Out of Stock
PCB433A021
BELLMOUTH
Notes: BELLMOUTH
[5] Out of Stock
PCB116A046F
BRACKET SUS
Notes: BRACKET
[6] Contact
PCB124A019
TOP PANEL
Contact
Notes: PANEL,TOP
[7] Out of Stock
PCB116A046D
BRACKET SUS
Notes: BRACKET
[8] Out of Stock
PCB122A056
PANEL FRONT
Notes: PANEL,FRONT
[9-10] Contact
PCB142A253F
COVER
Contact
Notes: COVER
[10] Contact
SSA947B014A
GROMMET
Contact
Notes: GROMMET
[11] Out of Stock
SSA944B002F
HANDLE
Notes: HANDLE
[12] Contact
PCB122A056F
PANEL FRONT
Contact
Notes: PANEL,FRONT
[13] Contact
PCB123A065
SIDE PANEL
Contact
Notes: PANEL ASSY,SIDE(R)
[14] Out of Stock
PCB123A066
SIDE PANEL
Notes: PANEL,ASSY,SIDE(L)
[15] Out of Stock
PCB131A011
GUARD FIN
Notes: GUARD,FIN
[16] Contact
PCB111A050A
BASE ASSY
Contact
Notes: BASE ASSY
[17] Contact
SSA913D012A
SCREW 5/14
Contact
Notes: SCREW,TAP & WASHER, 1pc ONLY
[18] Contact
PCA941G002A
CUSHION RU
Contact
Notes: CUSHION,RUBBER
[19] Contact
SSA911D207CA
BOLT 8X16SU
Contact
Notes: BOLT & WASHER,CRS
SKU: FDCJ225HKXE2DKT PANEL ASSY Category:
