FDCJ224HKXRE2A HEAT EXCH. ASSY

FDCJ224HKXRE2A HEAT EXCH. ASSY

Available Parts

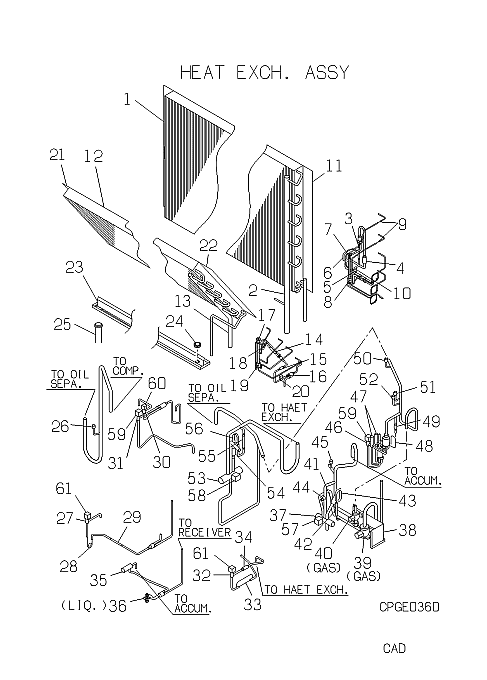

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB311A010N HEAT EX,AIR Contact   Contact
  • [1-11] PCB301A029D HEAT EX,AIR Contact Notes: REAR   Contact
  • [2] PCB315D026J HEADER ASSY,GAS(R) Contact   Contact
  • [3] SSA385A052 VALVE,CHECK In Stock Show Image
  • [3-9] PCB304A041A PIPING ASSY Contact   Contact
  • [4] SSA357A005B STRAINER In Stock Show Image
  • [5] SSA382A089 VALVE 2WAY Contact   Contact
  • [6] P210V11X600 CAPILLARY Contact Substitute: P210V11A100 Notes: !D1.1XD2.5 L600   Contact
  • [7] SSA387A053 EXP VALVE Contact   Contact
  • [8] SSA315A250D DISTRIBUTOR Contact   Contact
  • [8-9] PCB315A006A DISTRIBUTOR Contact   Contact
  • [9] SSA315B009BA CAPILLARY T Contact Substitute: P210V26A000 Notes: !D2.6XD4.0 L100   Contact
  • [10] PCB382F018C COIL,SOLENO Contact Notes: FOR SVL   Contact
  • [11] PCB141A010 PLTAE,BAFFLE Contact Notes: RIGHT, RIGHT   Contact
  • [12] PCB311A010G HEAT EX,AIR Contact   Contact
  • [12-22] PCB301A028B HEAT EX,AIR Contact Notes: FRONT   Contact
  • [13] PCB315D027C HEADER ASSY,GAS(F) Contact   Contact
  • [14] SSA385A052 VALVE,CHECK In Stock Show Image
  • [14-19] PCB304A040A PIPING ASSY Contact   Contact
  • [15] SSA357A005B STRAINER In Stock Show Image
  • [16] SSA382A089 VALVE 2WAY Contact   Contact
  • [17] SSA387A053 EXP VALVE Contact   Contact
  • [18] P210V11X600 CAPILLARY Contact Substitute: P210V11A100 Notes: !D1.1XD2.5 L600   Contact
  • [19] SSA315A250 DISTRIBUTOR Contact   Contact
  • [20] PCB382F018B COIL,SOLENO Contact Notes: FOR SVS   Contact
  • [21] PCB141A011 BAFLF PLATE Contact Notes: LEFT   Contact
  • [22] PCB141A011A BAFLF PLATE Contact Notes: RIGHT   Contact
  • [23-24] PCB454A002G PAN,DRAIN Contact   Contact
  • [24] SSA947A031C GROMMET Contact Notes: D35   Contact
  • [25] PCB423B001A HOSE DRAIN Contact   Contact
  • [26] SSA532A032CF SWITCH H P In Stock Notes: 63H1-1,2, 63H1 Show Image
  • [27] SSA382A070 VALVE 2WAY In Stock Notes: DOES NOT COME WITH STRAINER Show Image
  • [27-29] PCB382A037 VALVE,2WA A Contact   Contact
  • [28] P210V35X400 CAPILLARY Contact Notes: !D3.5XD5.0 L400   Contact
  • [29] SSA385A052 VALVE,CHECK In Stock Show Image
  • [30] SSA382A070 VALVE 2WAY In Stock Notes: DOES NOT COME WITH STRAINER Show Image
  • [31] SSA382A099 VALVE In Stock
  • [32] SSA382A070 VALVE 2WAY In Stock Notes: DOES NOT COME WITH STRAINER Show Image
  • [32-34] PCB382A036 VALVE,2WA A Contact   Contact
  • [33] PCB315B104 CAPILLARY ASSY Contact Notes: !D1.6XD3.2 L500   Contact
  • [34] SSA357A005B STRAINER In Stock Show Image
  • [35] SSA383D012H VALVE,DPR Contact   Contact
  • [36] SSA381A035H VALVE SERVI Contact Notes: LIQ. LINE   Contact
  • [37] SSA382C028 VALVE 4WAY In Stock Notes: 20SS Show Image
  • [38] PCB116A130 BRACKET(S,V Contact   Contact
  • [39] SSA381A708 VALVE SERV Contact Notes: GAS   Contact
  • [40] SSA381A711 VALVE SERVI Contact Substitute: SSA381A711A Notes: GAS(DISCHARGE)   Contact
  • [41] SSA357A008A STRAINER Contact Substitute: ZZ60571A   Contact
  • [41-43] PCB321A589 PIPE(E) Contact   Contact
  • [42] SSA385A015 VALVE CHECK In Stock Show Image
  • [43] P210V18X400 CAPILLARY Contact Notes: !D1.8XD3.2 L400   Contact
  • [44] SSA327B001A VALVE.SERVC Contact Substitute: RB87026C   Contact
  • [45] PCB532B001 SWITCH LP Contact Notes: 63L   Contact
  • [46] SSA382A099 VALVE In Stock
  • [46-49] PCB382A042 VALVE,2WA A Contact   Contact
  • [47] SSA383D012B VALVE,DPR Contact   Contact
  • [48] P210V20X300 CAPILA,TUBE Contact Substitute: P210V20A500 Notes: !D2.0XD3.2 L300   Contact
  • [48-49] PCB315B109 CAPILLARY ASSY Contact   Contact
  • [49] SSA357A008A STRAINER Contact Substitute: ZZ60571A   Contact
  • [50] SSA532A056 SWITCH HP Contact Notes: 63H2   Contact
  • [51] PCB532A002 SWITCH HP Contact Notes: 63H3   Contact
  • [52] PCB532A002A SWITCH HP Contact Notes: 63H4   Contact
  • [53] SSA382C044 VALVE 4WAY In Stock Substitute: OUT OF PRODUCTION Notes: 20S Show Image
  • [54] SSA357A008A STRAINER Contact Substitute: ZZ60571A   Contact
  • [54-56] PCB321A590 PIPE(E) Contact   Contact
  • [55] SSA385A015 VALVE CHECK In Stock Show Image
  • [56] P210V18X400 CAPILLARY Contact Notes: !D1.8XD3.2 L400   Contact
  • [57] PCB382F015B COIL SOLENO In Stock Notes: 20SS Show Image
  • [58] PCB382F015C COIL SOLENO In Stock Notes: 20 SL, 20SL Show Image
  • [59] SSA382F100M COIL SOLENO In Stock Notes: 20VU,SV3, 20VU,SV3 Show Image
  • [60] SSA382F147A COILSOLENO VALVE In Stock Notes: SV1,2, 20VF Show Image
  • [61] SSA382F147A COILSOLENO VALVE In Stock Notes: SV1,2, SV1,2 Show Image
SKU: FDCJ224HKXRE2A HEAT EXCH. ASSY Category:
