FDCJ224HKXE2DKB HEAT EXCH. ASSY

FDCJ224HKXE2DKB HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

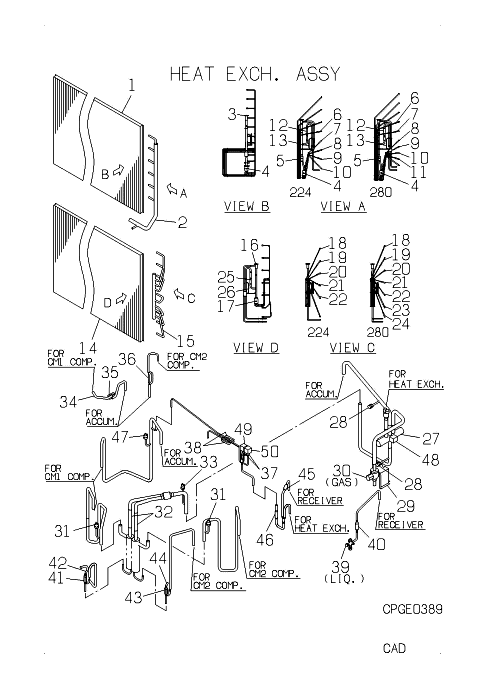

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PCB311A024AA

HEAT EXCH(A

Contact

Notes: HEAT EXCH(AIR)

[1-13] Contact

PCB301A082B

HEAT EXCH A

Contact

Notes: HEAT EXCH ASSY(AIR

[2] Contact

PCB315D115

HEADER ASSY,GAS

Contact

Notes: HEADER ASSY,GAS

[3] Contact

SSA387A090

EXP

Contact

Notes: VALVE,EXPANSION

[3-13] Contact

PCB387F027

EXP

Contact

Notes: VALVE ASSY,EXPANSI

[4] Contact

SSA315A250

DISTRIBUTOR

Contact

Notes: DISTRIBUTOR

[4-10] Contact

PCB315A075

DISTRI ASSY

Contact

Notes: DISTRIBUTOR ASSY

[5] Contact

SSA315A250C

DISTRIBUTOR

Contact

Notes: DISTRIBUTOR

[6] Contact

PCB315B512

CAPILARY AS

Contact

Substitute: PCB315A075 Notes: CAPILLARY

[7] Contact

PCB315B513

CAPILARY AS

Contact

Substitute: PCB315A075 Notes: CAPILLARY

[8] Contact

PCB315B514

CAPILARY AS

Contact

Substitute: PCB315A075 Notes: CAPILLARY

[9] Contact

PCB315B515

CAPILARY AS

Contact

Substitute: PCB315A075 Notes: CAPILLARY

[10] Contact

PCB315B516

CAPILARY AS

Contact

Substitute: PCB315A075 Notes: CAPILLARY

[12] In Stock

SSA385A052

VALVE,CHECK

Notes: VALVE,CHECK Show Image

SSA385A052

[13] Contact

PCB315B344

CAPILARY AS

Contact

Notes: CAPILLARY

[14] Contact

PCB311A024AB

HEAT EXCH(A

Contact

Notes: HEAT EXCH(AIR)

[14-26] Contact

PCB301A083B

HEAT EXCH A

Contact

Notes: HEAT EXCH ASSY(AIR

[15] Contact

PCB315D116

HEADER ASSY,GAS

Contact

Notes: HEADER ASSY,GAS

[16] Contact

SSA387A090

EXP

Contact

Notes: VALVE,EXPANSION

[16-26] Contact

PCB387F028

EXP

Contact

Notes: VALVE ASSY,EXPANSI

[17] Contact

SSA315A251

DISTRIBUTOR

Contact

Notes: DISTRIBUTOR

[17-22] Contact

PCB315A076

DISTRI ASSY

Contact

Notes: DISTRIBUTOR ASSY

[18] Contact

P210V22X200

CAPILLARY

Contact

Notes: CAPILLARY, !D2.2XD3.2 L200

[19] Contact

PCB315B517

CAPILARY AS

Contact

Substitute: PCB315A076 Notes: CAPILLARY

[20] Contact

PCB315B518

CAPILARY AS

Contact

Substitute: PCB315A076 Notes: CAPILLARY

[21] Contact

PCB315B519

CAPILARY AS

Contact

Substitute: PCB315A076 Notes: CAPILLARY

[22] Contact

PCB315B520

CAPILARY AS

Contact

Substitute: PCB315A076 Notes: CAPILLARY

[25] In Stock

SSA385A052

VALVE,CHECK

Notes: VALVE,CHECK Show Image

SSA385A052

[26] Contact

PCB315B344

CAPILARY AS

Contact

Notes: CAPILLARY

[27] In Stock

SSA382C075

VALVE 4WAY

Notes: VALVE,S(4WAY), 20s - 4 way valve

[28] In Stock

SSA327B003

VALVE,SERVICE

Notes: VALVE,SERVICE Show Image

SSA327B003

[29] Contact

PCB116A318

BRACKET(S,V

Contact

Notes: BRACKET(S,V)

[30] Out of Stock

SSA381A715C

VALVE SERVI

Notes: VALVE,SERVICE

[31] In Stock

SSA532A032CF

SWITCH H P

Notes: SWITCH,HP, 63H1-1,2 Show Image

SSA532A032CF

[32] Out of Stock

SSA385A035

VALVE CHECK

Notes: VALVE,CHECK

[33] Out of Stock

SSA532A032HC

SWITCH

Notes: SWITCH,HP, 63H2

[34-35] Contact

PCB321D417

PIPE(REF)

Contact

Notes: PIPE(REF)

[35] Contact

PCB315B303

CAPILA,ASSY

Contact

Notes: CAPILLARY

[36] Contact

PCB315B437

CAPILARY AS

Contact

Notes: CAPILLARY

[37] In Stock

SSA382A088

VALVE(2WAY)

Notes: VALVE(2WAY), SV1 Show Image

SSA382A088

[37-38] Out of Stock

PCB382A088

VALVE ASSY(2WAY)

Notes: VALVE ASSY(2WAY)

[38] Contact

PCB315B304

CAPILARY AS

Contact

Notes: CAPILLARY

[39] Contact

SSA381A035D

VALVE SERVI

Contact

Notes: VALVE,SERVICE, LIQUID

[40] Contact

SSA357A002B

STRAINER

Contact

Notes: STRAINER

[41] Contact

SSA357A010G

STRAINER

Contact

Notes: STRAINER

[41-42] Out of Stock

PCB315B568B

CAPILLARY A

Notes: CAPILLARY ASSY(1)

[42] Contact

PCB315B305A

CAPILARY AS

Contact

Notes: CAPILLARY

[43] Contact

SSA357A010G

STRAINER

Contact

Notes: STRAINER

[43-44] Out of Stock

PCB315B628

CAPILLARY A

Notes: CAPILLARY ASSY(2)

[44] Contact

PCB315B305A

CAPILARY AS

Contact

Notes: CAPILLARY

[45] In Stock

SSA357A007A

STRAINER

Notes: STRAINER Show Image

SSA357A007A

[46] In Stock

SSA357A059B

STRAINER

Notes: STRAINER

[47] Contact

SSA532B024A

SWITCH LP

Contact

Notes: SWITCH,LP

[48] Out of Stock

PCB382F065N

COIL,SOLENO

Notes: COIL ASSY,SOLENOID

[49] Out of Stock

PCB382F065R

COIL,SOLENO

Notes: COIL ASSY,SOLENOID

[50] Out of Stock

PCB382F065S

COIL,SOLENO

Notes: COIL ASSY,SOLENOID

SKU: FDCJ224HKXE2DKB HEAT EXCH. ASSY Category: Uncategorised
