FDCJ224HKXE2D-K FAN AND COMPRESSOR

Name: FDCJ224HKXE2D-K FAN AND COMPRESSOR
SKU: FDCJ224HKXE2D-K FAN AND COMPRESSOR
Availability: InStock

FDCJ224HKXE2D-K FAN AND COMPRESSOR

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

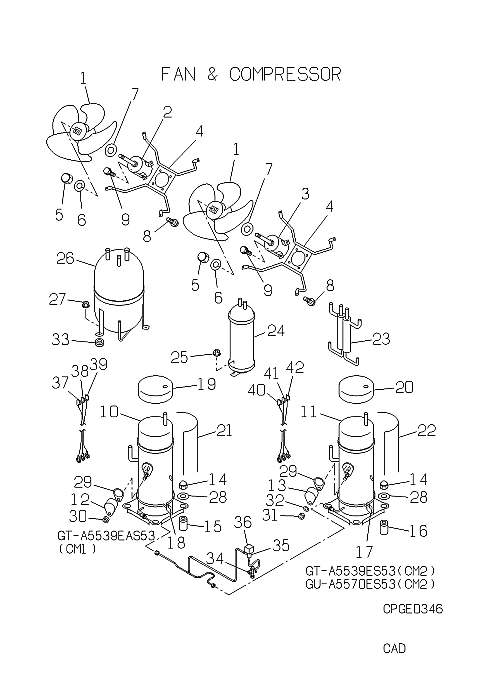

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA431B206

FAN PROPELLER

[2] In Stock

SSA511A611R

FAN MOTOR

Notes: LEFT D:6202ZZC3 B:6201ZZC3

[3] In Stock

SSA511A611S

MOTOR,FAN

Notes: FM02***KEEP PLUG FROM OLD MOTOR*** - RIGHT D:6202ZZC3 B:6201ZZC3

[4] Out of Stock

PCB116A372

MOTOR BRAKE

[5] In Stock

SSA914H014C

NUTCAP SUS

Notes: 1pc Show Image

[6] In Stock

W220G12

WASHER SUS

Notes: 1pc ONLY

[7] In Stock

W200G14

WASHER

Notes: 1pc ONLY

[8] In Stock

SSA911D207BA

BOLT&WASHER

Notes: M6X16

[9] In Stock

SSA911D207BB

BOLT&WA

Notes: M6X25

[10] In Stock

AGT201A311SM

GTA5539EAS5

Notes: LEFT GT-A5539EAS53, ***COMPRESSORS CANNOT BE RETURNED***

[14] In Stock

SSA914H014A

NUT

Notes: 1pc Show Image

[15] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

[16] Contact

SSA941C158

CUSHION RUB

Contact

[17] Out of Stock

PCA541B011S

HEATER,CRAN

[18] In Stock

PCA541B011N

HEATER,CRAN

Show Image

[19] Out of Stock

PCB151D064

COMP INSULA

[20] Out of Stock

PCB151D064

COMP INSULA

[21] Out of Stock

PCB151D065

COMP INSUL,

[22] Contact

PCB151D059A

INSULATION,

Contact

[23] Contact

PCB354A014

SEPARATOR ASSY,OIL

Contact

[24] In Stock

SSA352A078A

RECEIVER ASSY

[25] In Stock

SSA914C005B

NUT FLANGE

Notes: 1pc, FOR RECEIVER

[26] Contact

SSA351A186

ACCLMULATOR

Contact

[27] Contact

SSA914C005C

NUT

Contact

Notes: 1pc, FOR ACCUMULATOR

[28] In Stock

SSA915H039

WASHER

Notes: 1pc ONLY Show Image

[30] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[31] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[33] In Stock

SSA941B003

CUSHION RUB

Notes: FOR ACCUMULATOR

[34] Contact

SSA381A034N

VALVE SERVICE

Contact

[34-35] Contact

PCB381A061

VALVE ASSY,

Contact

[35] Contact

SSA382A148

VALVE 2WAY

Contact

Notes: SV3

[36] Contact

PCB382F065T

COIL ASSY,SOLENOID

Contact

Notes: FOR SV3

[37] Out of Stock

PCB504A175R

WIRING ASSY

Notes: !U

[38] Out of Stock

PCB504A175S

WIRING ASSY

Notes: !V

[39] Out of Stock

PCB504A175T

WIRING ASSY

Notes: !W

[40] Out of Stock

PCB504A175W

WIRING ASSY

Notes: !U

[41] Out of Stock

PCB504A175Y

WIRING ASSY

Notes: !V

[42] Out of Stock

PCB504A175Z

WIRING ASSY

Notes: !W
