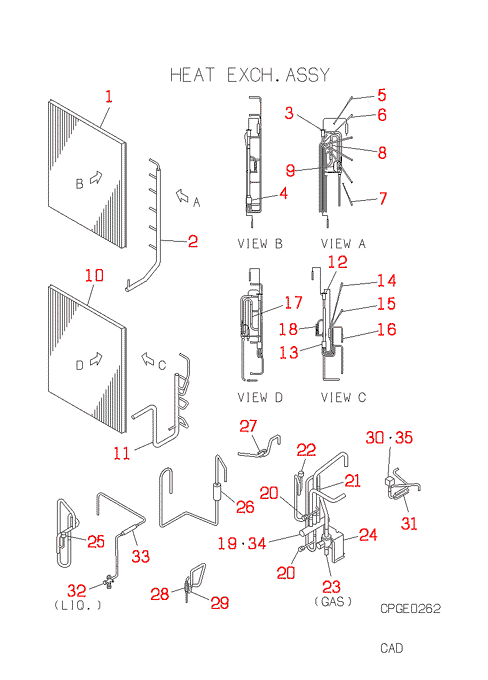

FDCJ140HKXE2B HEAT EXCH. ASSY

FDCJ140HKXE2B HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB311A023K
HEAT EXCH
Contact
[1-9] Out of Stock
PCB301A075M
HEAT EXCH
Substitute: OUT OF PRODUCTION Notes: UPPER, UPPER HEAT EXCHANGER
[2] Contact
PCB315D099
HEADER ASSY
Contact
[3] Contact
SSA387A089
EXP
Contact
[3-9] Contact
PCB387F017A
EXP
Contact
[4] Contact
SSA315A251
DISTRIBUTOR
Contact
[4-7] Contact
PCB315A067
DISTRIBUTOR
Contact
[5] Contact
P210V24X200
CAPILLARY
Contact
Notes: !D2.4XD4.0 L200
[6] Contact
P210V24X200
CAPILLARY
Contact
Notes: !D2.4XD4.0 L200
[7] Contact
P210V26X200
CAPILLARY
Contact
Notes: !D2.6XD4.0 L200
[8] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[9] Contact
PCB315B344
CAPILARY AS
Contact
Notes: !D1.1XD2.5 L600
[10] Contact
PCB311A023C
HEAT EXCH
Contact
[10-18] Out of Stock
PCB301A075A
HEAT EXCH
Substitute: OUT OF PRODUCTION Notes: LOWER, LOWER HEAT EXCHANGER
[11] Contact
PCB315D101
HEADER ASSY
Contact
[12] Contact
SSA387A089
EXP
Contact
[12-18] Contact
PCB387F018A
EXP
Contact
[13] Contact
SSA315A250
DISTRIBUTOR
Contact
[13-16] Contact
PCB315A068
DISTRIBUTOR
Contact
[14] Contact
P211V30X200
CAPILLARY
Contact
Notes: !D3.0XD4.0 L200
[15] Contact
PCB315B526
CAPILLARY
Contact
Notes: !D2.8XD4.0 L200
[16] Contact
PCB315B527
CAPILLARY
Contact
Notes: !D3.0XD4.0 L200
[17] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[18] Contact
PCB315B344A
CAPILARY AS
Contact
Notes: !D1.1XD2.5 L600
[19] Out of Stock
SSA382C044
VALVE 4WAY
Substitute: OUT OF PRODUCTION Notes: 20S Show Image
SSA382C044
[19-24] Out of Stock
SSA382C044
VALVE 4WAY
Substitute: OUT OF PRODUCTION Notes: 20S Show Image
SSA382C044
[20] In Stock
SSA327B003
VALVE,SERVICE
Show Image
SSA327B003
[21] Out of Stock
SSA385A035
VALVE CHECK
[22] Out of Stock
SSA532A032HC
SWITCH
Notes: 63H2
[23] Contact
SSA381A711
VALVE SERVI
Contact
Substitute: SSA381A711A Notes: GAS(DISCHARGE)
[24] Contact
PCB116A300
BRACKET(S,V
Contact
[25] In Stock
SSA532A032CF
SWITCH H P
Notes: 63H1, 63H1-1,2 Show Image
SSA532A032CF
[26] Contact
SSA325A001BF
MUFFLER
Contact
[27] Contact
PCB315B303
CAPILA,ASSY
Contact
Notes: !D2.0XD3.2 L300
[28] Contact
SSA357A010G
STRAINER
Contact
[28-29] Contact
PCB315B567
CAPILLARY A
Contact
[29] Contact
PCB315B421
CAPILARY AS
Contact
Notes: !D1.3XD2.5 L500
[30] In Stock
SSA382A088
VALVE(2WAY)
Notes: SV1 Show Image
SSA382A088
[30-31] Contact
PCB382A089
VALVE,2WAY
Contact
[31] Contact
PCB315B304
CAPILARY AS
Contact
Notes: !D1.6XD3.2 L500
[32] Contact
SSA381A034A
VALVE SERVI
Contact
Notes: LIQID
[33] Contact
SSA357A009
STRAINER
Contact
Substitute: RE66450
[34] Contact
PCB382F065M
COIL,SOLENO
Contact
Notes: 20S
[35] Contact
PCB382F065P
COIL,SOLENO
Contact
Notes: SV1
